Emission System

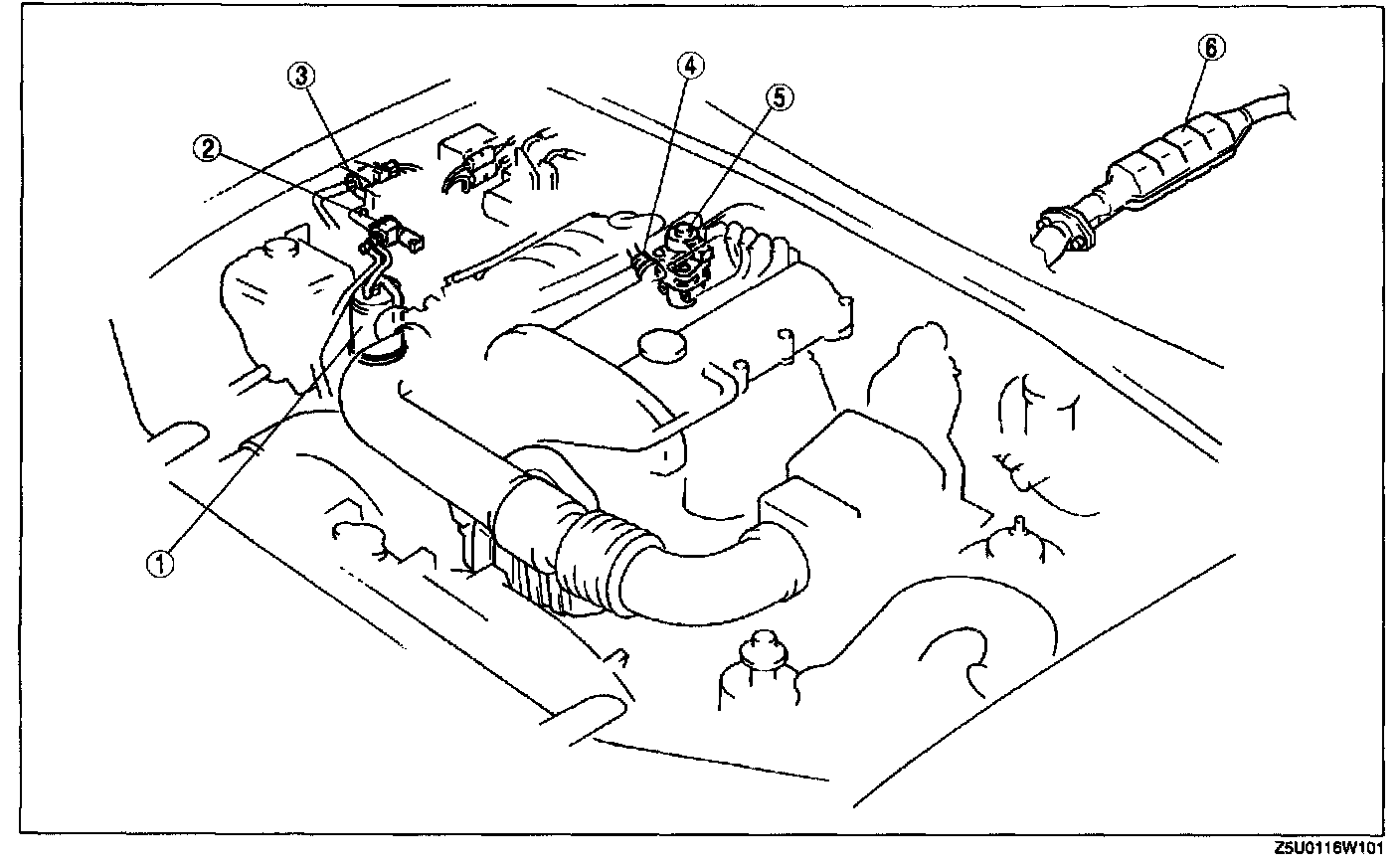

Emission System Location Index:




1. Catch tank
2. Purge solenoid valve
3. EGR boost sensor solenoid valve
4. PCV valve
5. EGR valve
6. TWC
