Evaporative Emissions System: Locations

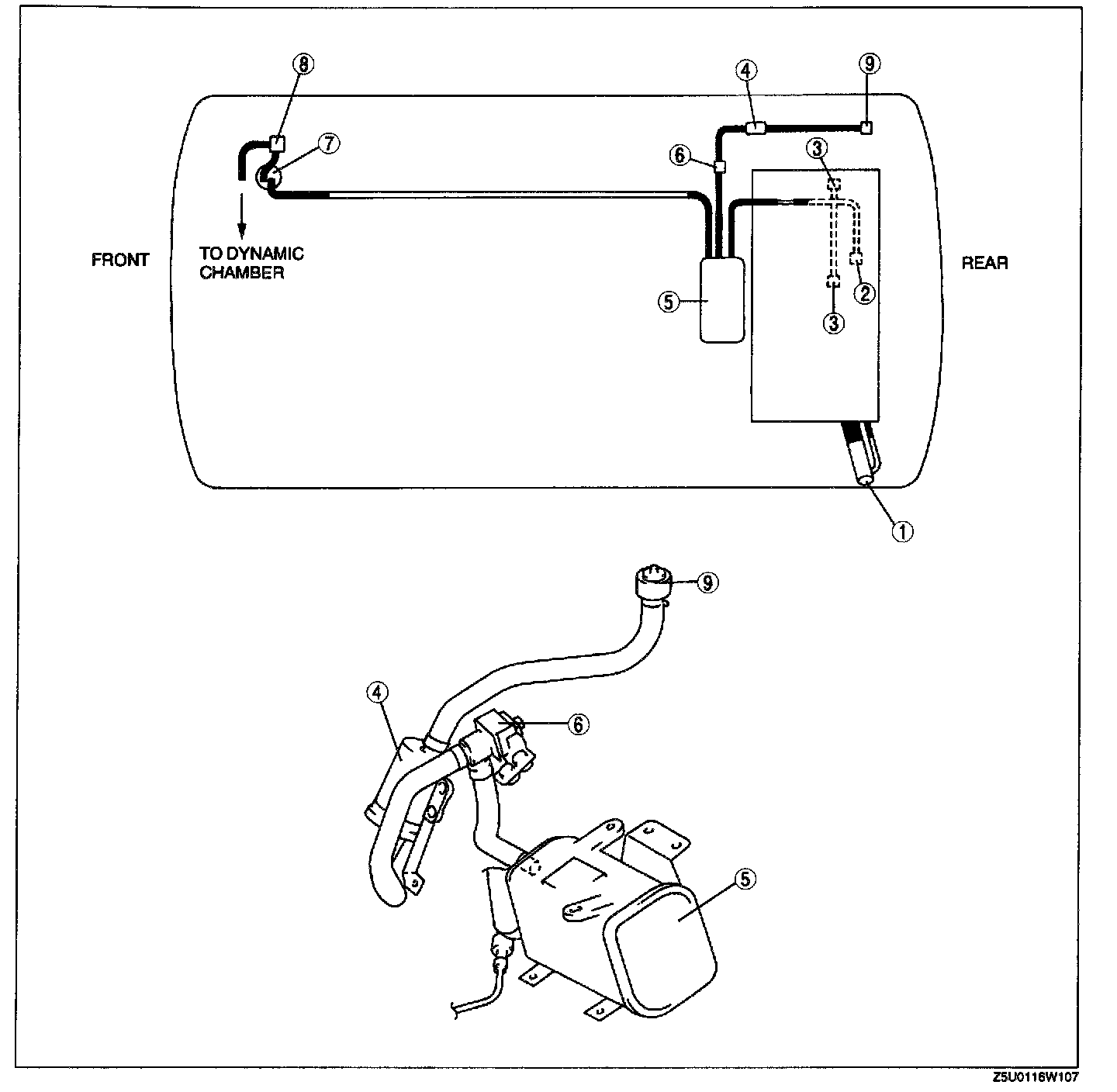

Evaporative Emission (EVAP) Control System Location Index:

1. Fuel-filter cap
2. Fuel shut-off valve
3. Rollover valve
4. Air filter
5. Charcoal canister
6. CDCV
7. Catch tank
8. Purge solenoid valve
9. Evaporative chamber
