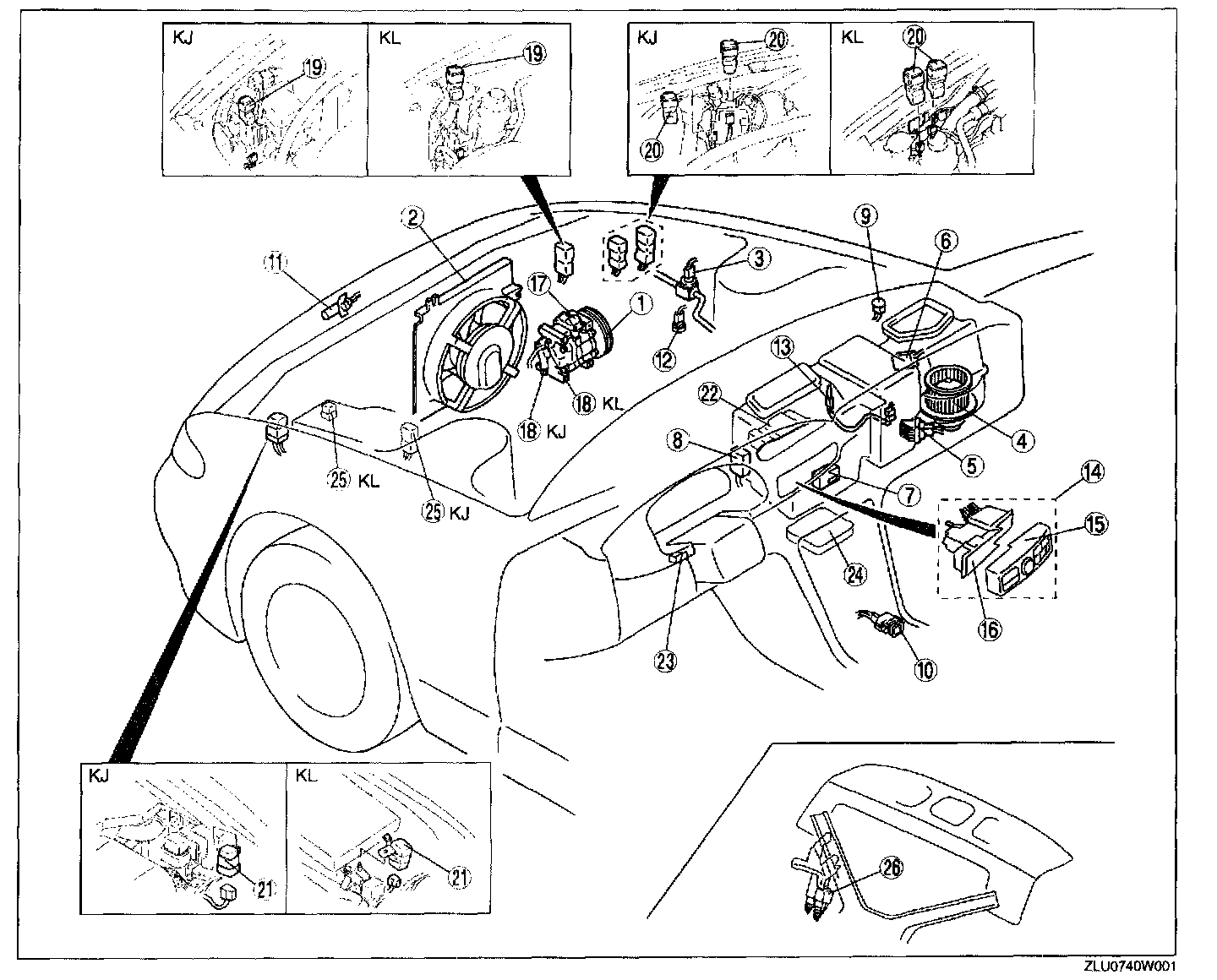

Control System Components

Control System:

1. Magnetic clutch
2. Condenser fan
3. Refrigerant pressure switch
4. Blower motor
5. Power MOS FET
6. Air intake actuator
7. Air mix actuator
8. Airflow mode actuator
9. Solar radiation sensor
10. Passenger compartment temperature sensor
11. Ambient temperature sensor
12. ECT sensor
13. Evaporator temperature sensor
14. Climate control component
15. Climate control unit
16. A/C amplifier
17. Thermal protector
18. Pressure relief valve
19. A/C relay
20. Condenser fan relay No.1 No.2
21. Blower relay
22. Information display
23. Panel light control switch
24. PCM
25. TNS relay
26. Rear defroster relay
