Hydraulic Control Assembly - Antilock Brakes: Service and Repair

ABS HYDRAULIC UNIT (HU)/CONTROL MODULE (CM) REMOVAL/INSTALLATION

Caution: Do not drop the ABS hydraulic unit (HU)/control module (CM). Replace it if it is subjected to an impact.

1. Remove the battery and battery tray.





2. Remove in the order indicated in the table.
3. Install in the reverse order of removal

Connector Removal Note

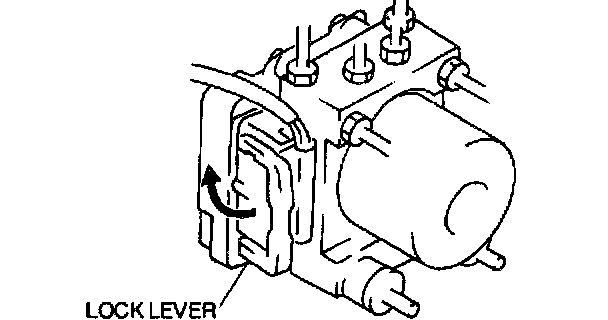

1. Pull the lock lever up and make it unlock.
2. Remove the connector.

ABS HU/CM Removal/Installation Note
1. When removing/installing the ABS HU/CM from/to the vehicle, attach a strip of protective tape on the ABS HU/CM connector to prevent brake fluid from entering.

Connector Installation Note

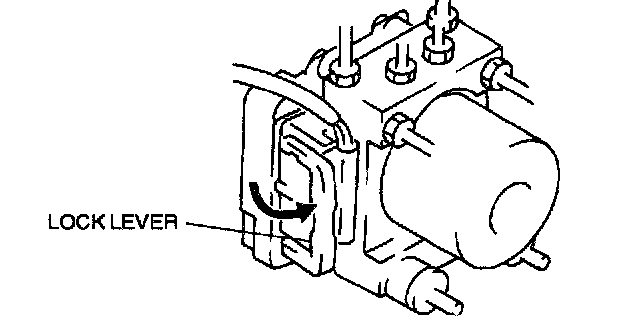

1. Verify that the lock lever of the harness connector is completely pulled up.
