6: Brake System Warning Light Stays on

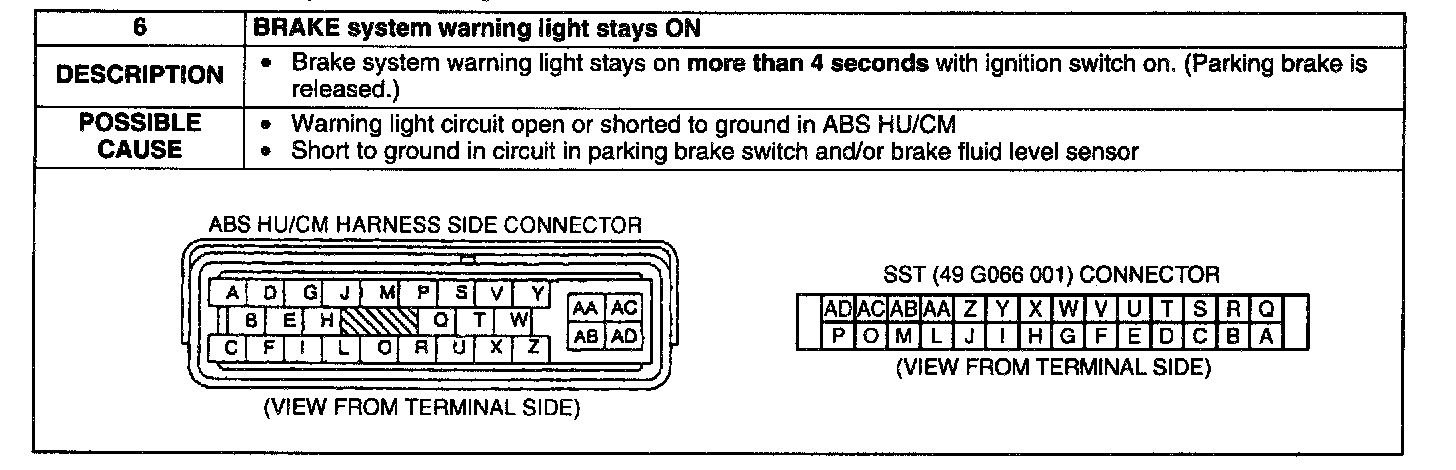

NO.6 BRAKE SYSTEM WARNING LIGHT STAYS ON





- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected corrective and undamaged.

Diagnostic Procedure





Step 1 - 6

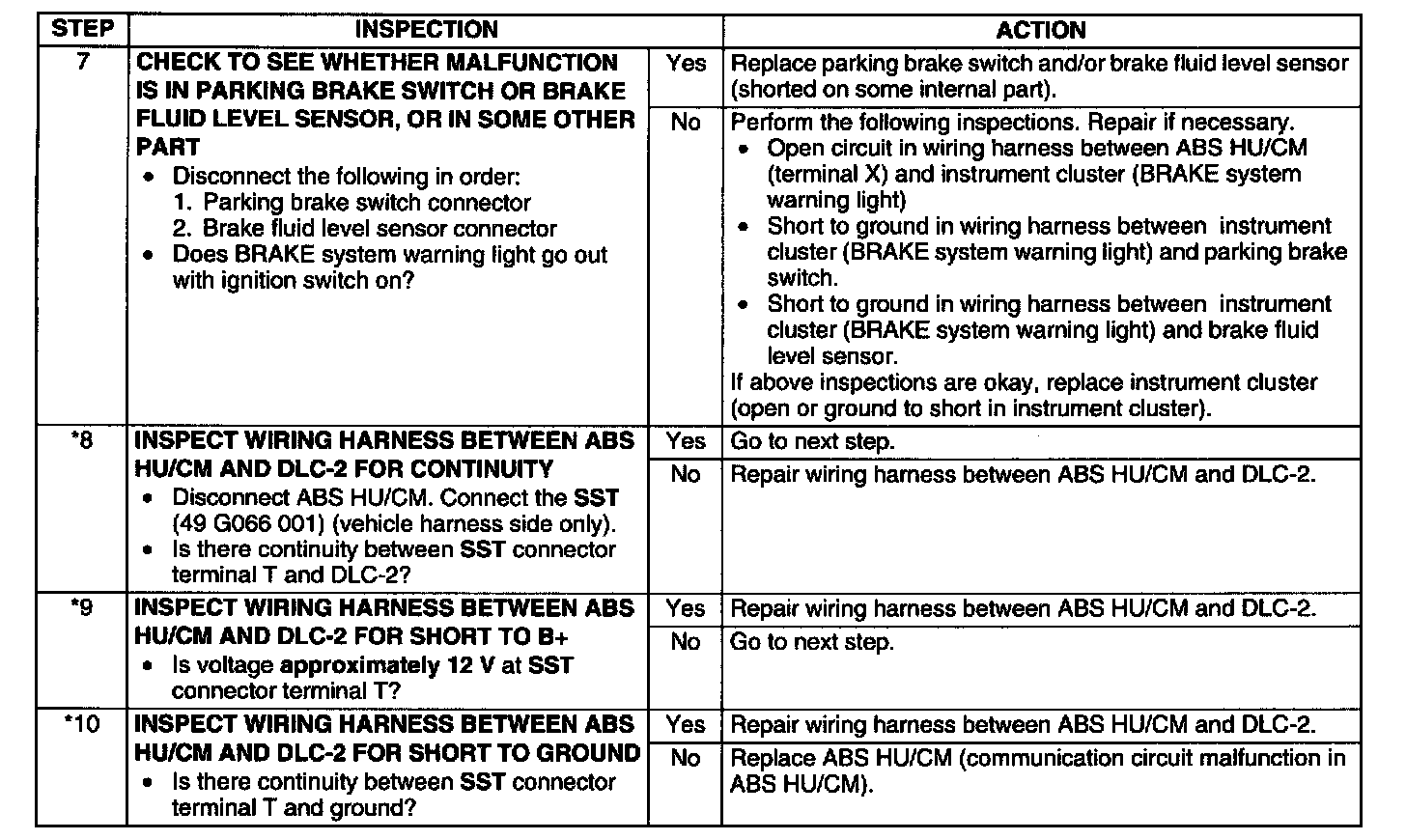

Step 7 - 10
