Center Mounted Brake Lamp: Service and Repair
HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATIONIn-Vehicle Type
1. Disconnect the negative battery cable.
2. Remove the rear package trim.

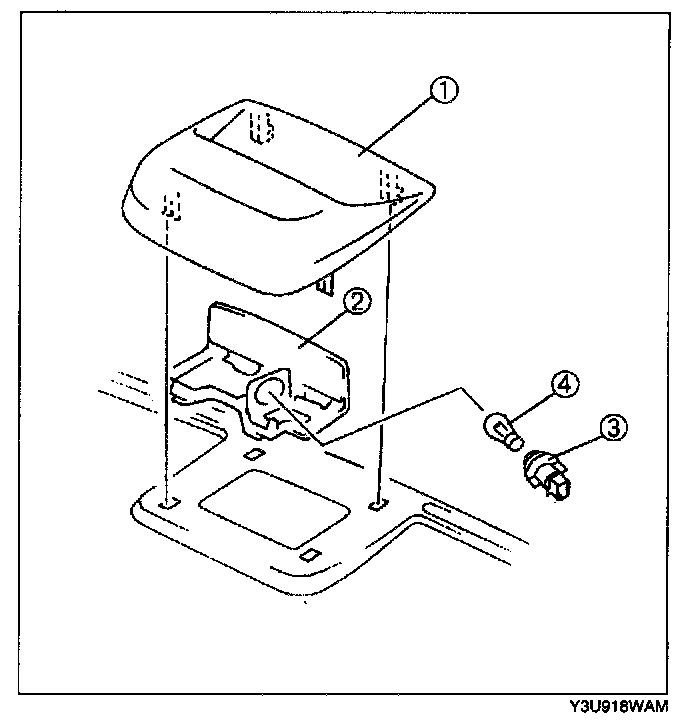

3. Remove in the order indicated below.
1. High-mount brake light
2. Lens
3. Socket
4. High-mount brake light bulb
4. Install in the reverse order of removal.
Rear Spoiler Type
1. Disconnect the negative battery cable.
2. Remove the rear spoiler.
3. Remove in the order indicated below.
1. Screw
2. High-mount brake light
4. Install in the reverse order of removal.
High-mount brake light removal note
1. Tie a string to the end of the connector of the high-mount brake light beforehand so that the connector can be passed easily through the rear spoiler during installation.
