Windshield Washer Motor: Service and Repair

REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the washer tank.

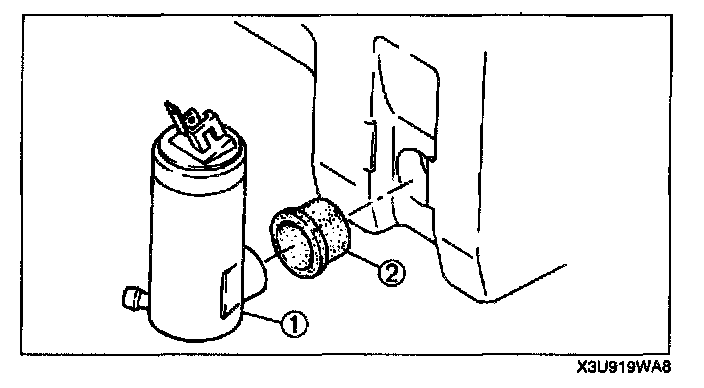

3. Remove in the order indicated below.
1. Windshield washer motor
2. Grommet

4. Install in the reverse order of removal.
