Wiper Motor: Service and Repair

WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the windshield wiper arm and blade.
3. Remove the cowl grille.
4. Pry off the connection between the windshield wiper motor and windshield wiper link.

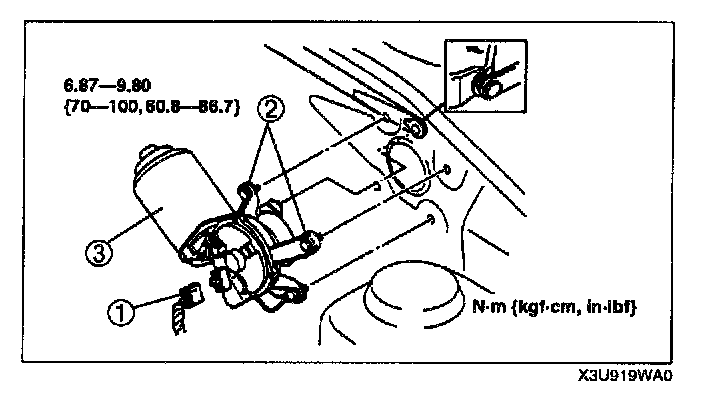

5. Remove in the order indicated below.
1. Connector
2. Bolt
3. Windshield wiper motor

6. Install in the reverse order of removal.
7. Adjust the windshield wiper arm and blade.
