Condenser Fan Motor: Testing and Inspection
INSPECTION1. Disconnect the condenser fan connector.

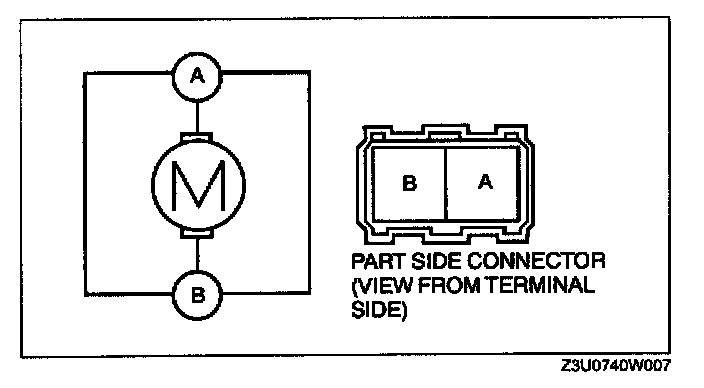

2. Connect B+ to terminal A and ground to terminal B of the condenser fan and verify its operation.
- If not as specified, replace the condenser fan.
1. Disconnect the condenser fan connector.
2. Connect B+ to terminal A and ground to terminal B of the condenser fan and verify its operation.
- If not as specified, replace the condenser fan.
