Windshield Washer Hose: Service and Repair

REMOVAL/INSTALLATION

1. Remove the bonnet insulator.
2. Partially peel off the right side mud guard.

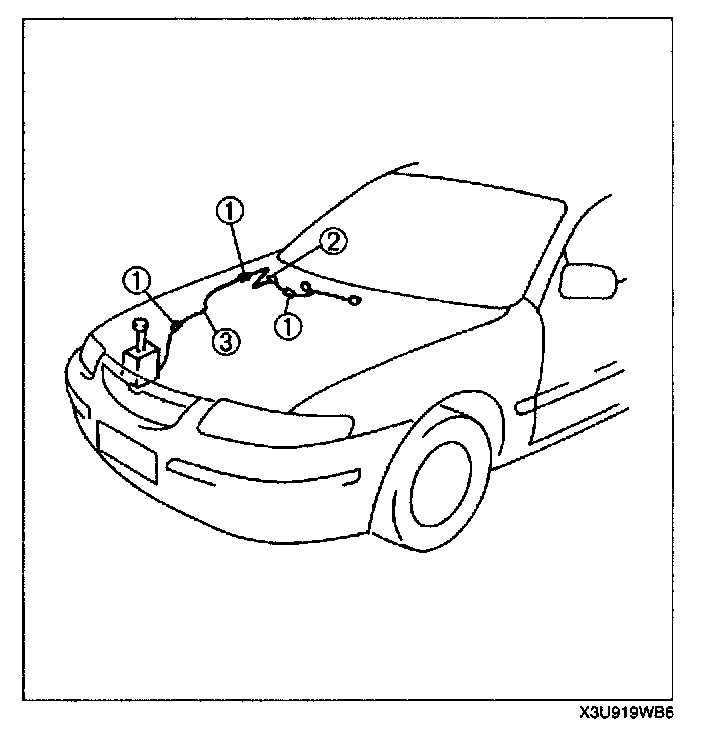

3. Remove in the order indicated below.
1. Clip
2. Joint pipe
3. Windshield washer hose

4. Install in the reverse order of removal.
