Cigarette Lighter

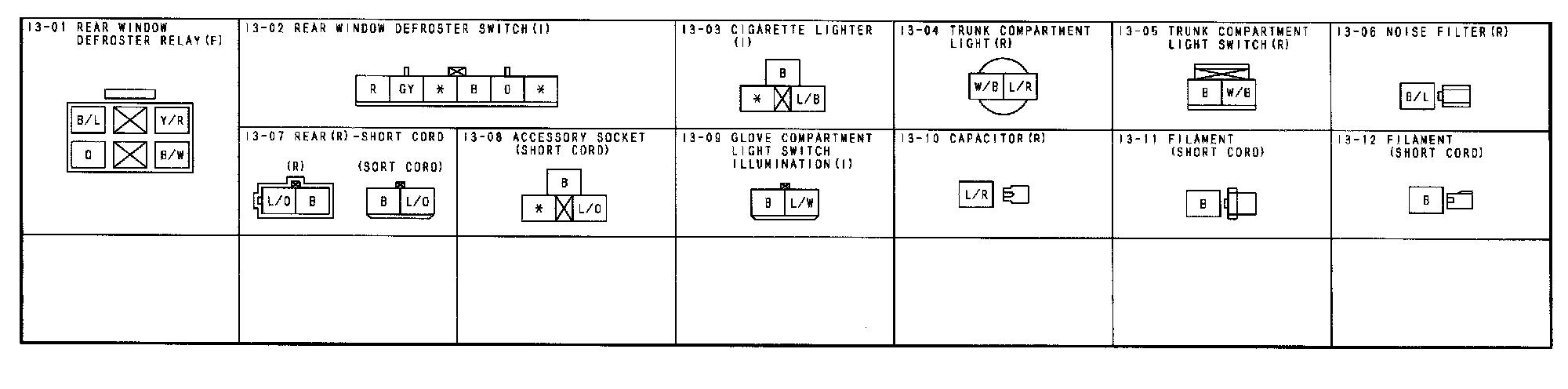

I-3 - Accessory Socket/Cigarette Lighter/Glove Compartment Light/Rear Window Defroster/Trunk Compartment Light Connectors:
