Compressor Clutch: Adjustments
MAGNETIC CLUTCH ADJUSTMENT1. Remove and set the A/C compressor on a level block. (See A/C COMPRESSOR REMOVAL/INSTALLATION.)
2. Turn on the magnetic dutch by connecting the battery positive voltage to the magnetic clutch connector terminal and the ground to the A/C compressor body.

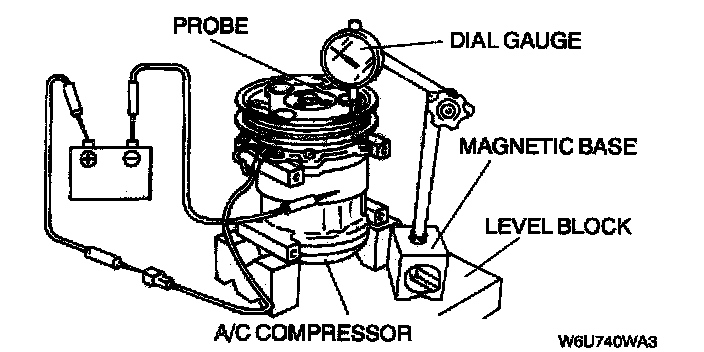

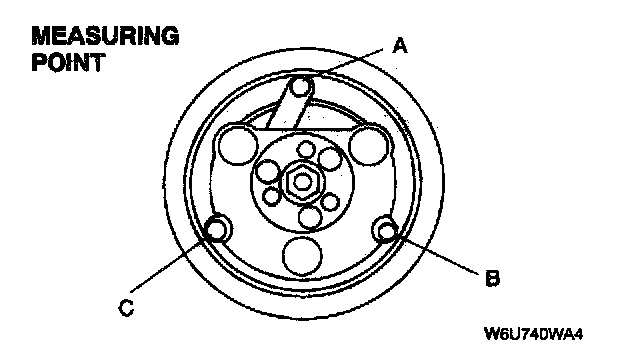

3. Fix a dial gauge on a magnetic base and set the probe onto measuring point A on the pressure plate surface.
4. Turn off the magnetic clutch by disconnecting the ground from the A/C compressor body, then measure the dial gauge readings.
5. Measure the clearance for point B and C on the pressure plate surface by repeating the above steps 2 through 4.

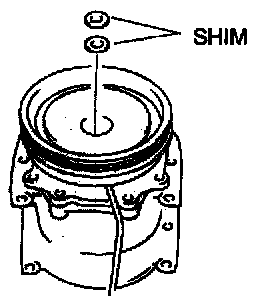

- If not within the specification, remove the pressure plate and adjust the clearance by changing the shim size or the number of shims. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY)
Clearance: 0.3 - 0.65 mm {0.014 - 0.025 in}
