Compressor Clutch: Service and Repair

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY

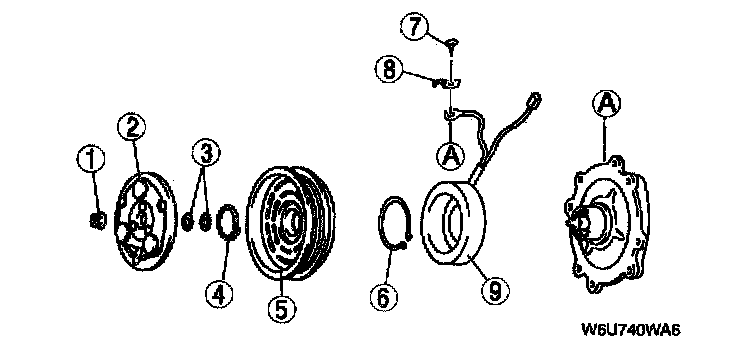

1. Disassemble in the order indicated below.
1. Nut (See Nut Removal/Installation Note)
2. Pressure plate
3. Shim
4. Snap ring
5. A/C compressor pulley. (See A/C Compressor Pulley Removal Note)
6. Snap ring
7. Screw
8. Clip
9. Stator

2. Assemble in the reverse order of disassembly.
3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)




Nut Removal/Installation Note

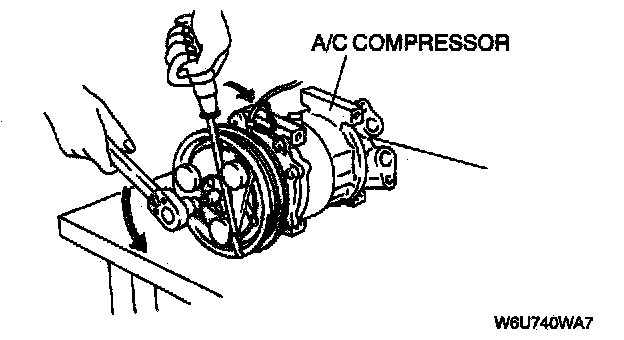

- When removing or installing the nut, hold the pressure plate in place as shown in the figure.

A/C Compressor Pulley Removal Note
- When removing the A/C compressor pulley, remove it using a puller.
