Basic System
Basic System

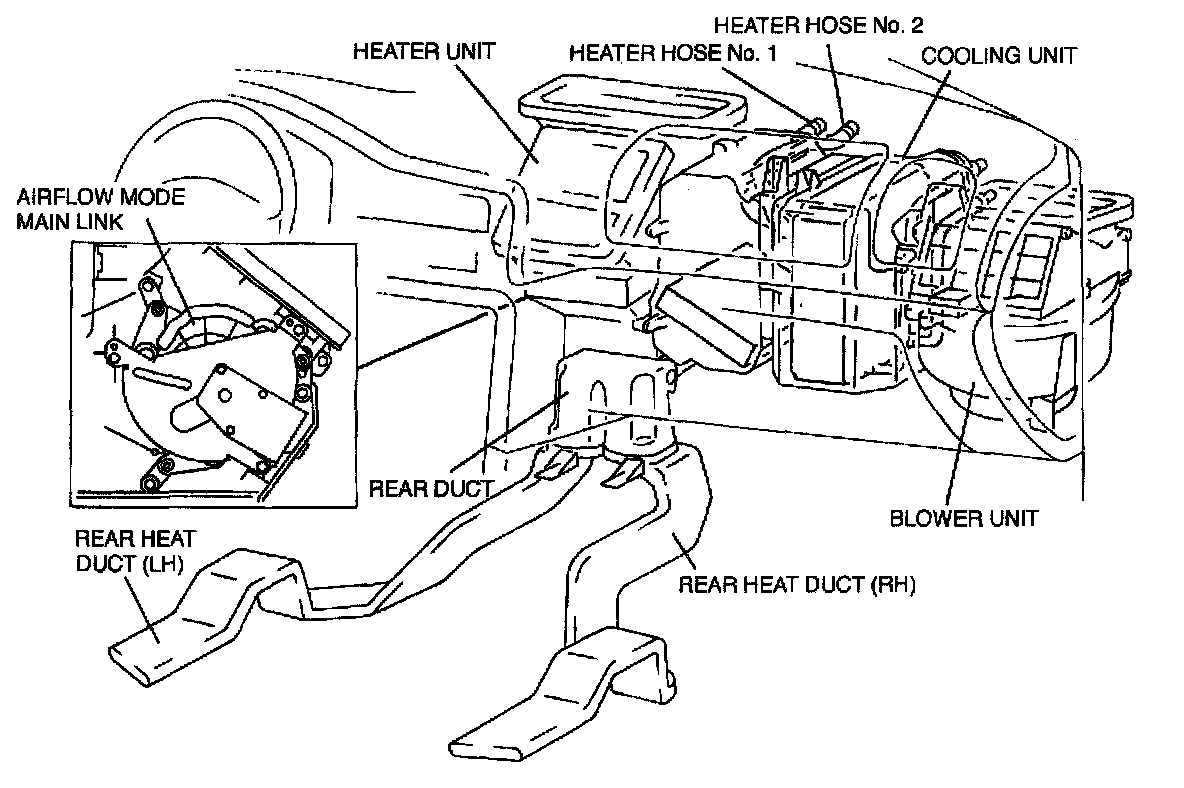

Basic System Structural View - Passenger Compartment:

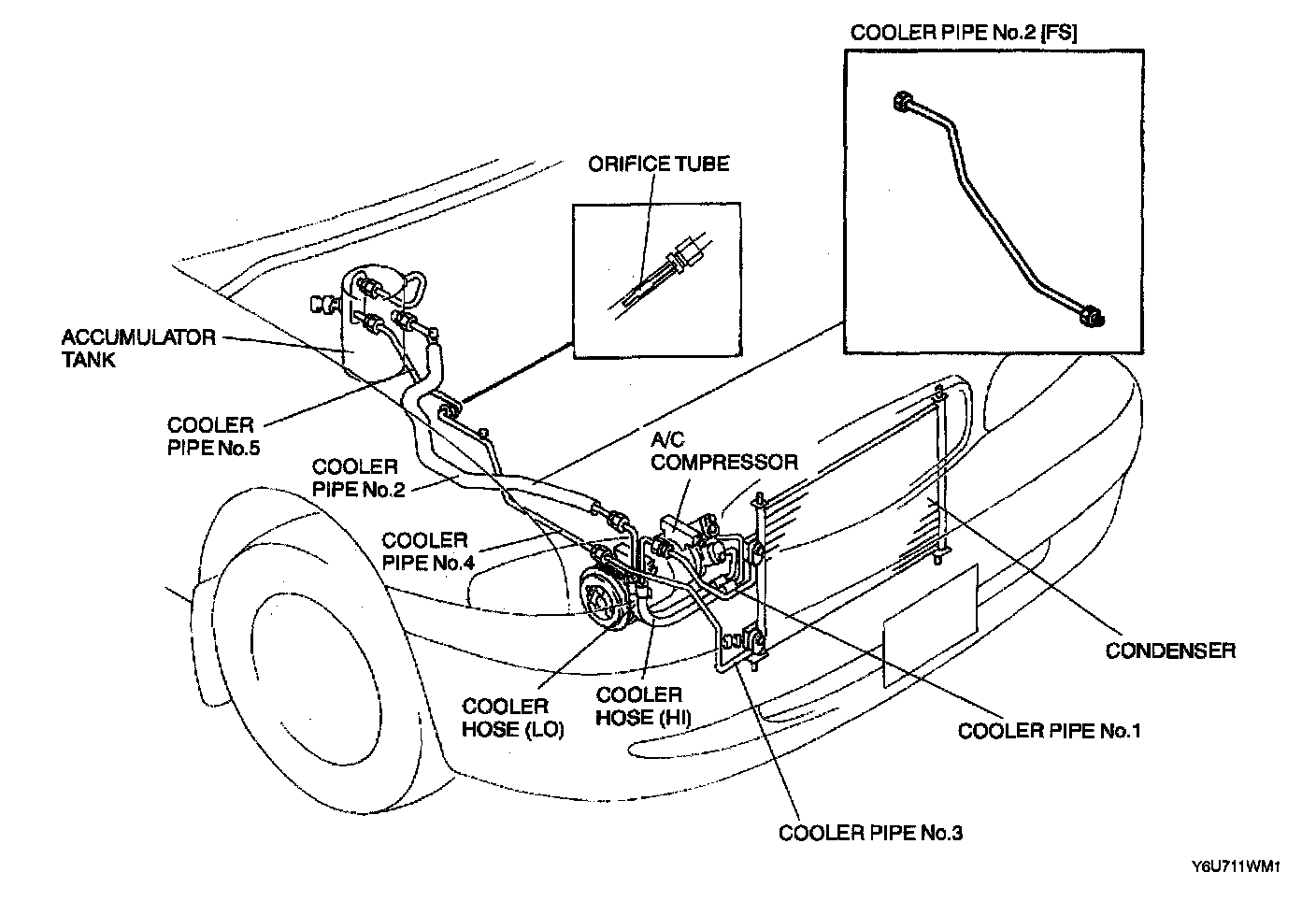

Basic System Structural View - Engine Room:

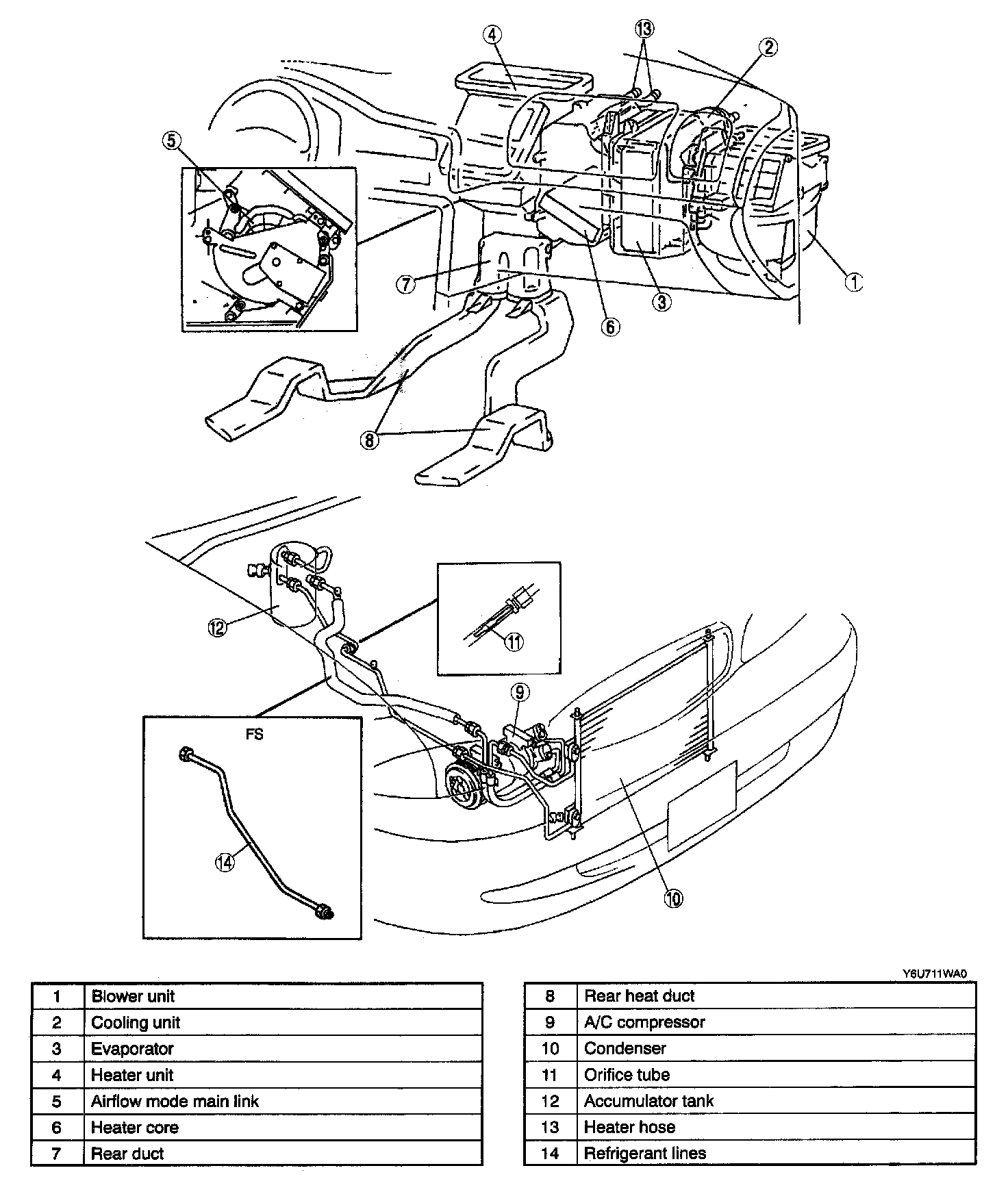

Basic System Structural View:
