Locations
>>
Component Locations
Component Locations

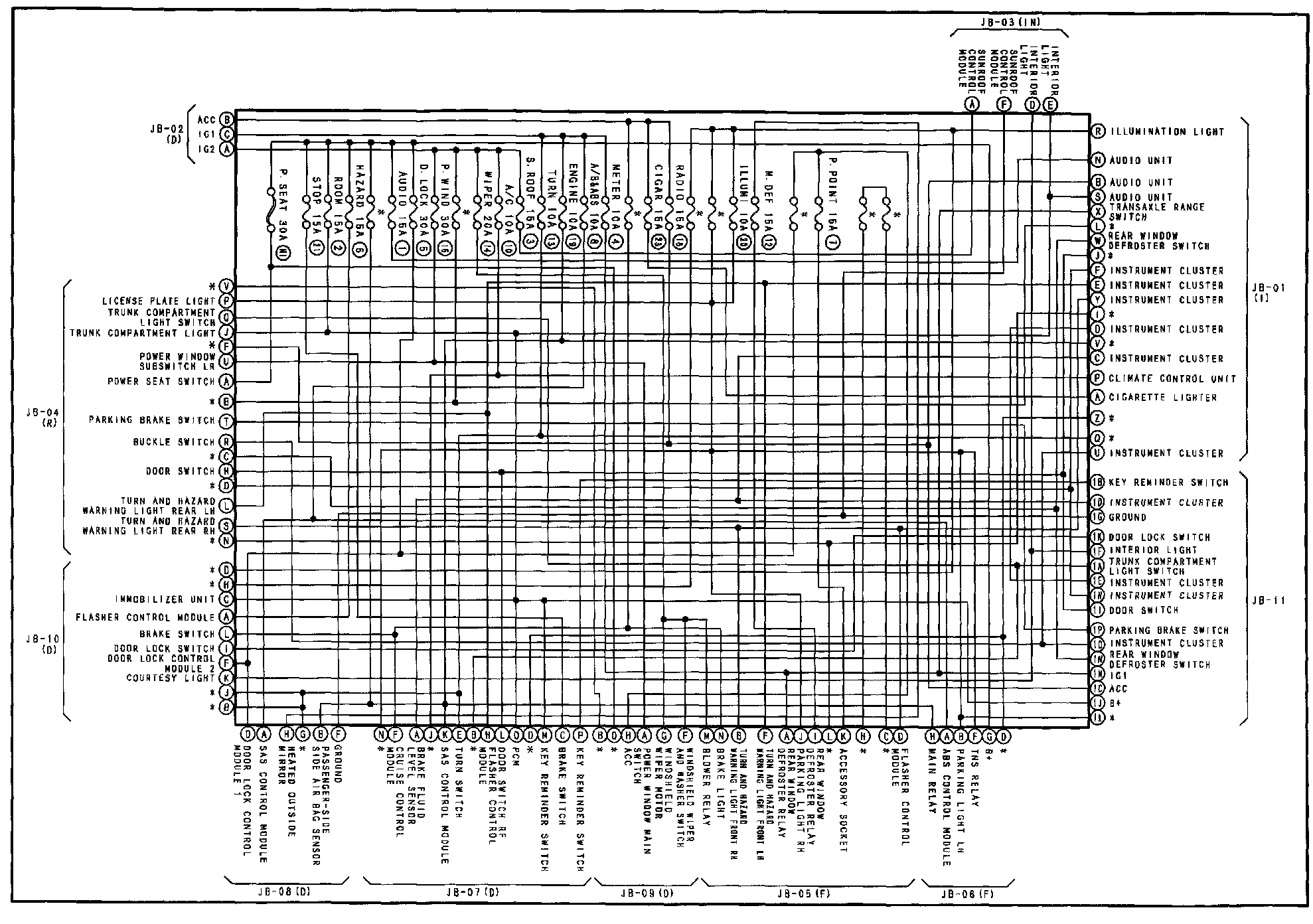

JB - Inter Connecting Diagram Of Joint Box:

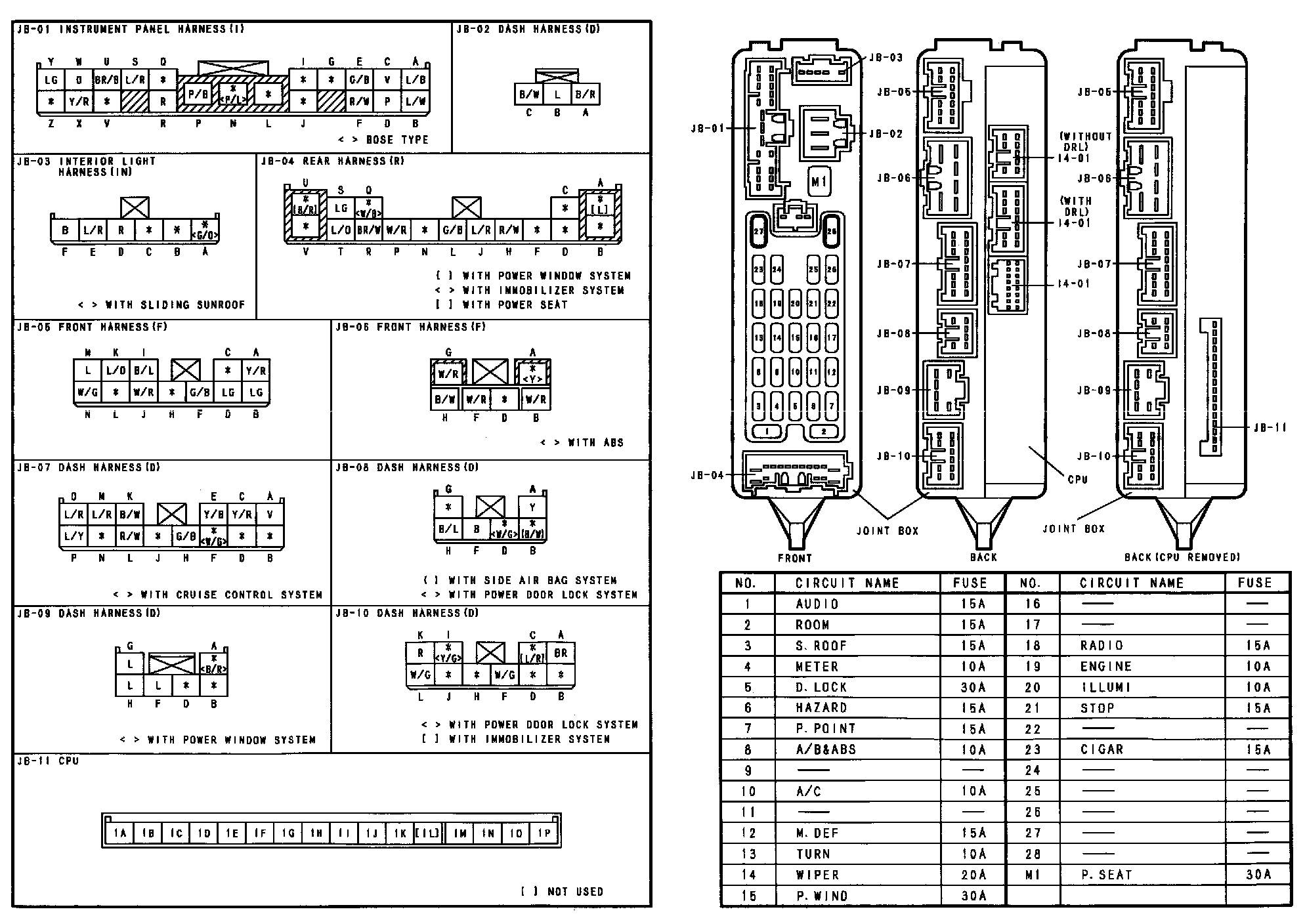

JB - Joint Box Connector Location:
