Quick Diagnostic Symptom Chart

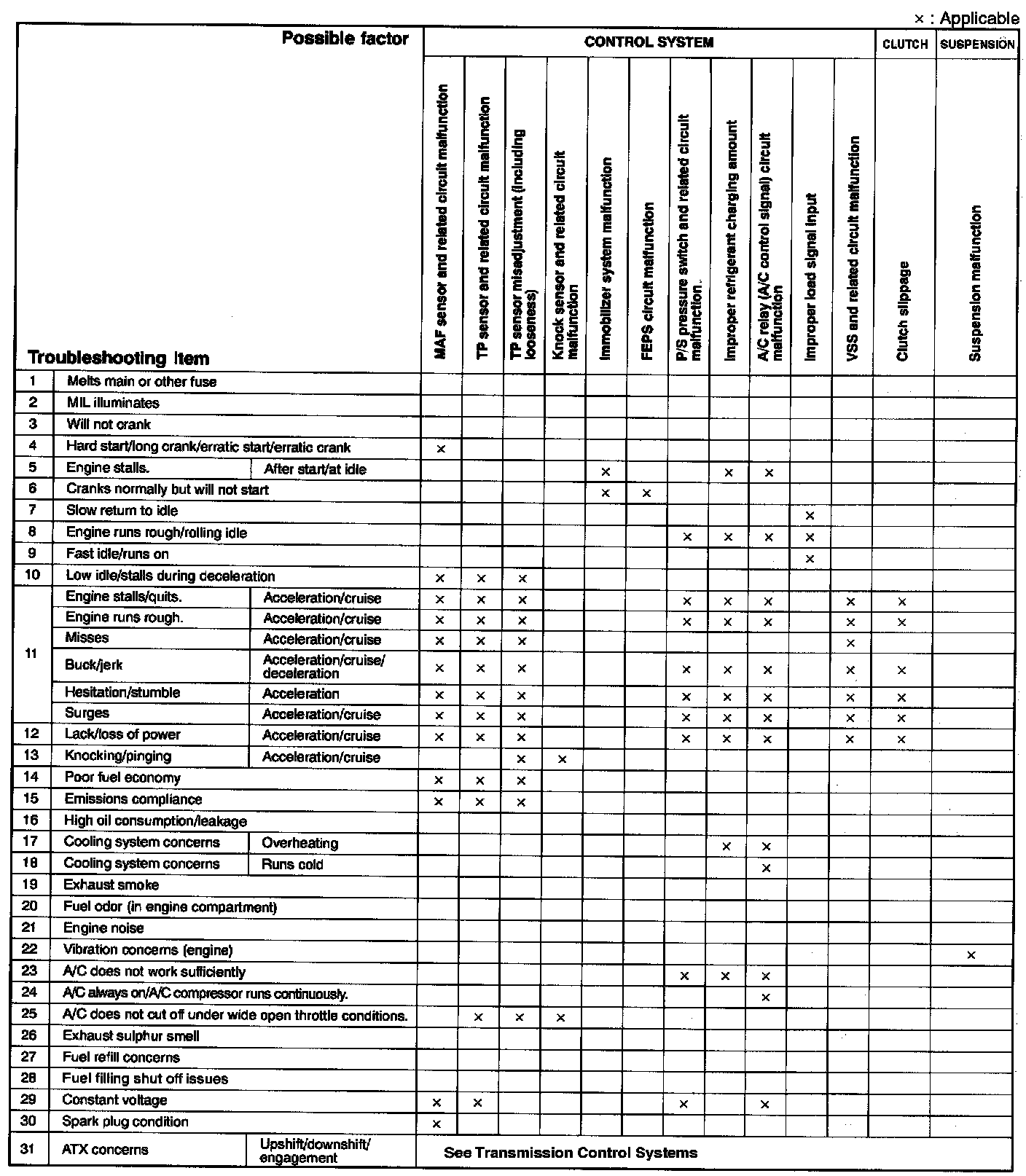

Symptom Quick Diagnosis Chart Part 1:

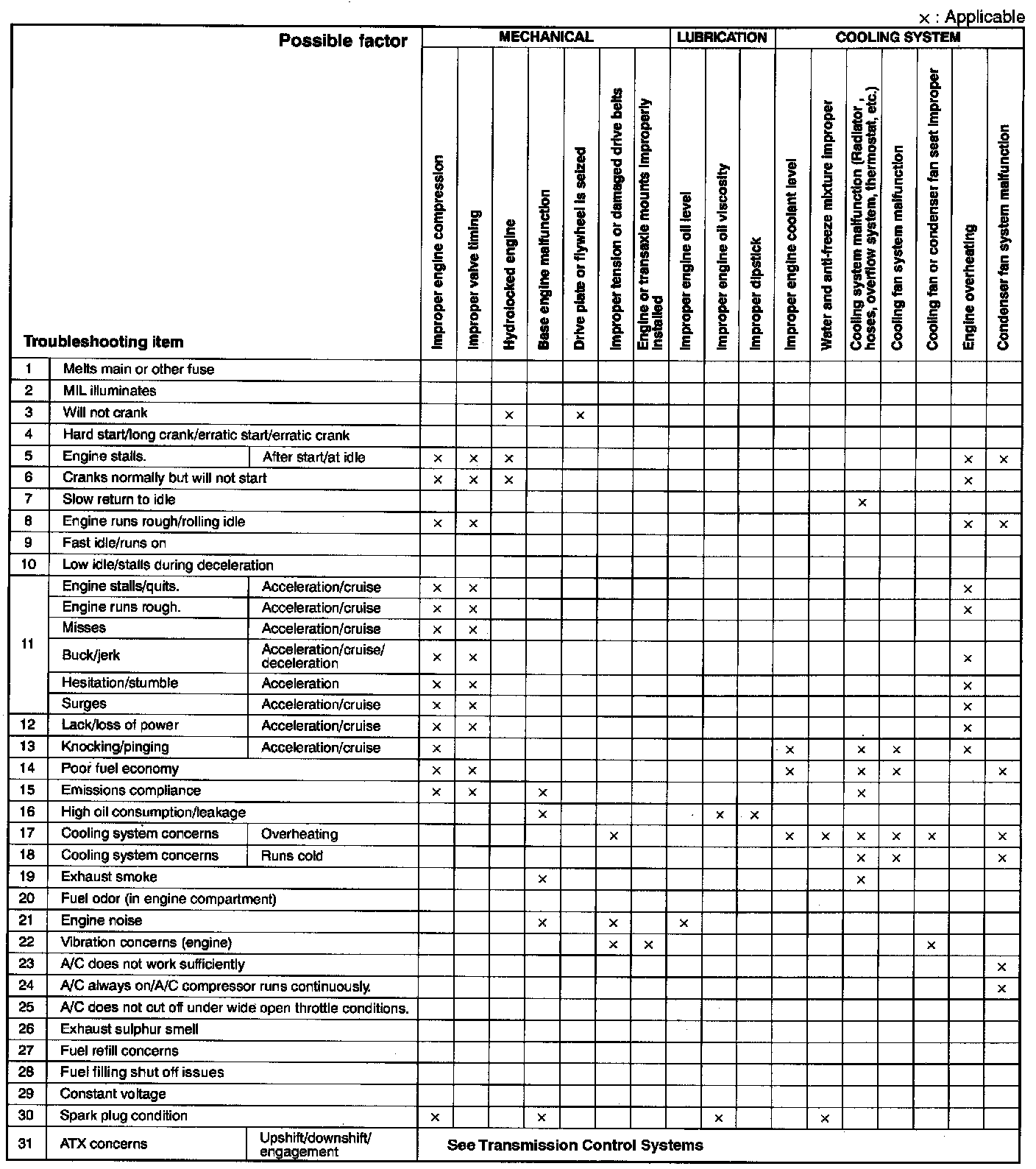

Symptom Quick Diagnosis Chart Part 2:

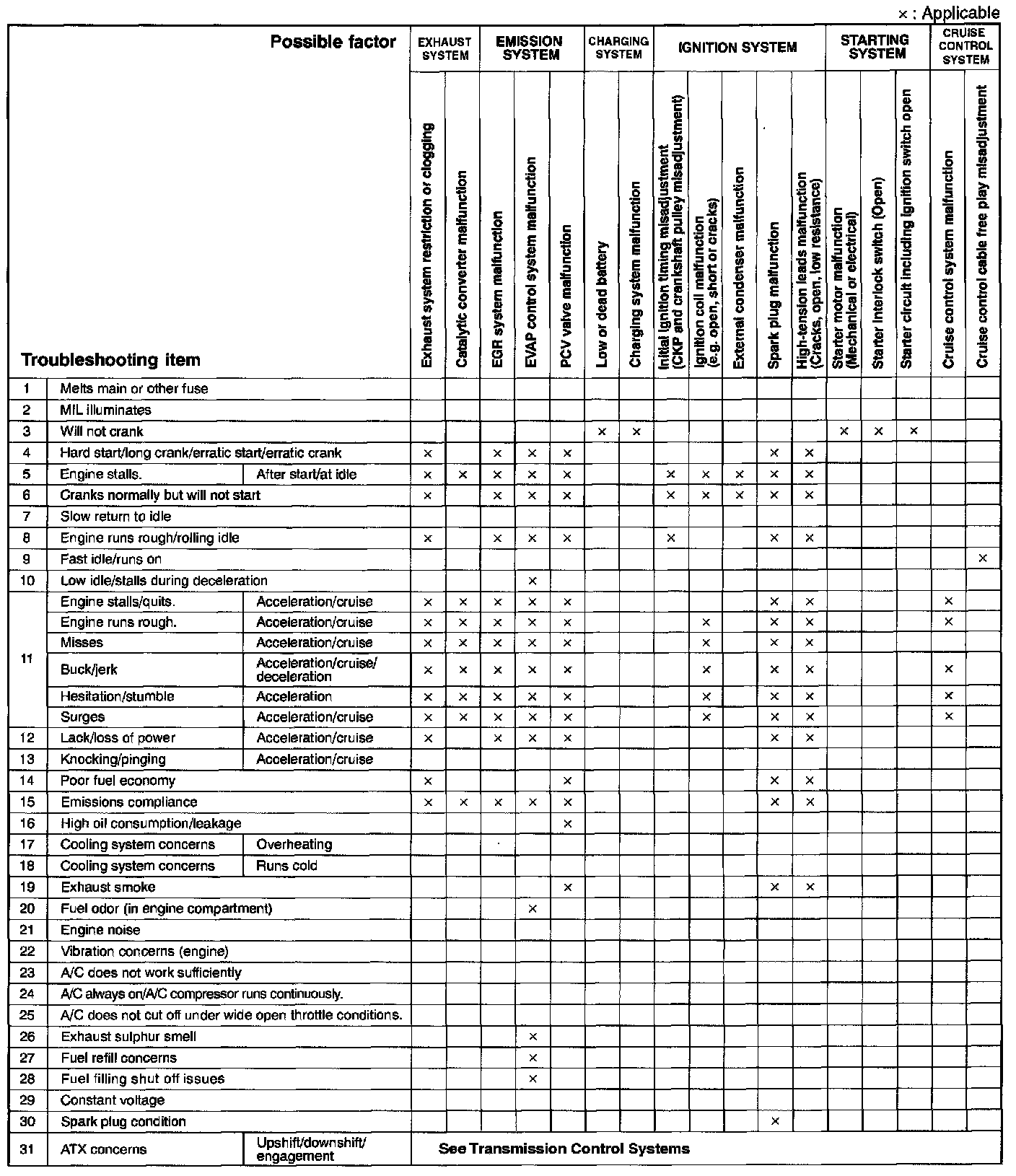

Symptom Quick Diagnosis Chart Part 3:

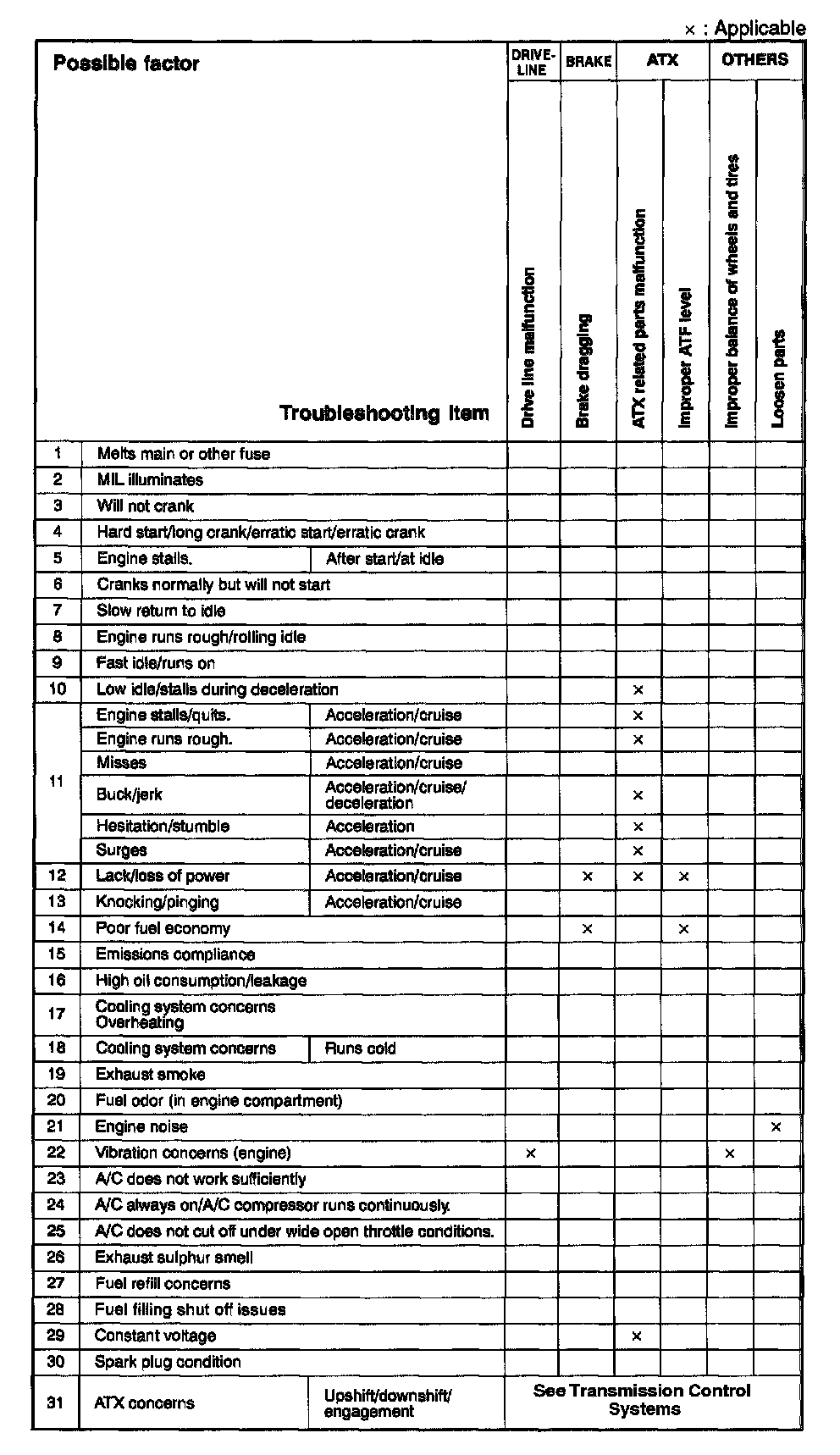

Symptom Quick Diagnosis Chart Part 4:

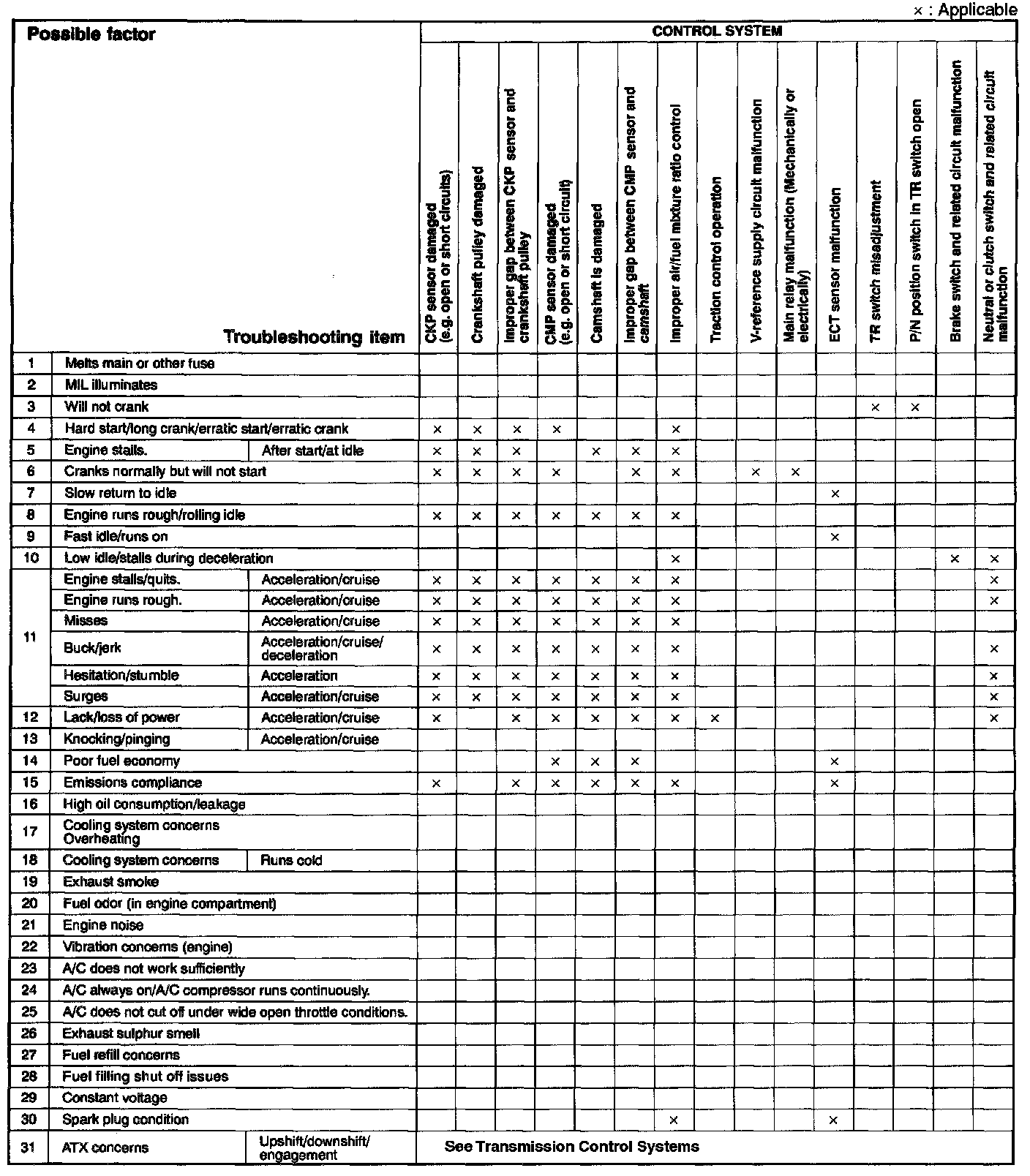

Symptom Quick Diagnosis Chart Part 5:

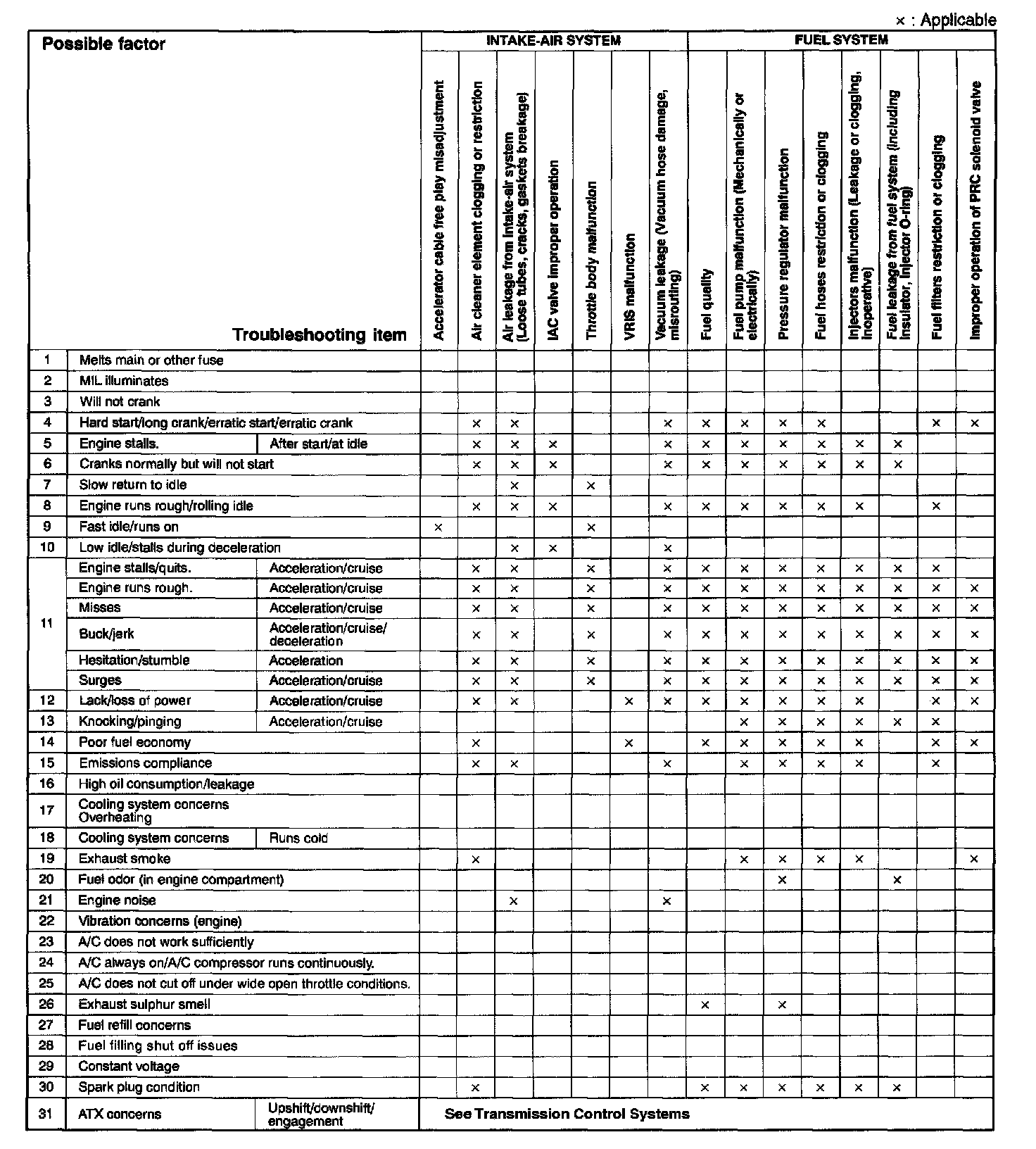

Symptom Quick Diagnosis Chart Part 6:
