Connector Locations

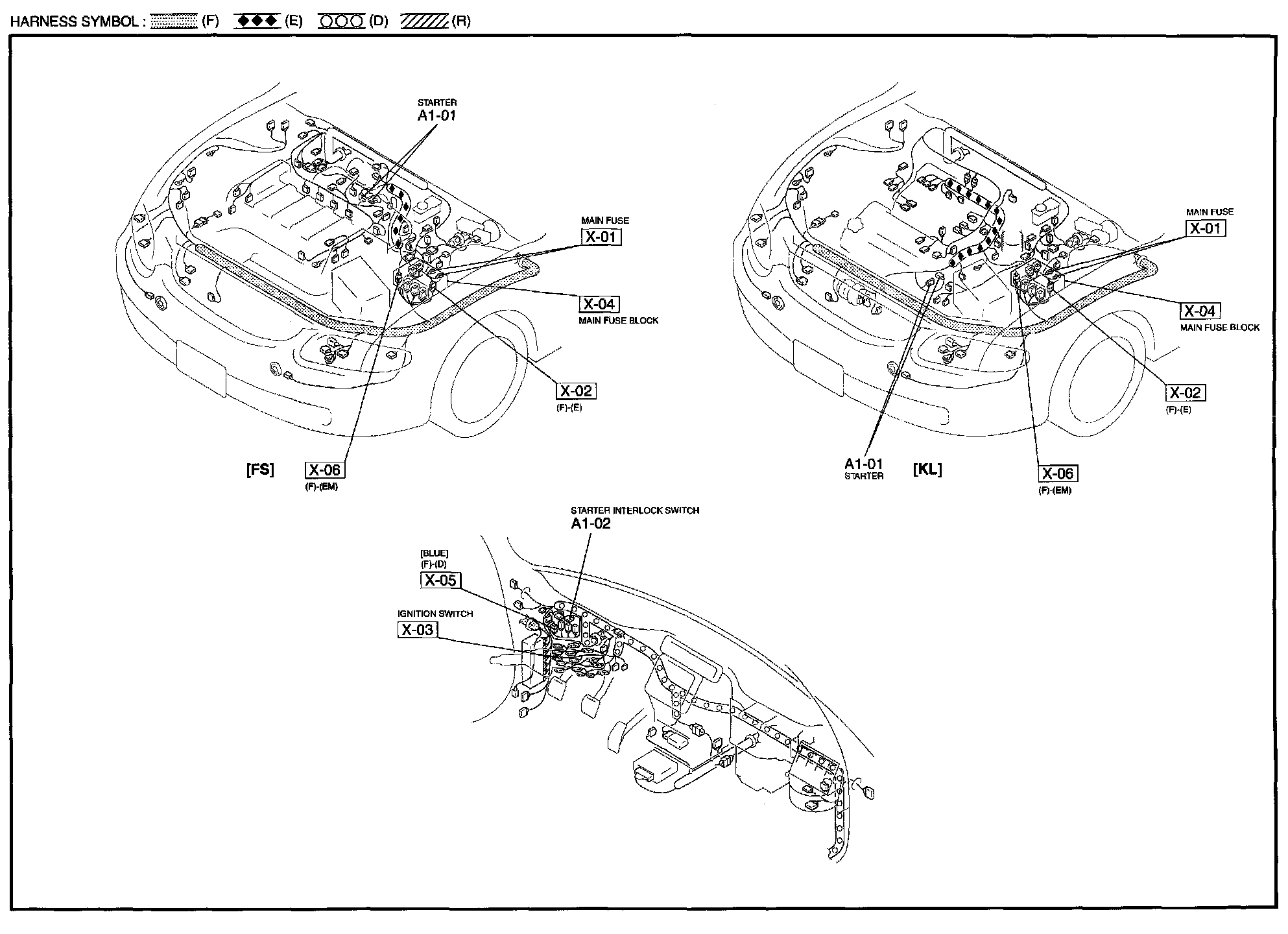

A-1 - Starting System (MTX) Harness/Connector Symbols:

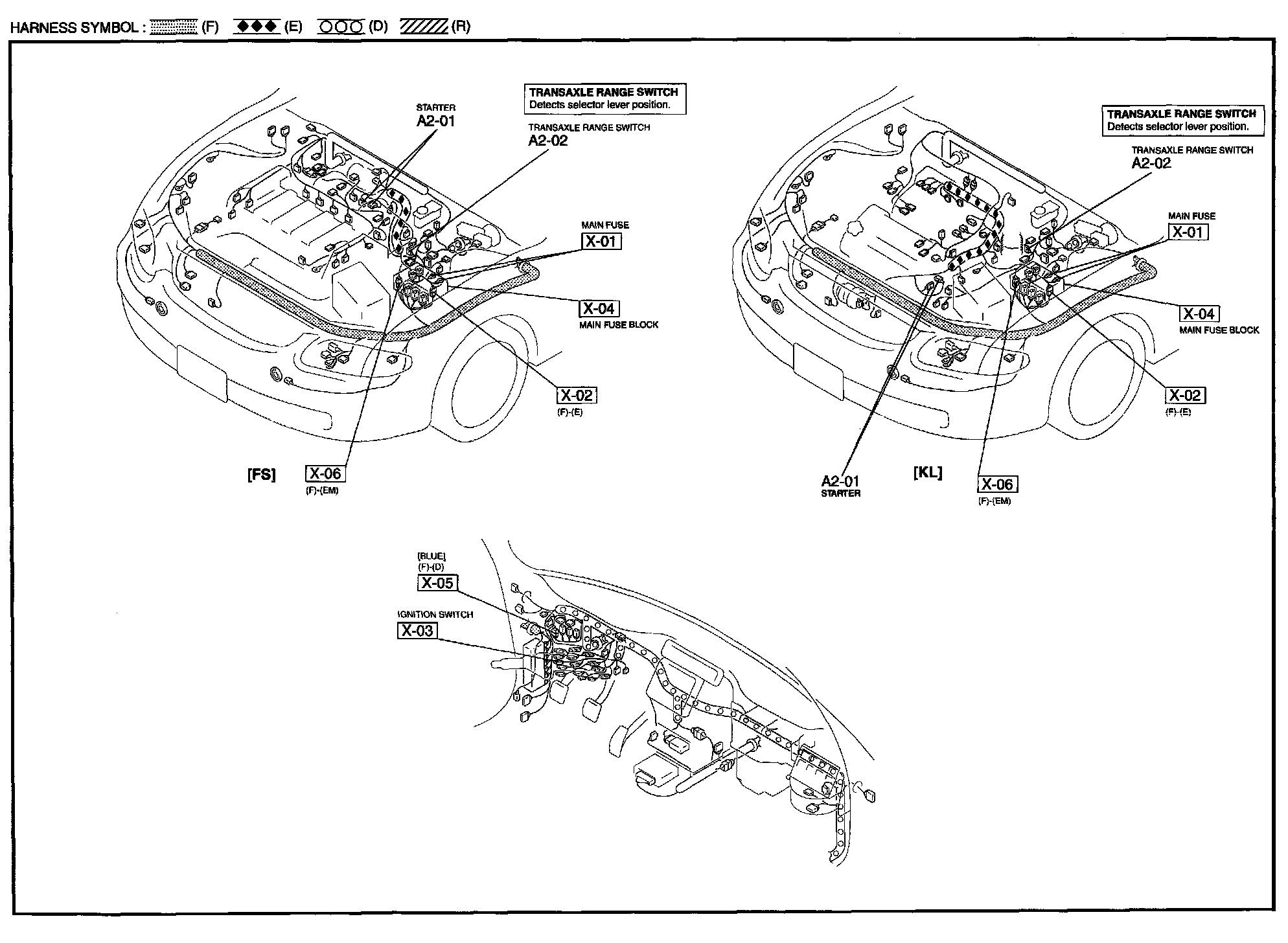

A-2 - Starting System (ATX) Harness/Connector Symbols:
