Mazda
>>
2002
>>
626 LX L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

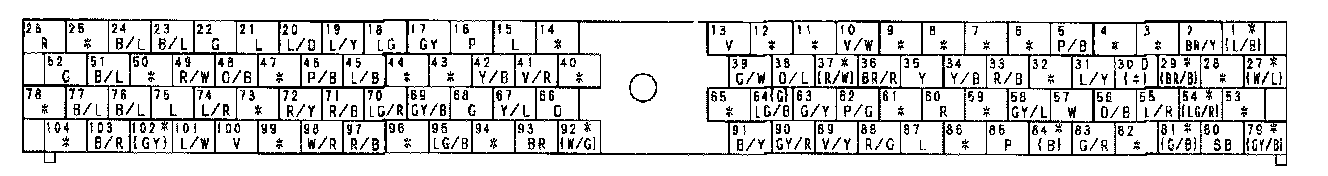

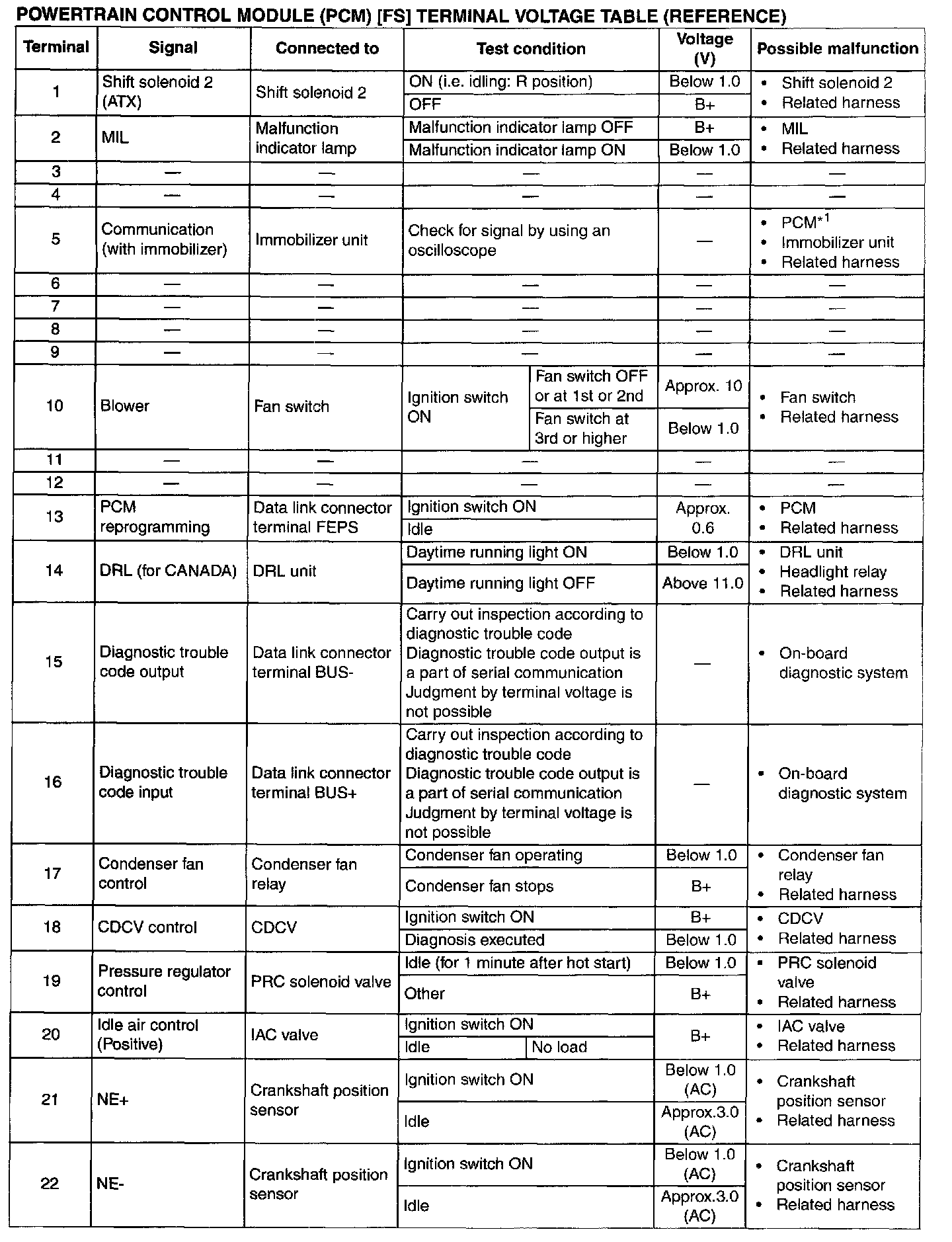

Terminals 1 - 22:

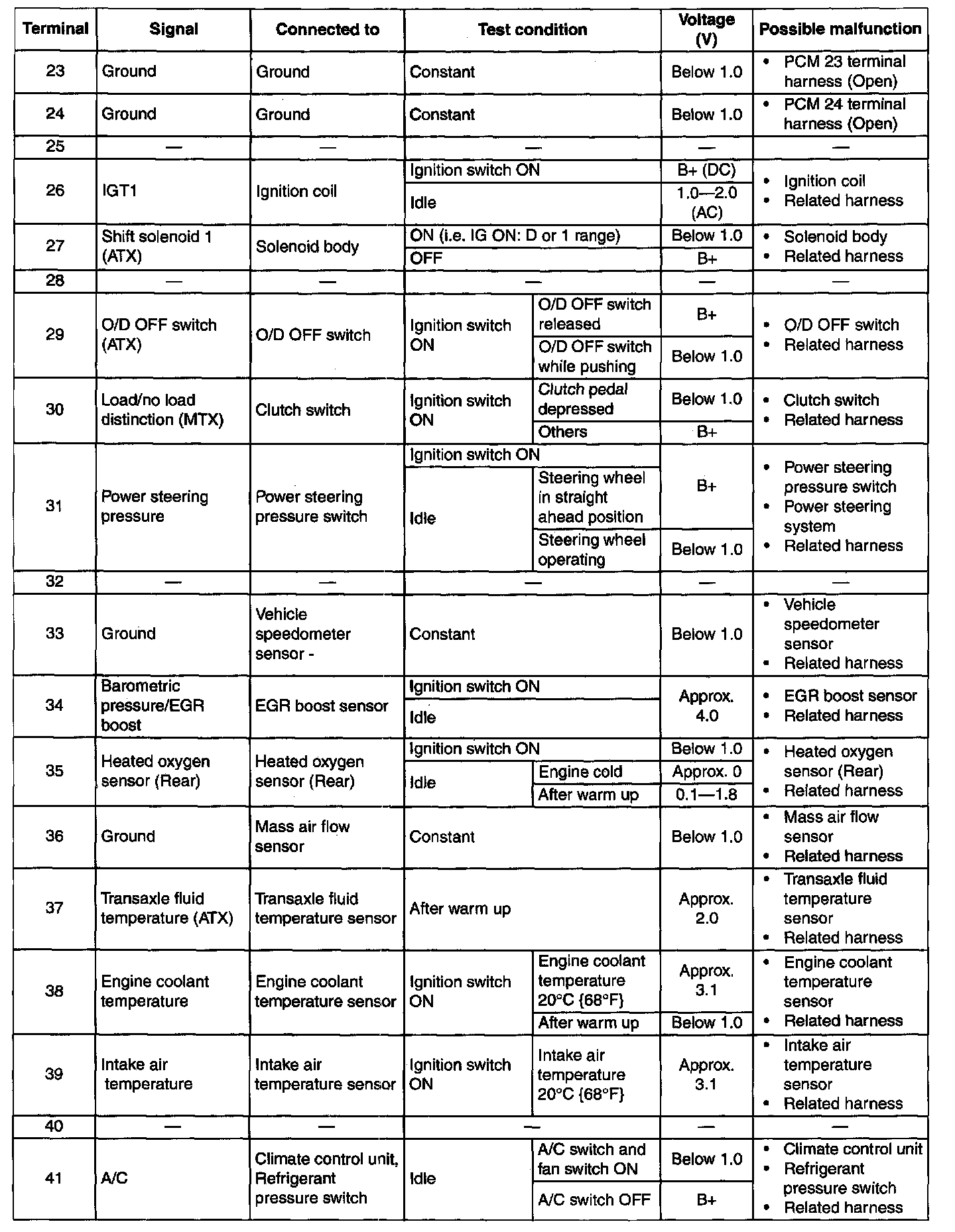

Terminals 23 - 41:

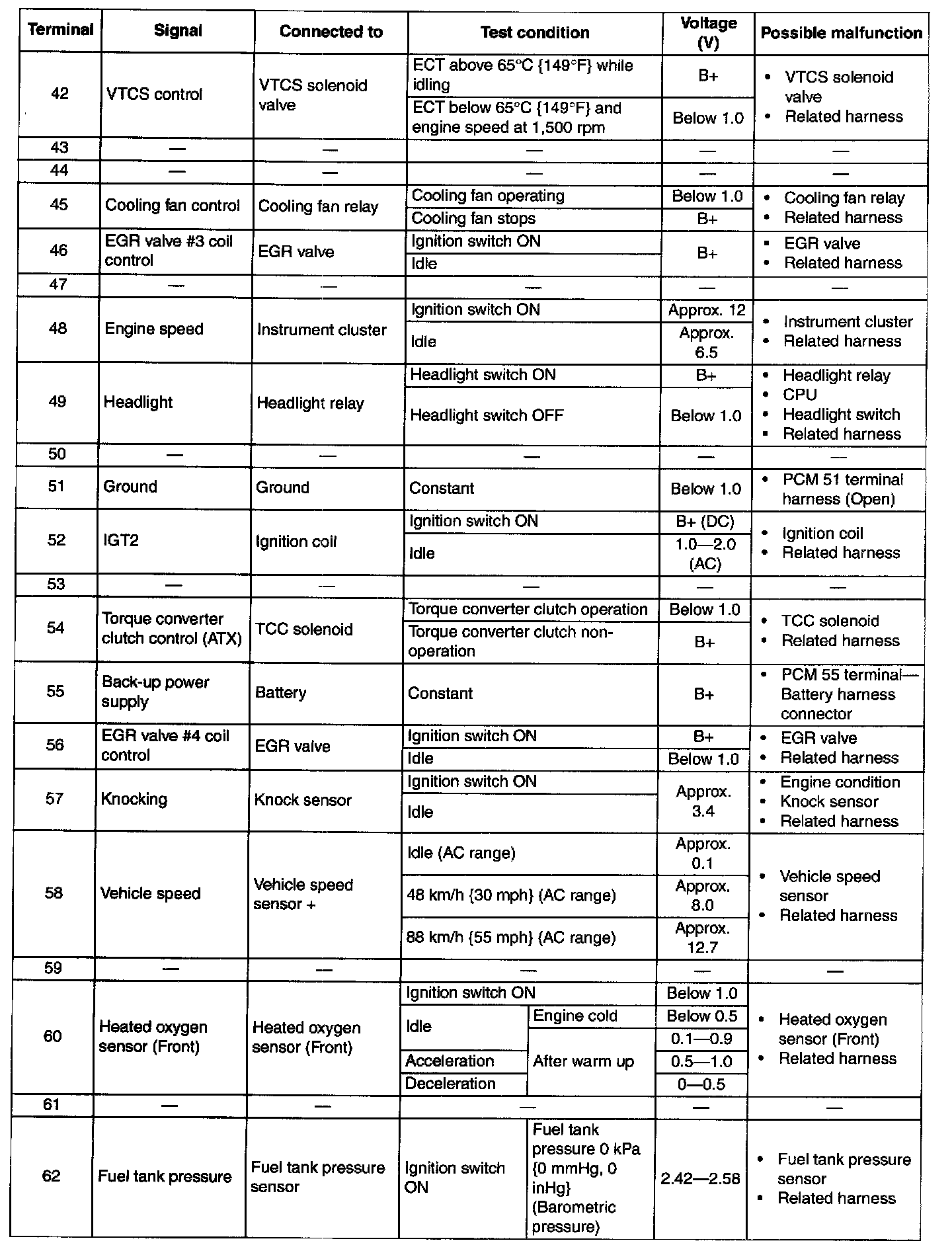

Terminals 42 - 62:

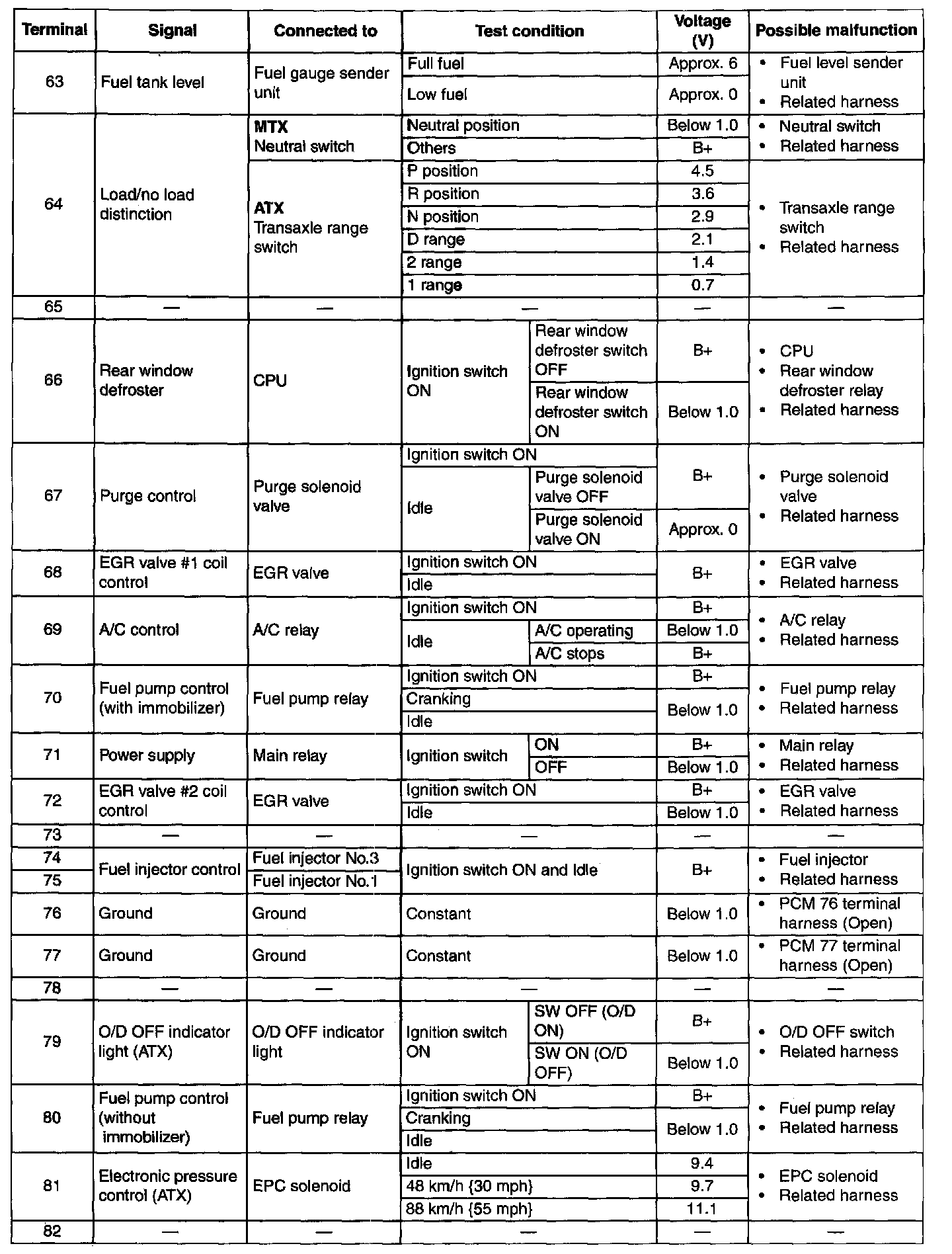

Terminals 63 - 82:

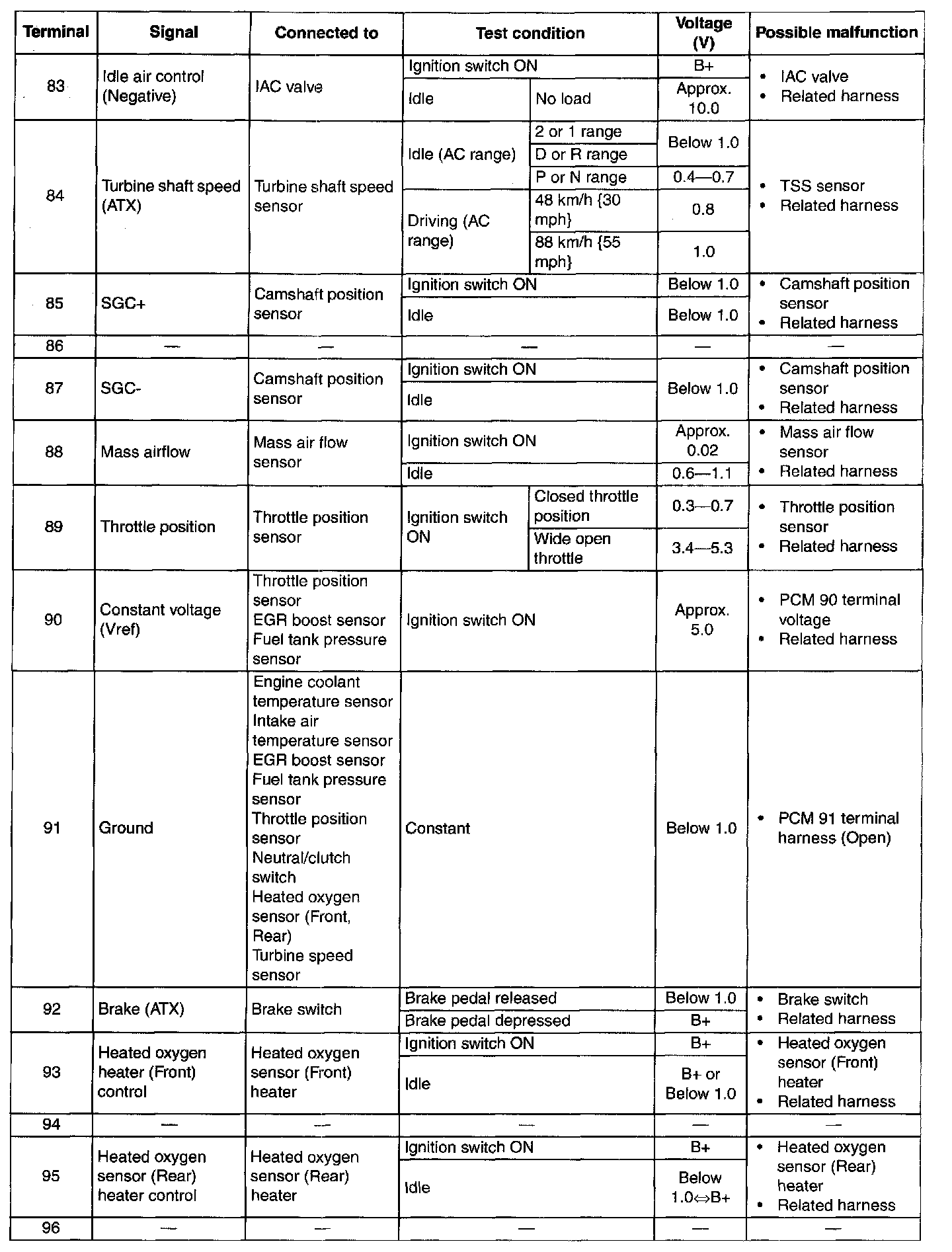

Terminals 83 - 96:

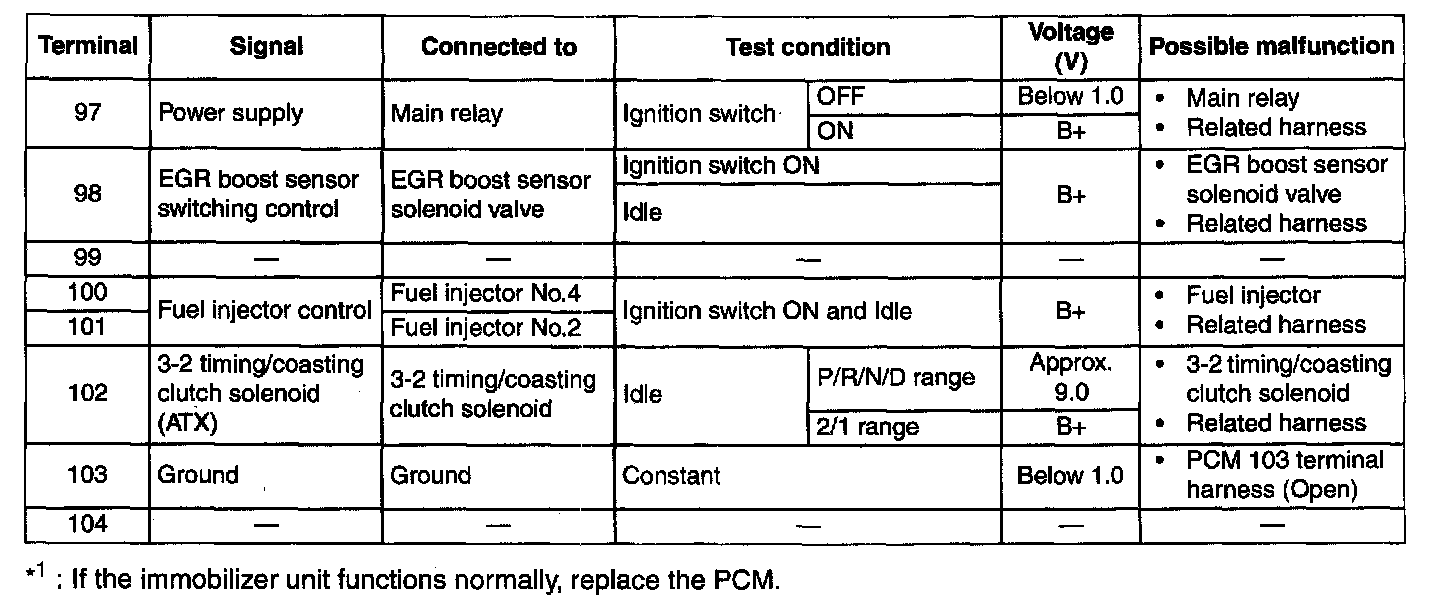

Terminals 97 - 104:
