Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc

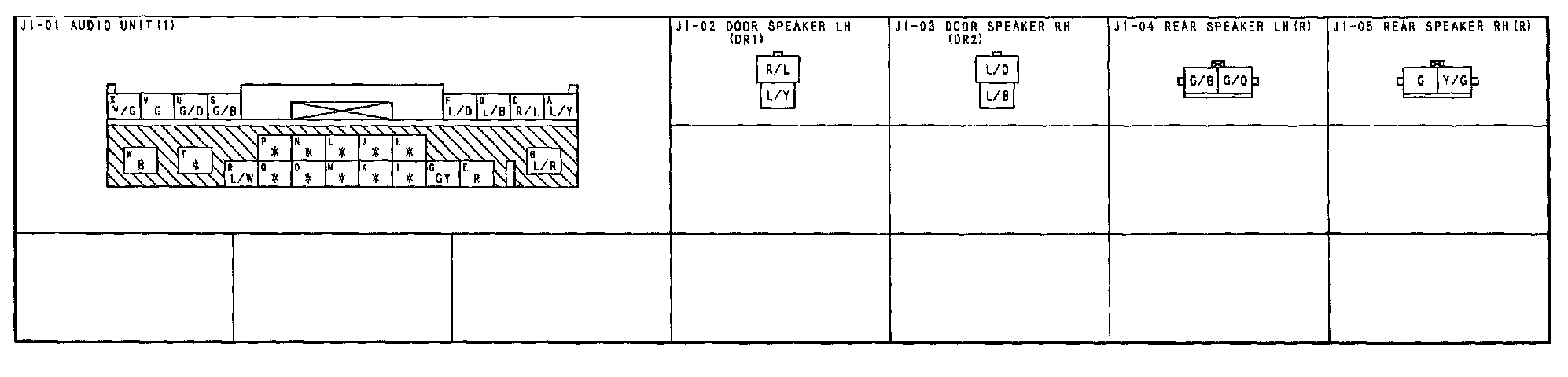

J-1 - Audio System (Standard Type) Connectors:

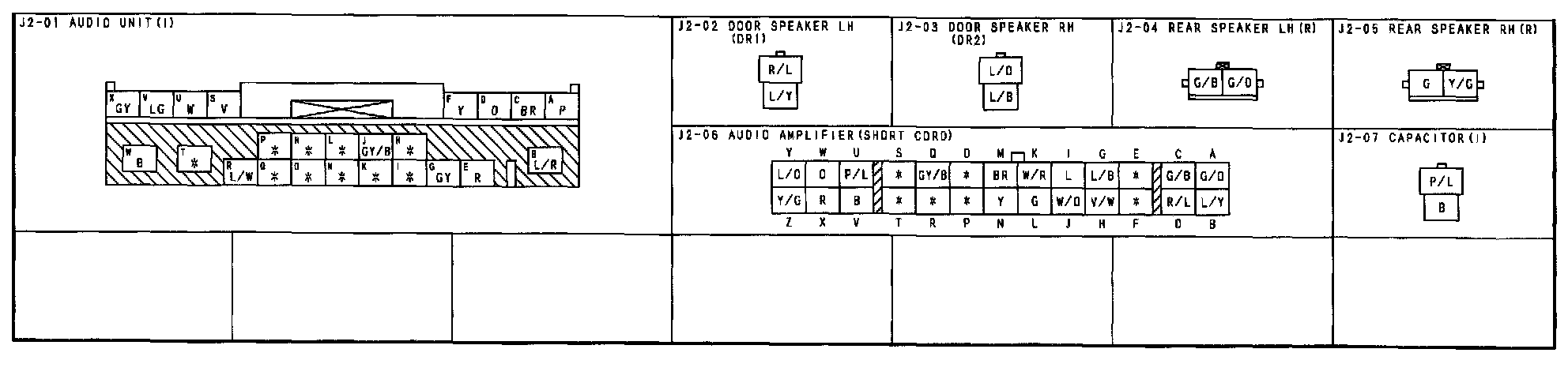

J-2 - Audio System (Bose Type) Connectors:
