B-1a - EC-AT Control System / Engine Control System

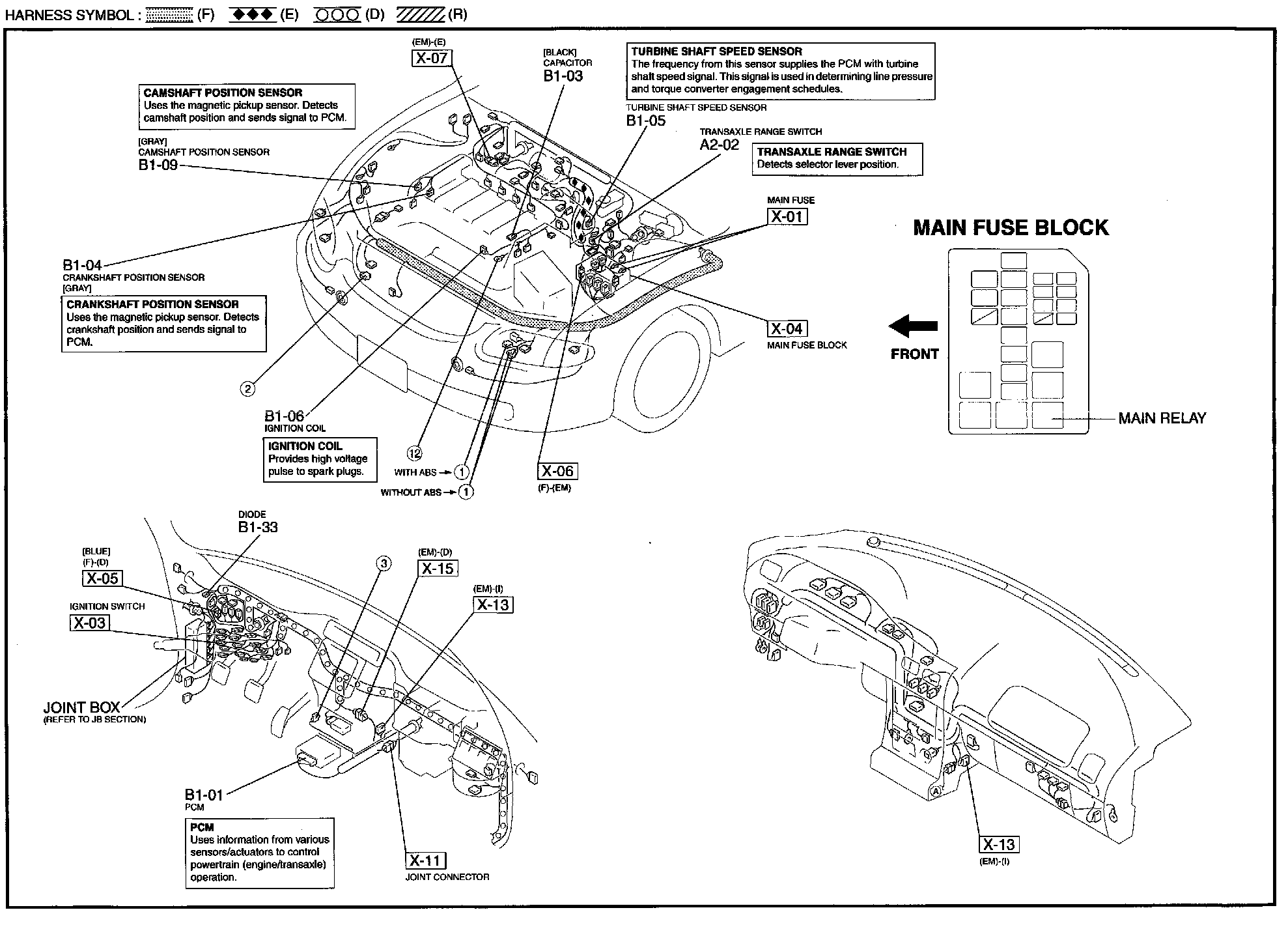

B-1a - EC-AT Control System (FS)/Engine Control System (FS) Harness/Connector Symbols:



B-1b - EC-AT Control System (FS)/Engine Control System (FS) Harness/Connector Symbols:



B-1c - EC-AT Control System (FS)/Engine Control System (FS) Harness/Connector Symbols:



B-1d - EC-AT Control System (FS)/Engine Control System (FS) Harness/Connector Symbols:
