Camshaft Position Sensor: Testing and Inspection

CAMSHAFT POSITION SENSOR INSPECTION

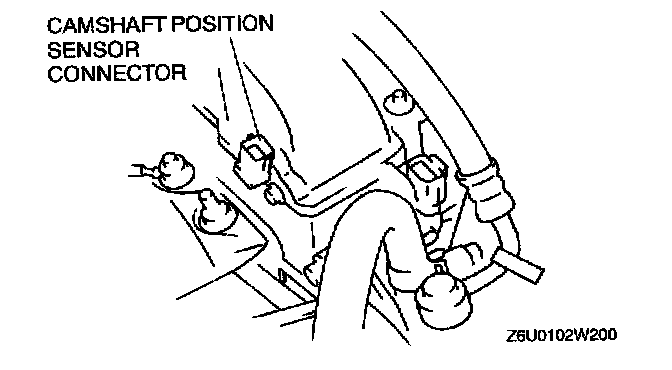

1. Disconnect the camshaft position sensor connector.
2. Measure the resistance between terminals A and B using an ohmmeter.
- If not as specified, check related wiring harness. If they are okay, replace the camshaft position sensor.

Tightening torque:
7.9 - 10.7 N.m {80 - 110 kgf.cm, 69.5 - 95.4 in.lbf}

Specification: Approx. 0.95 - 1.25 kilohms
