Using SST (WDS or Equivalent)

PCM Inspection Using the SST (WDS or equivalent)

NOTE:
- PIDs for the following parts are not available on this model. Go to the appropriate part inspection.
- CMP sensor
- Main relay

1. Connect the WDS or equivalent to the DLC.
2. Turn the ignition switch to ON position.
3. Measure the value.
- If value is not within specification, follow the instruction in Action column

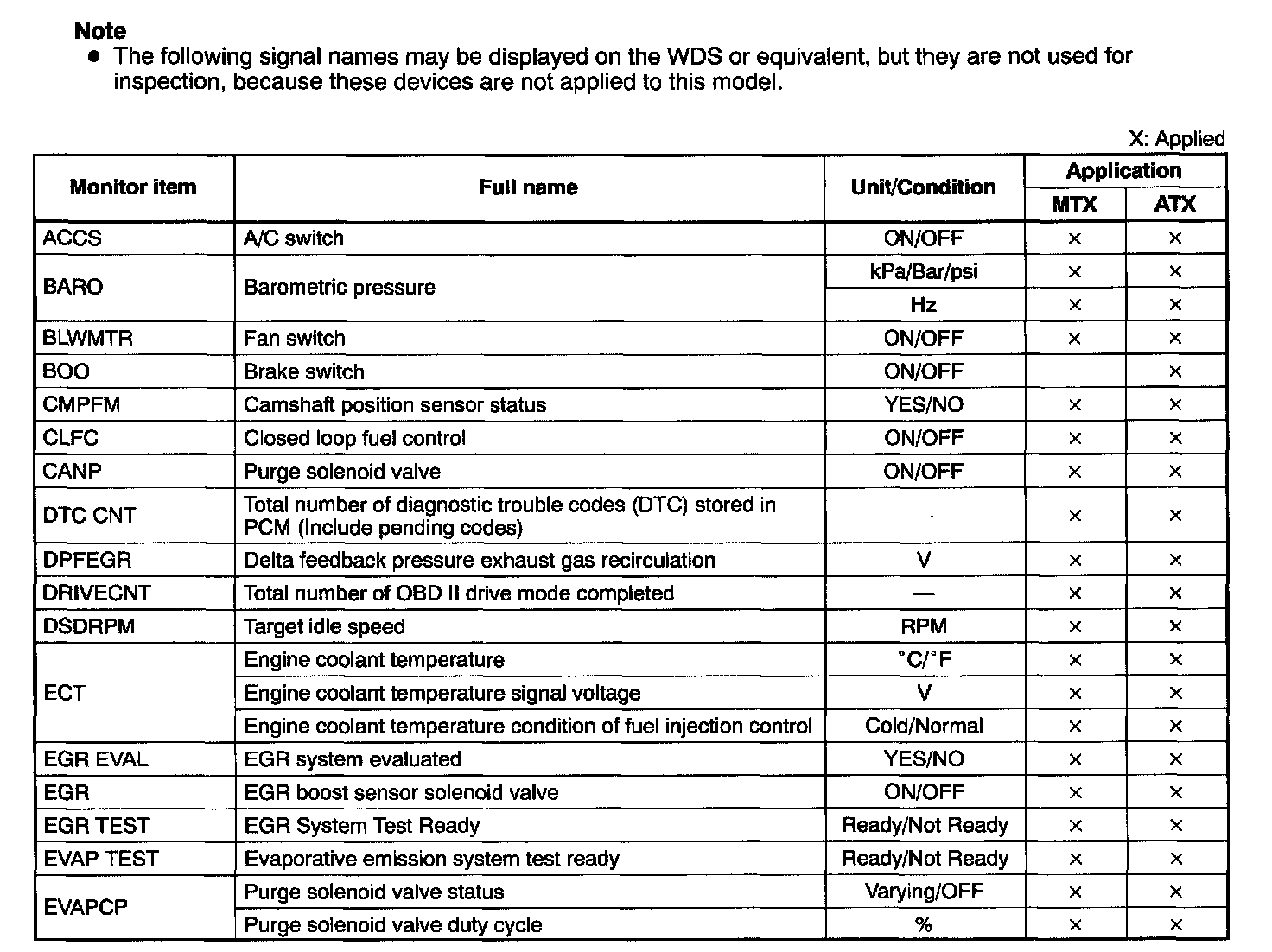

PID/DATA Monitor Item Table Part 1:

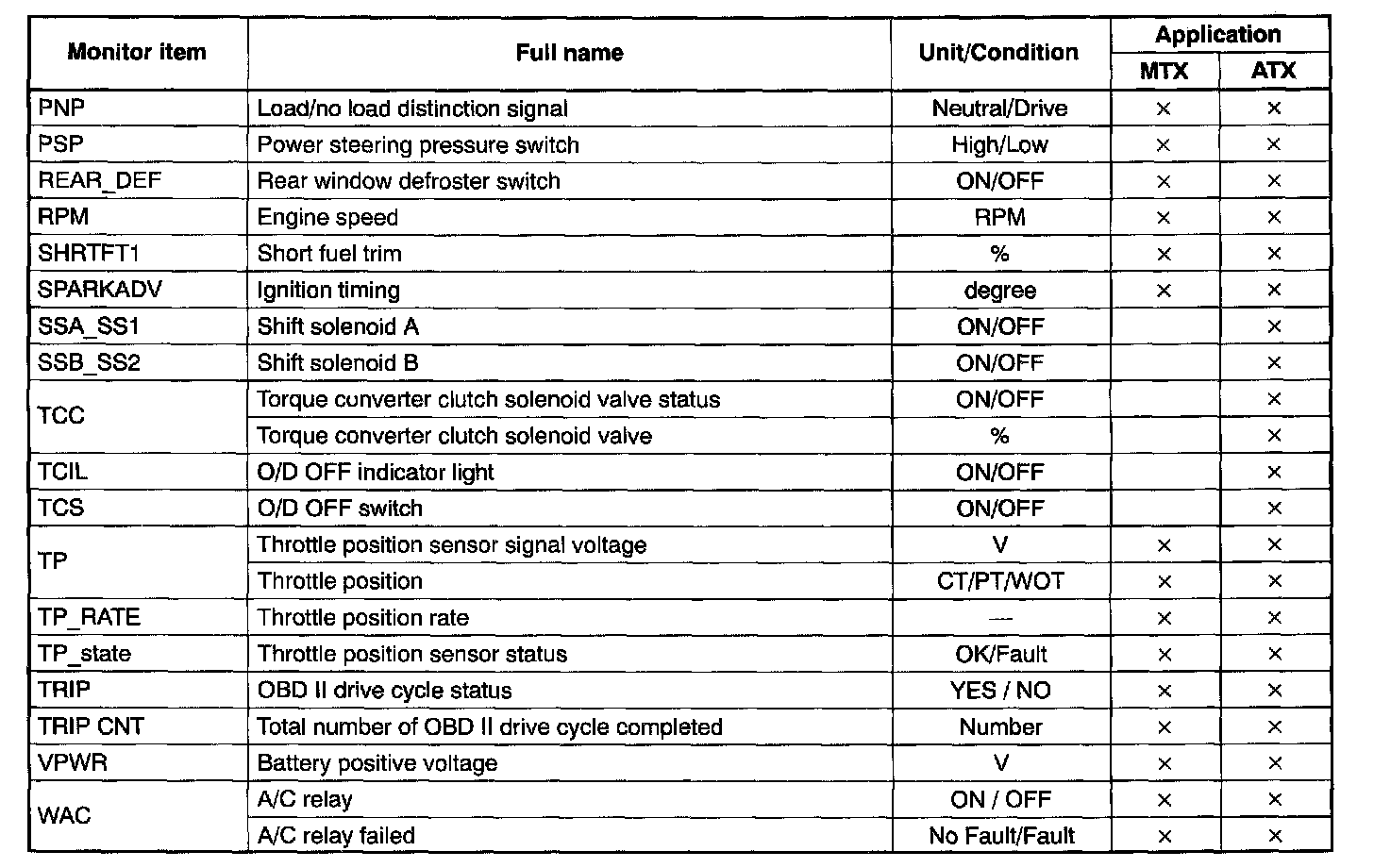

PID/DATA Monitor Item Table Part 2:

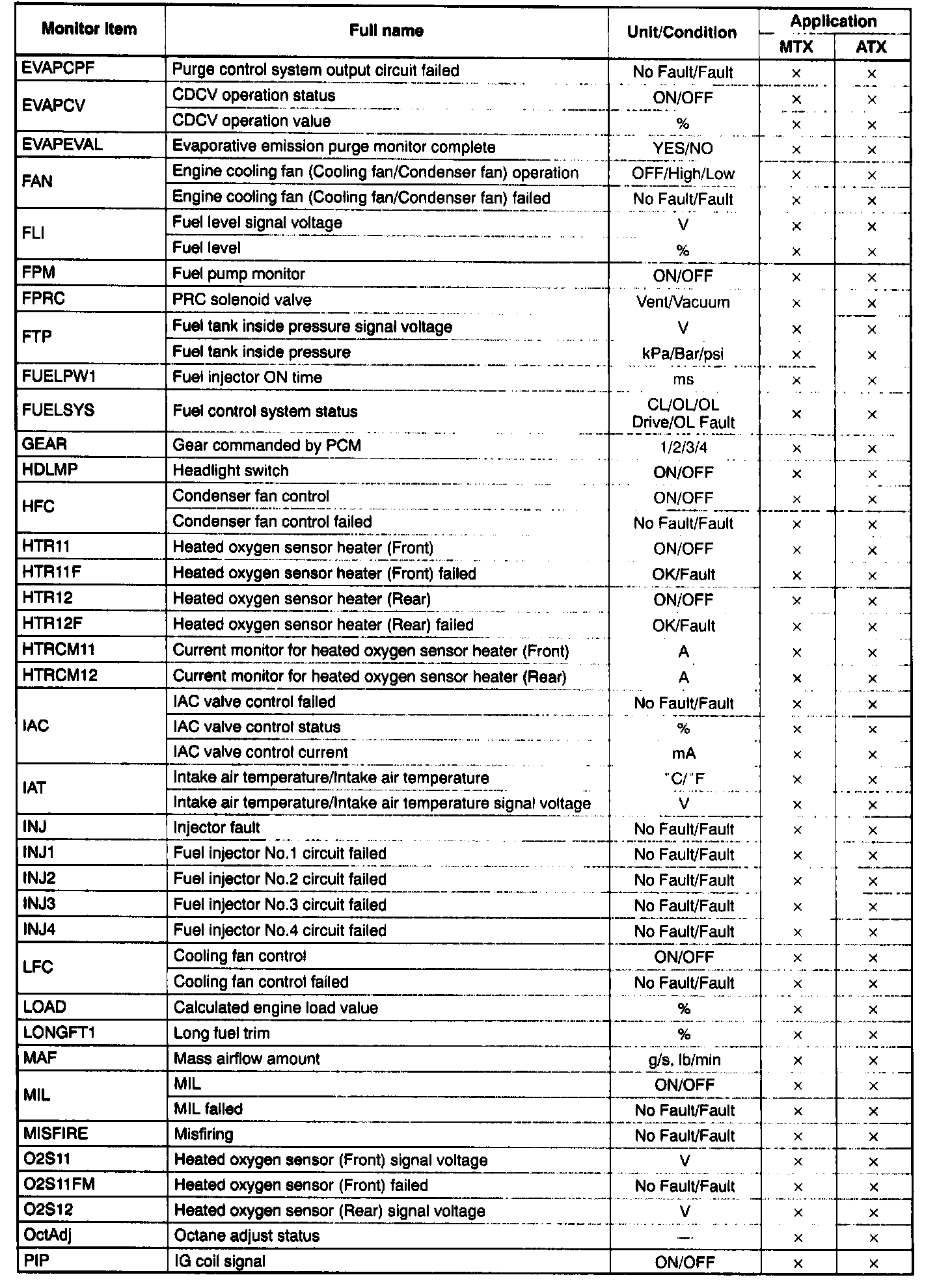

PID/DATA Monitor Item Table Part 3:

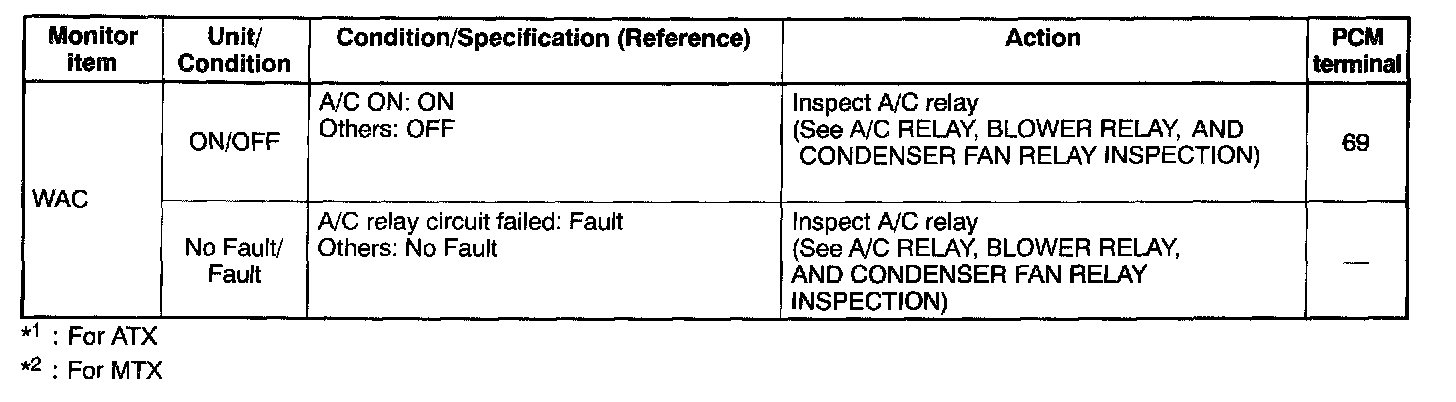

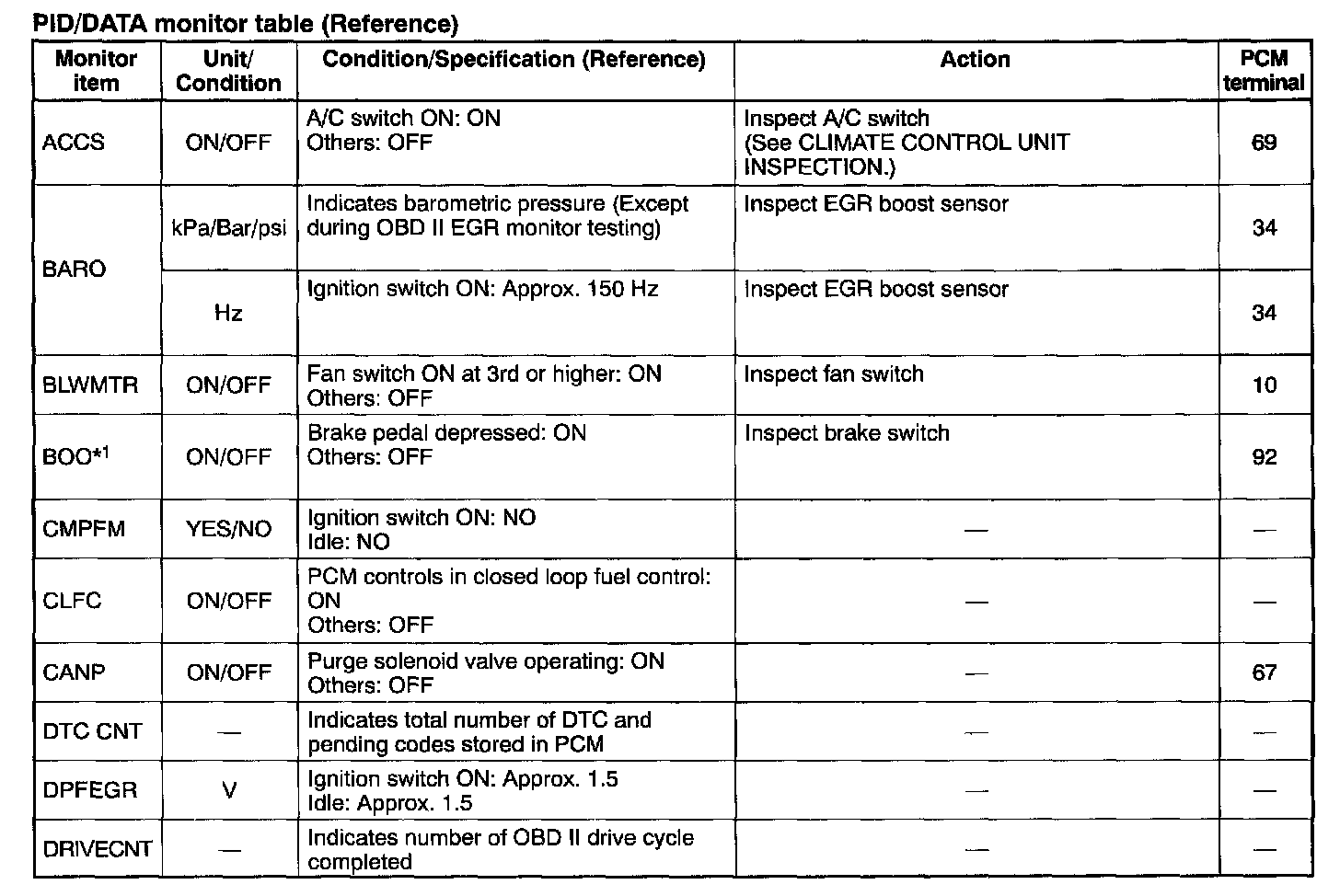

PID/DATA Monitor Table (Reference) Part 1:

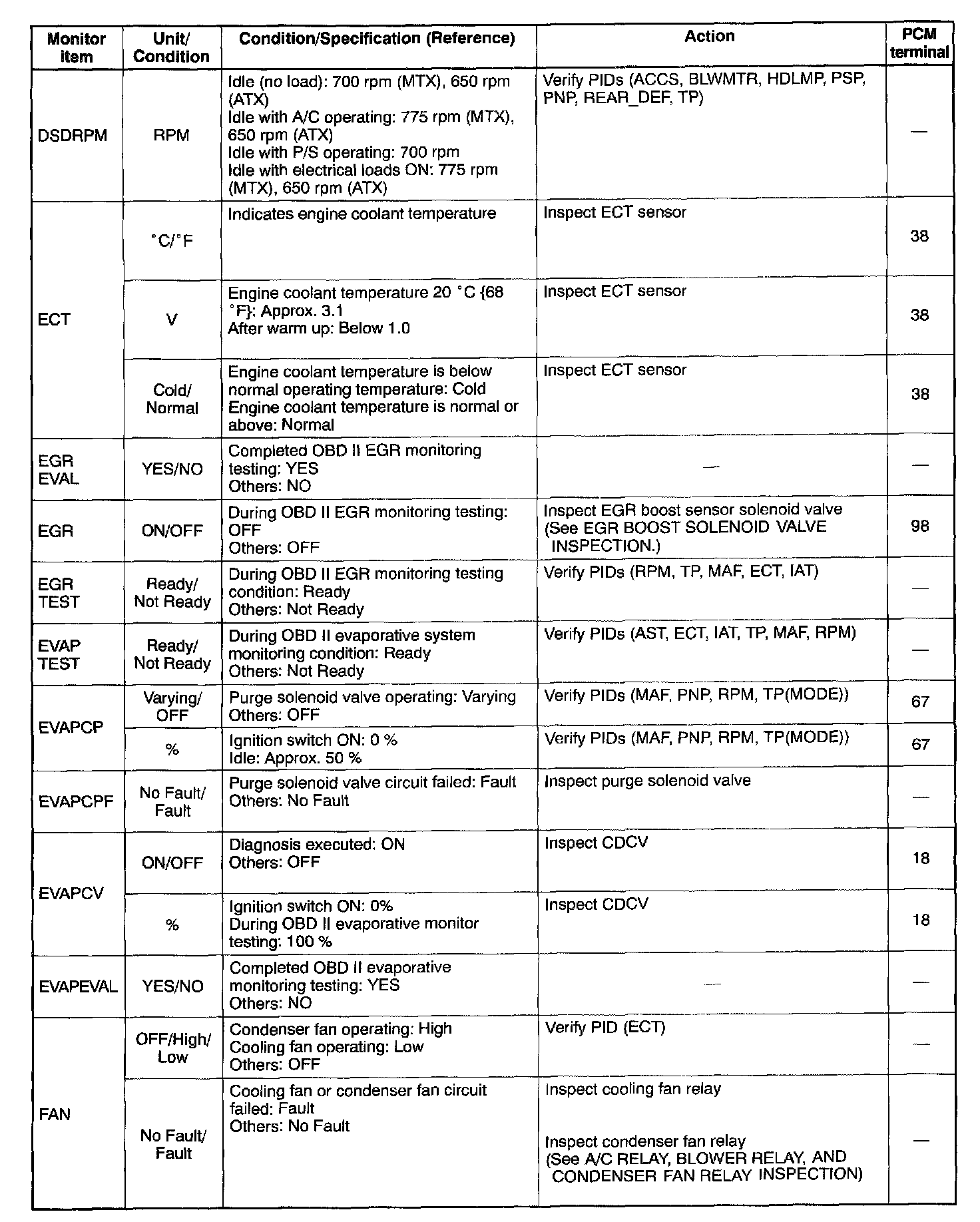

PID/DATA Monitor Table (Reference) Part 2:

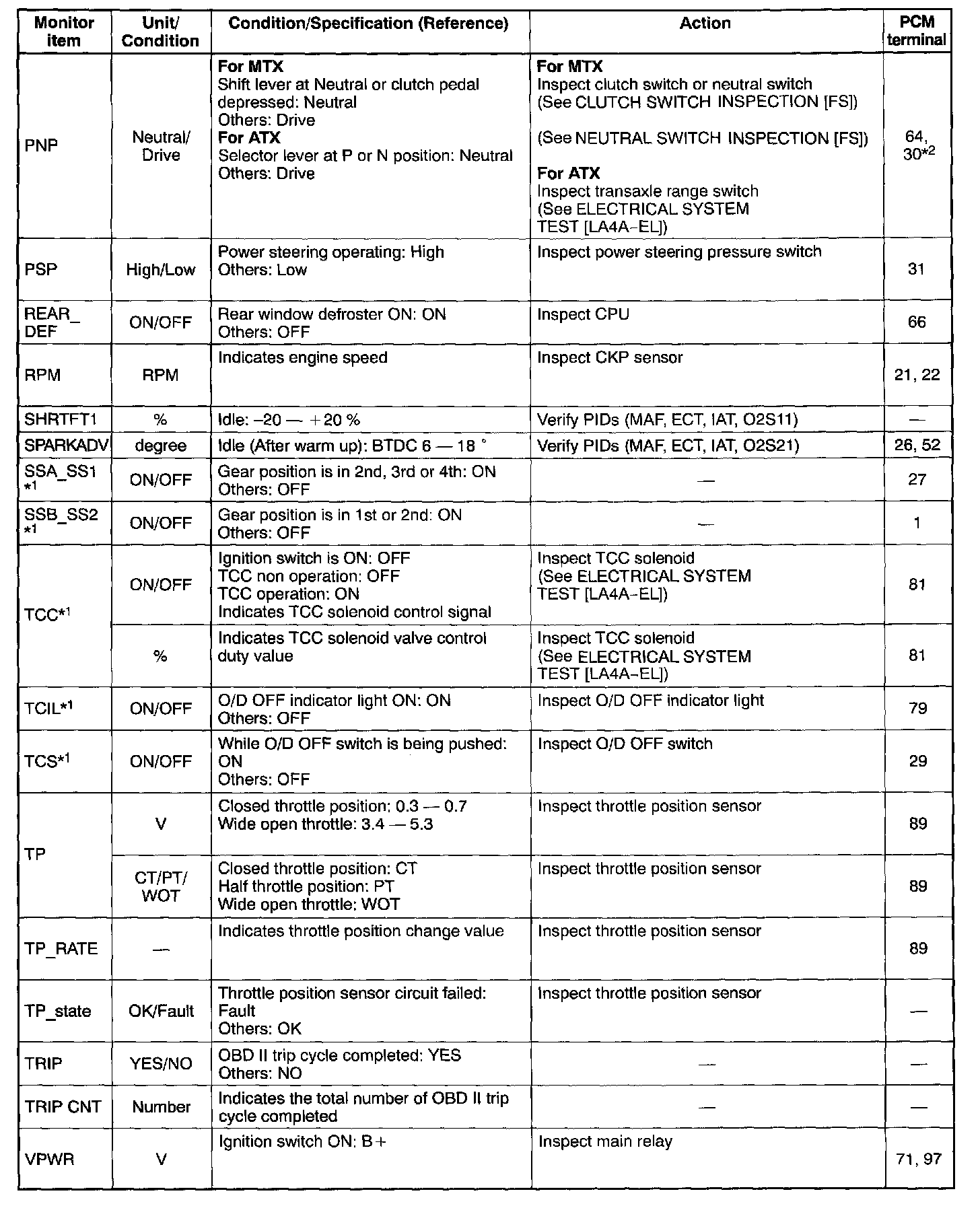

PID/DATA Monitor Table (Reference) Part 3:

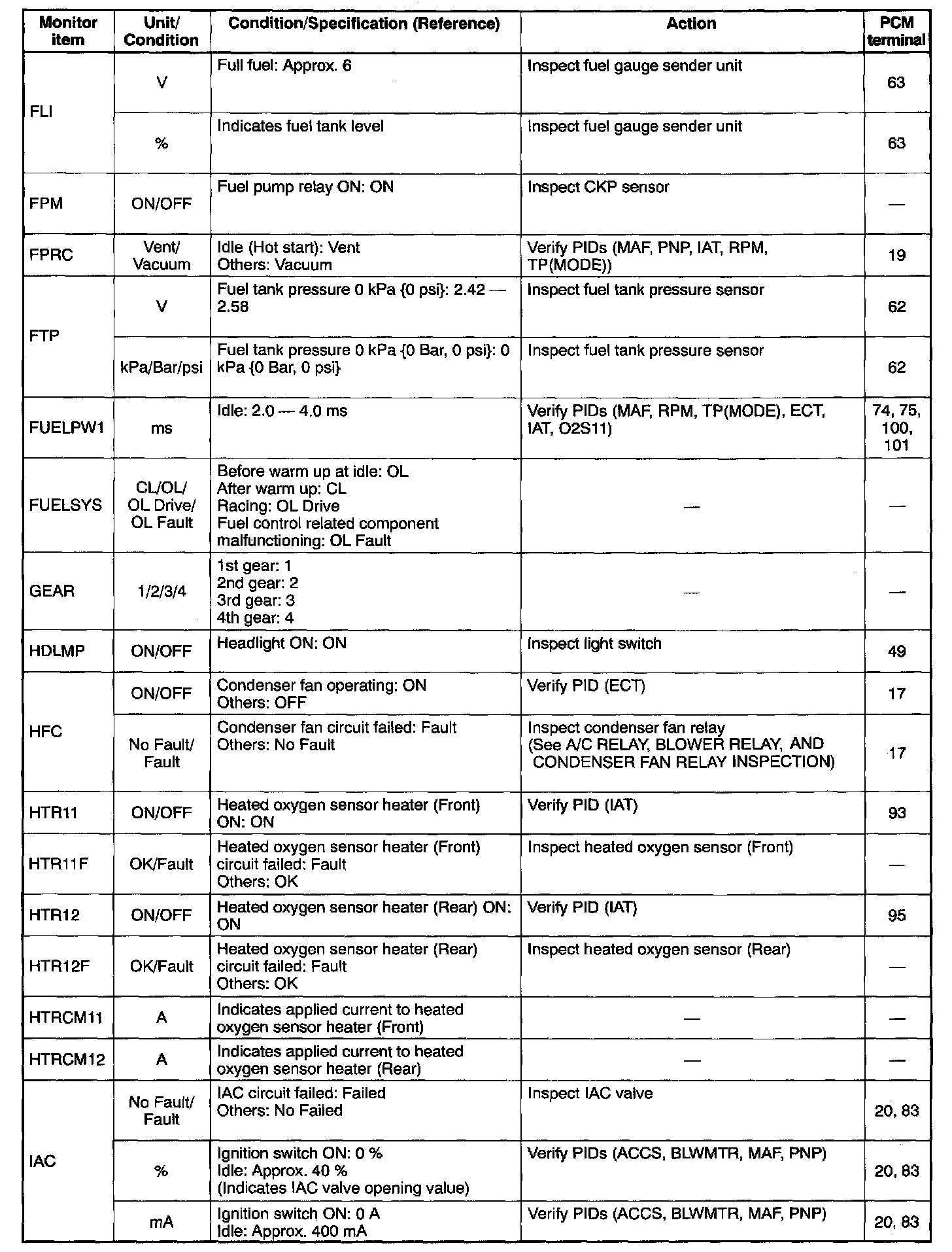

PID/DATA Monitor Table (Reference) Part 4:

PID/DATA Monitor Table (Reference) Part 5:

PID/DATA Monitor Table (Reference) Part 6:

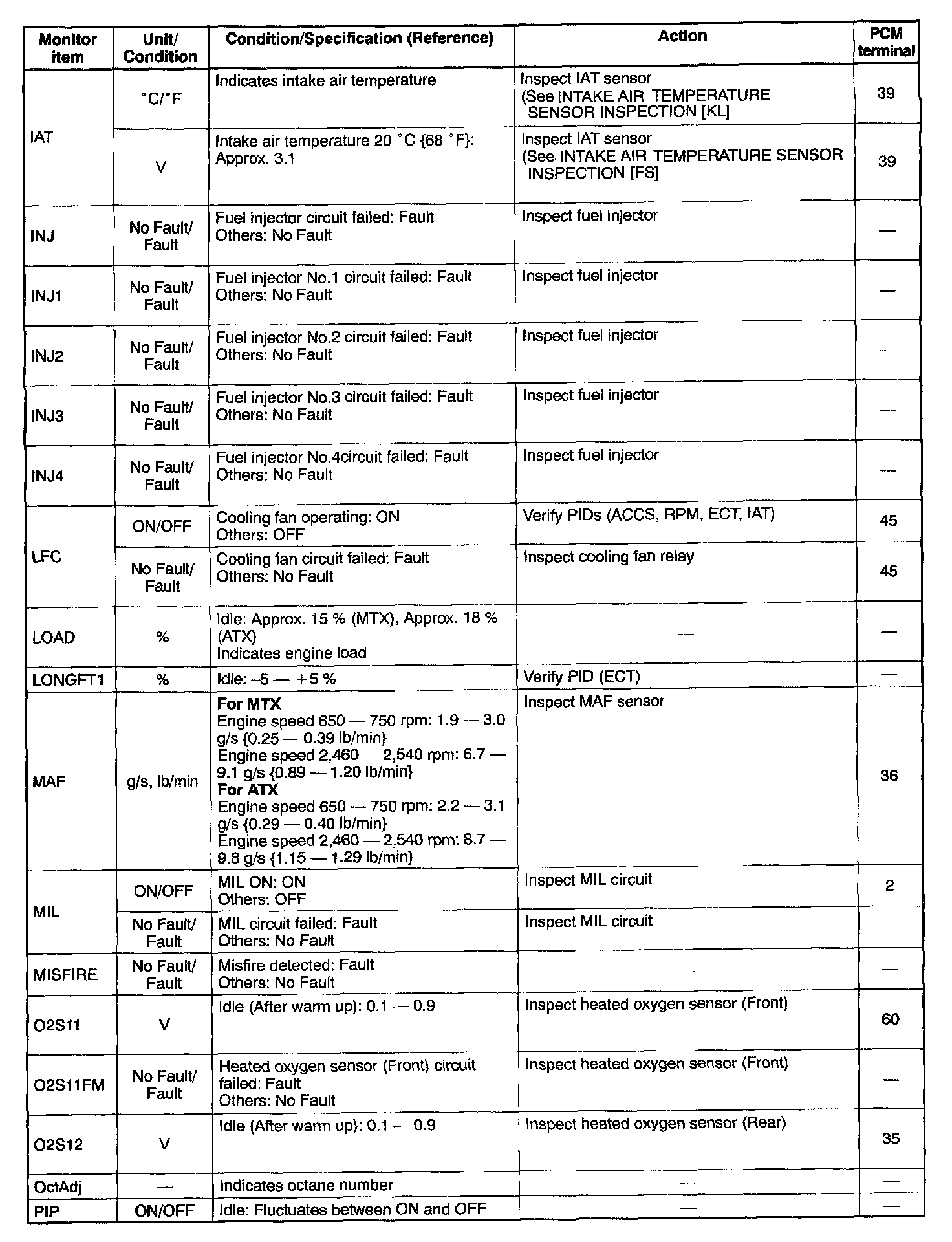

PID/DATA monitor item table
