System Specifications

General Specificationas

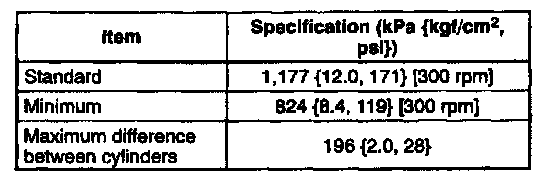

Compression Check

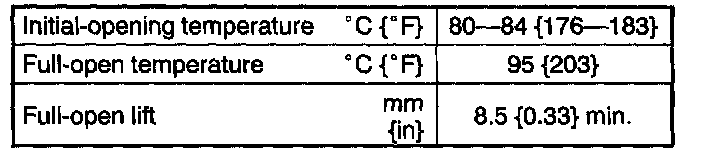

Thermostat

Valve clearance (Standard [Engine cold])
0.225 - 0.295 mm (0.0089 - 0.0116 inch)

Fuel pressure More than 147 kPa (21.3 psi)

Fuel line pressure
FS: 260 - 320 kPa (37 - 45 psi)
KL: 270 - 310 kPa (37 - 45 psi)

Tightening torque

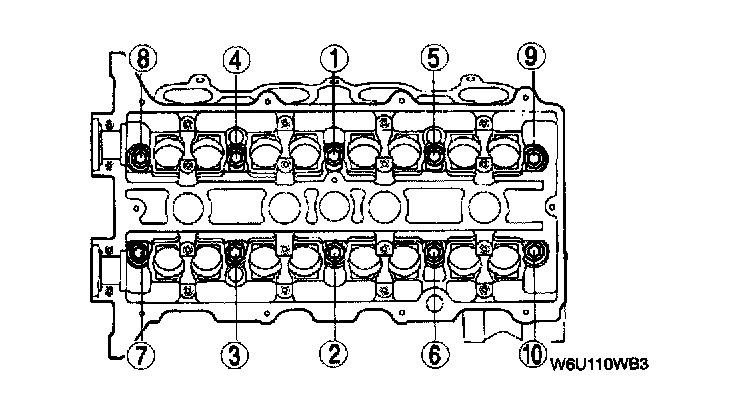

Cylinder Head bolts

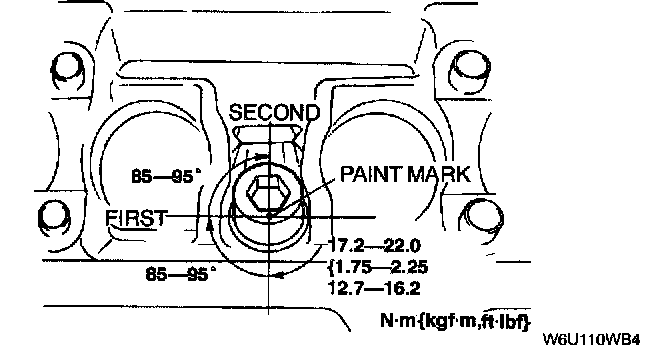

Step 1 17.2 - 22.0 Nm (1.75 - 2.25 kgf-m, 12.7 - 16.2 ft. lbs.)
Step 2 85 - 95 degrees in the sequence shown.





Step 3 Further tighten 85 - 95 degrees in the sequence as shown.

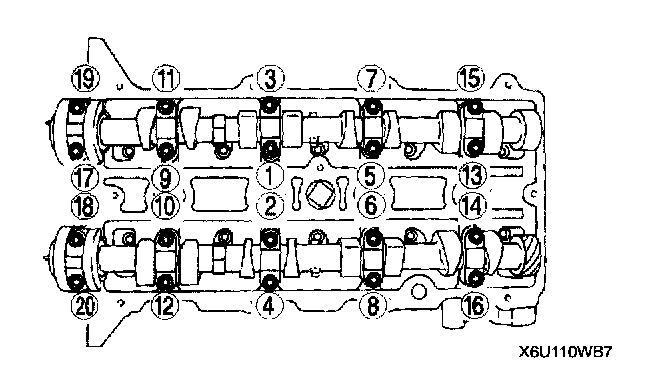

Camshaft cap bolts 11.3-14.2 Nm (8.3 - 10.5 ft. lbs)


Tightening torque exploded views

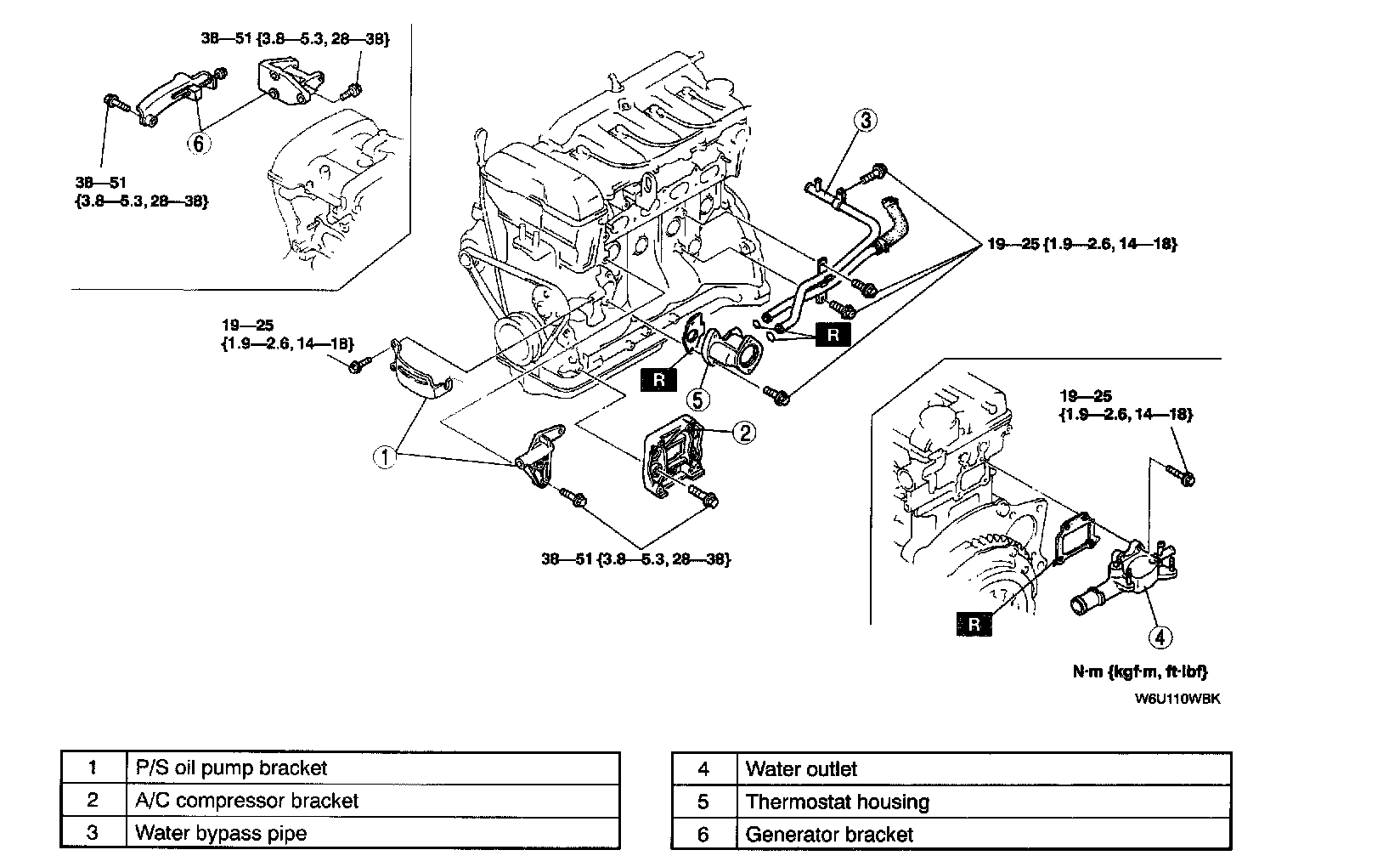

Timing components





Engine Assembly components

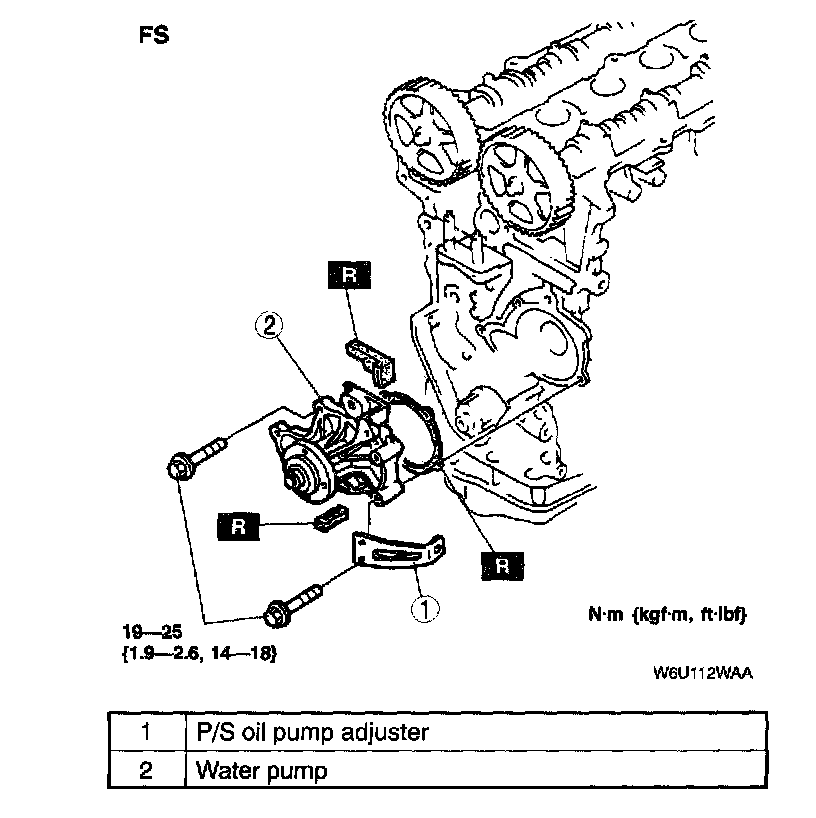

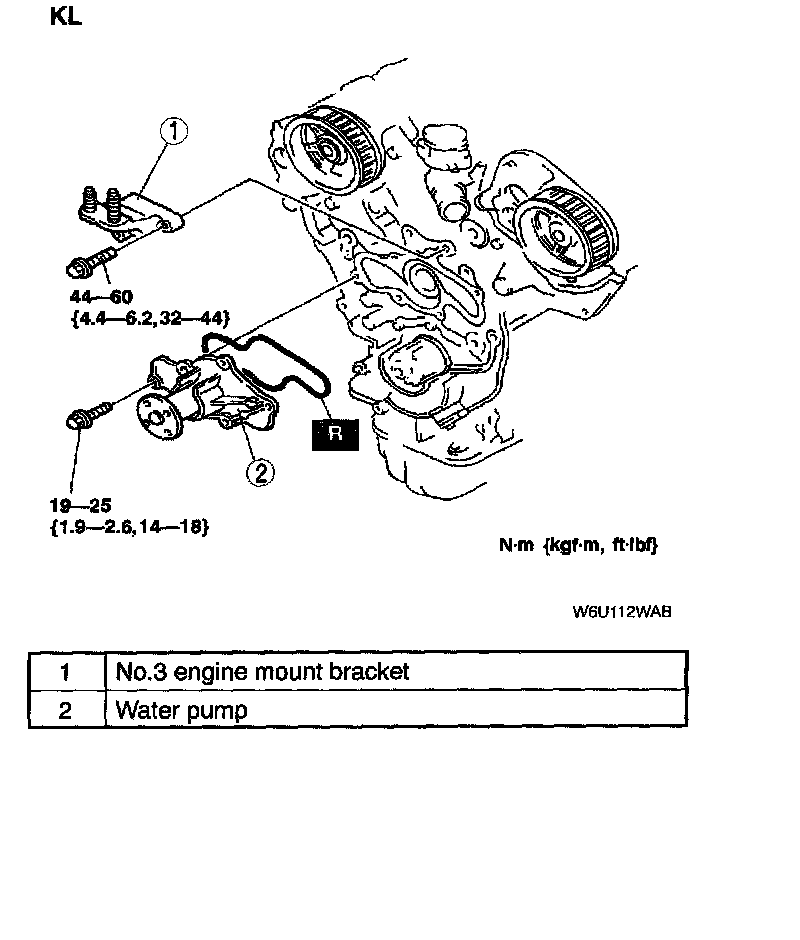

Water pump
