Front Seat

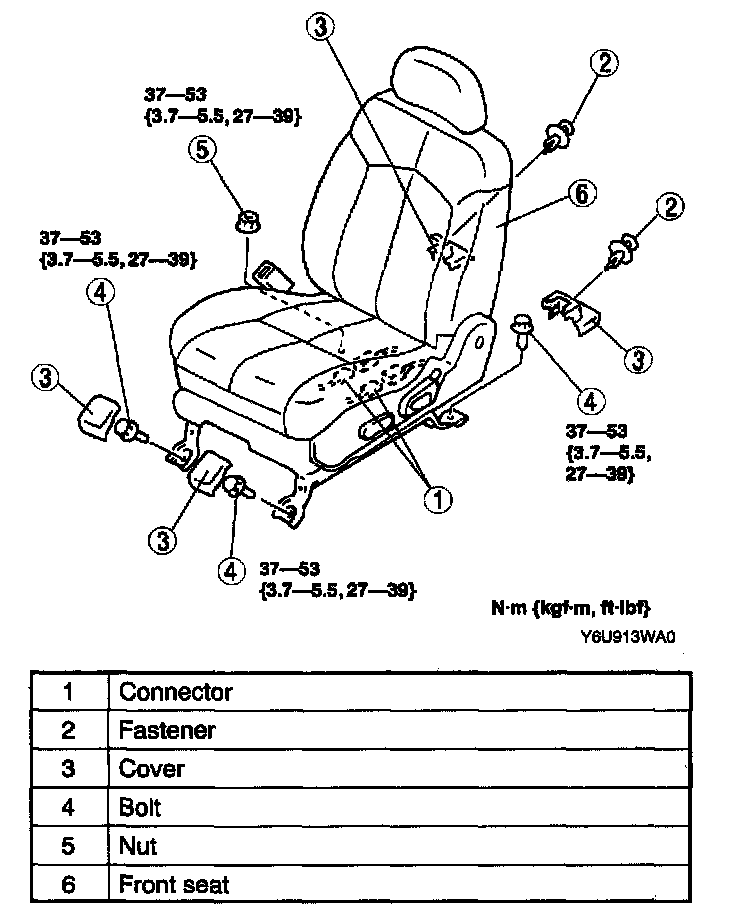

FRONT SEAT REMOVAL/INSTALLATIONWARNING: Handling the front seat (side air bag) Improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat. (See AIR BAG SYSTEM SERVICE WARNINGS.)
1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
FRONT SEAT DISASSEMBLY/ASSEMBLY

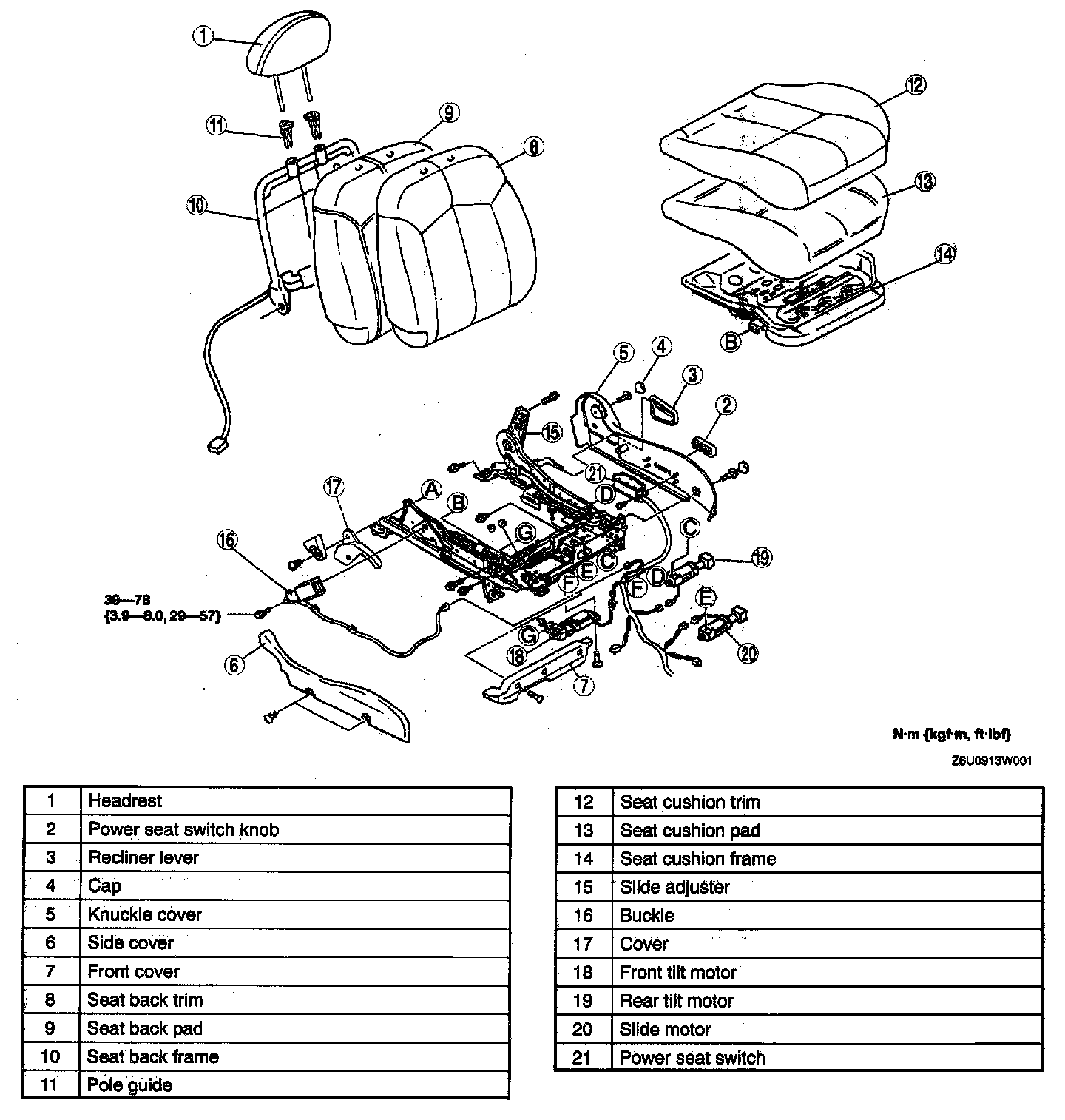

Power Seat
WARNING: Handling the front seat (side air bag) Improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat. (See AIR BAG SYSTEM SERVICE WARNINGS.)
1. Remove the side air bag module.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

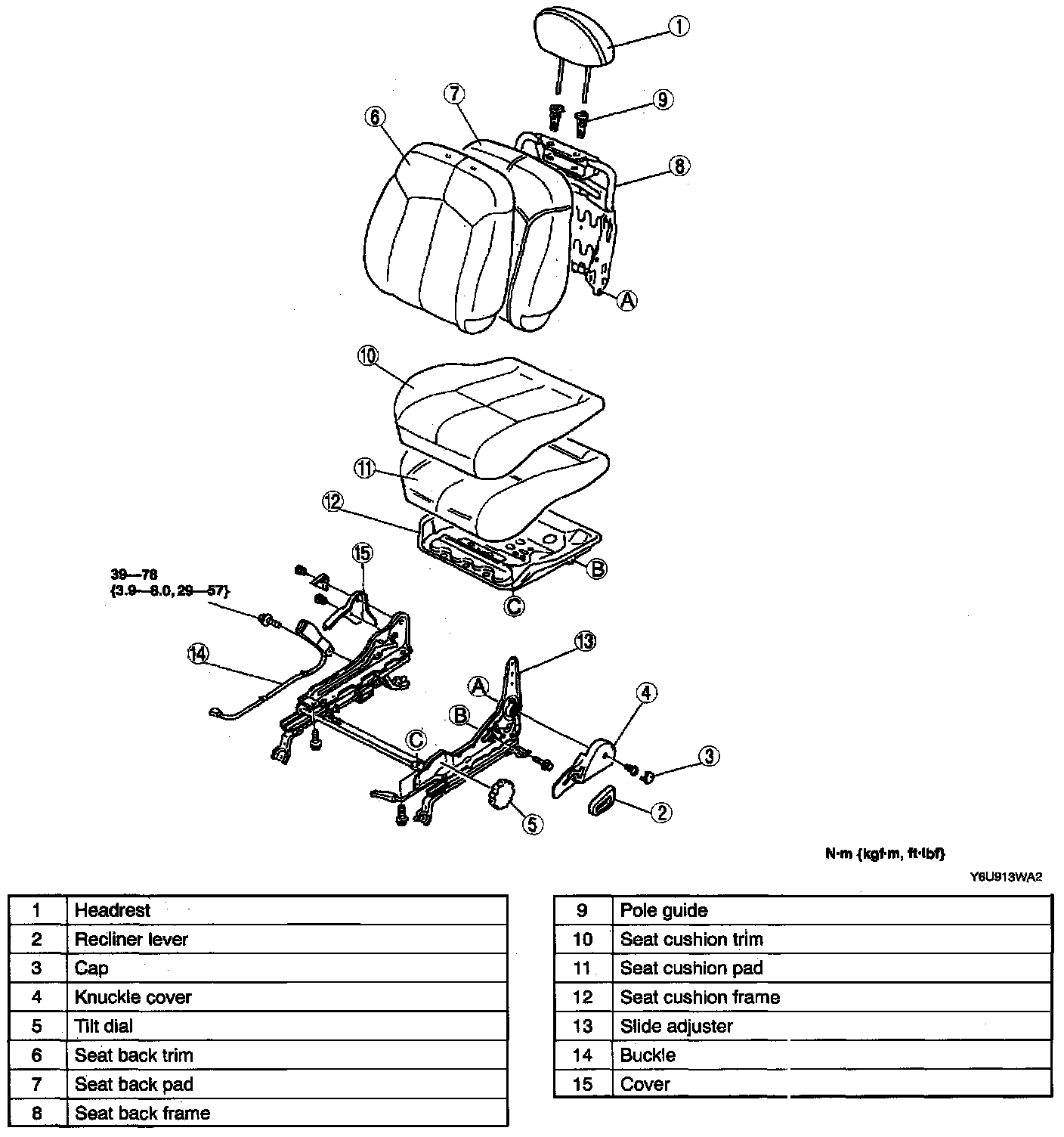

Manual Seat (Driver Seat)
WARNING: Handling the front seat (side air bag) improperly can accidentally deploy the side air big, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat. (See AIR BAG SYSTEM SERVICE WARNINGS.)
1. Remove the driver-side side air bag module.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

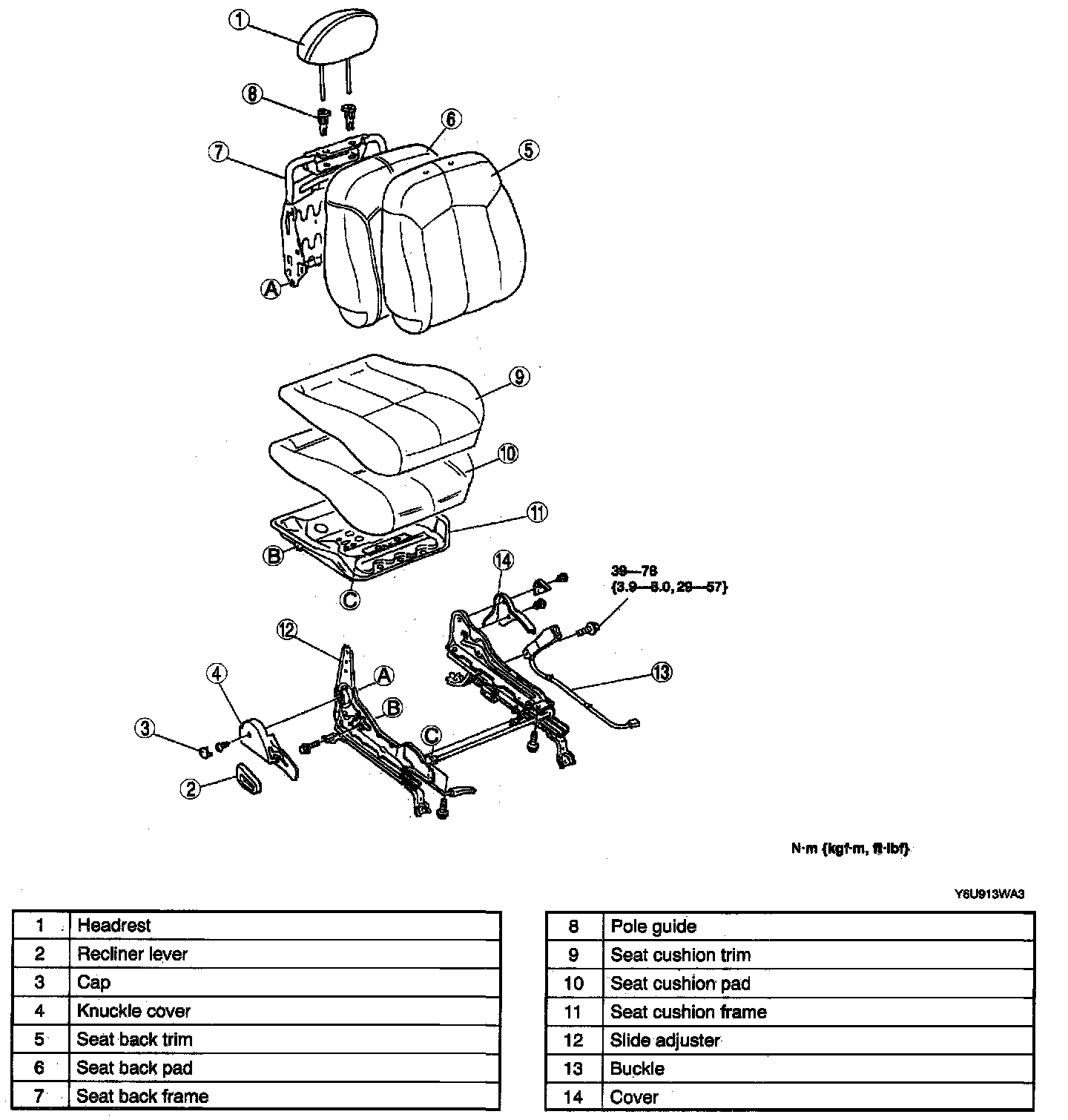

Manual Seat (Passenger Seat)
WARNING: Handling the front seat (side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat. (See AIR BAG SYSTEM SERVICE WARNINGS.)
1. Remove the passenger-side side air bag module.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
