Ignition Coil: Service and Repair

IGNITION COIL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

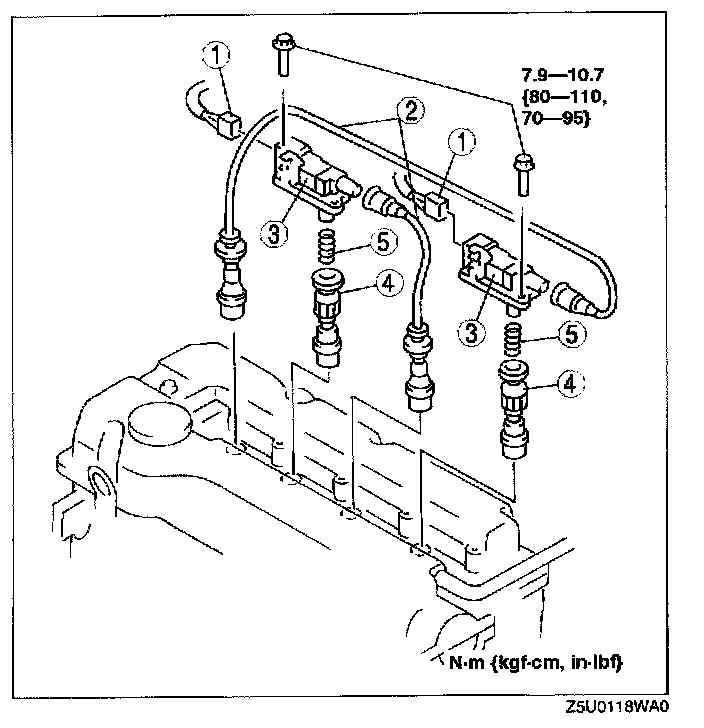

2. Remove in the order indicated below.
1. Connector
2. High-tension lead
3. Ignition coil
4. Plug cap
5. Spring

3. Install in the reverse order of removal.
