Blower Unit

BLOWER UNIT REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Remove the glove compartment.

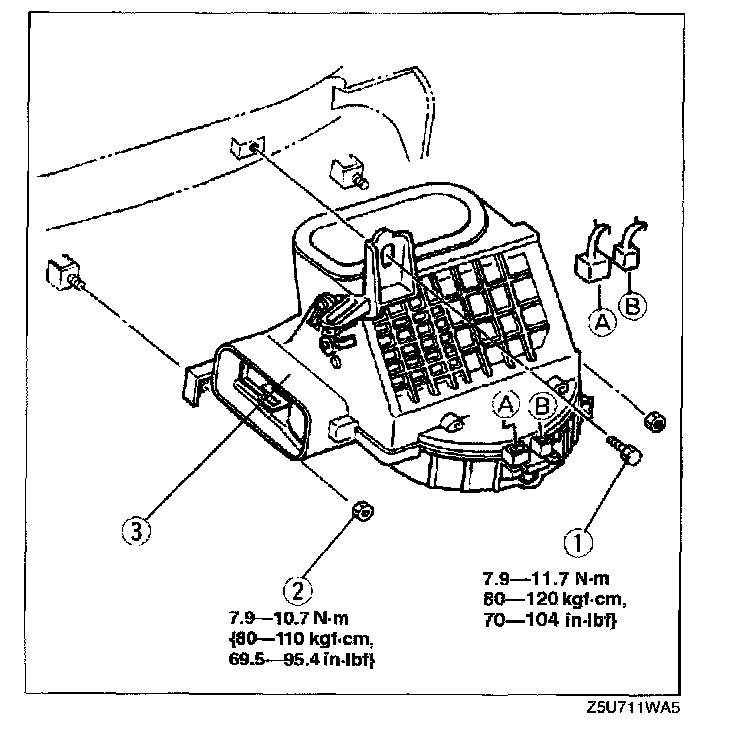

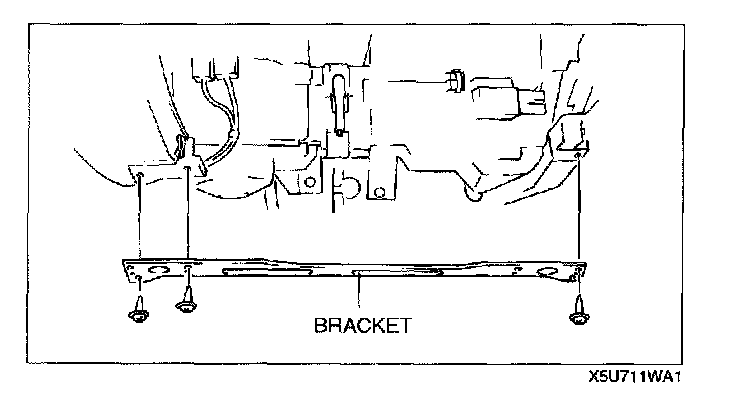

3. Remove the bracket.

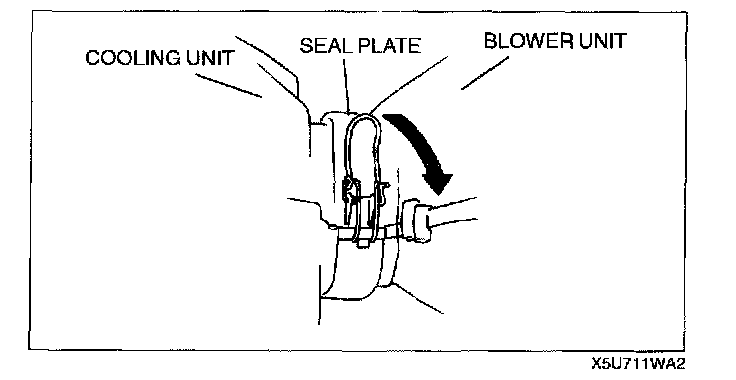

4. Remove the seal plate.




5. Remove in the order indicated below.
1. Bolt
2. Nut
3. Blower unit

6. Install in the reverse order of removal.

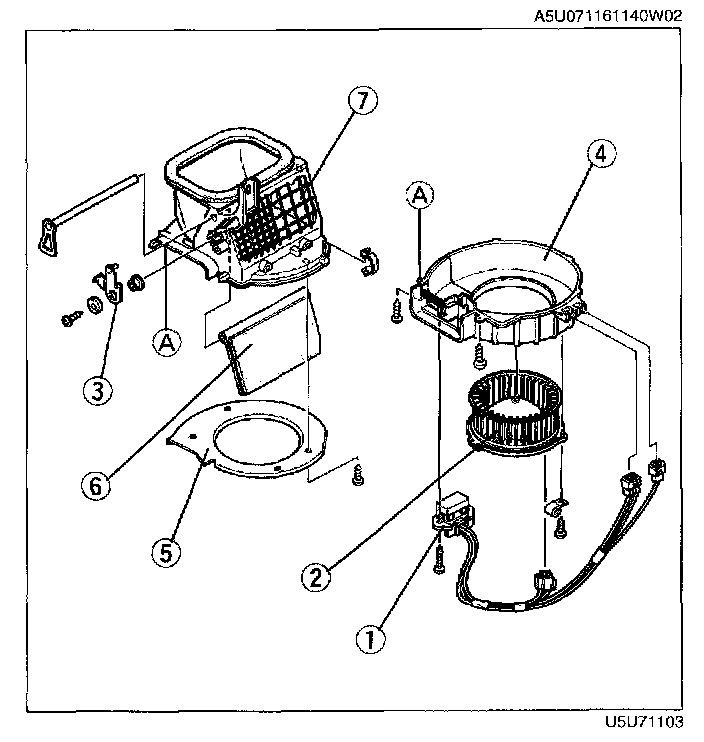

BLOWER UNIT DISASSEMBLY/ASSEMBLY




1. Disassemble in the order indicated below.
1. Resistor
2. Blower motor
3. Air intake link
4. Case (bottom)
5. Air guider
6. Air intake door
7. Case (top)

2. Assemble in the reverse order of disassembly.
