Compressor Clutch: Service and Repair

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY

1. Remove the A/C compressor.

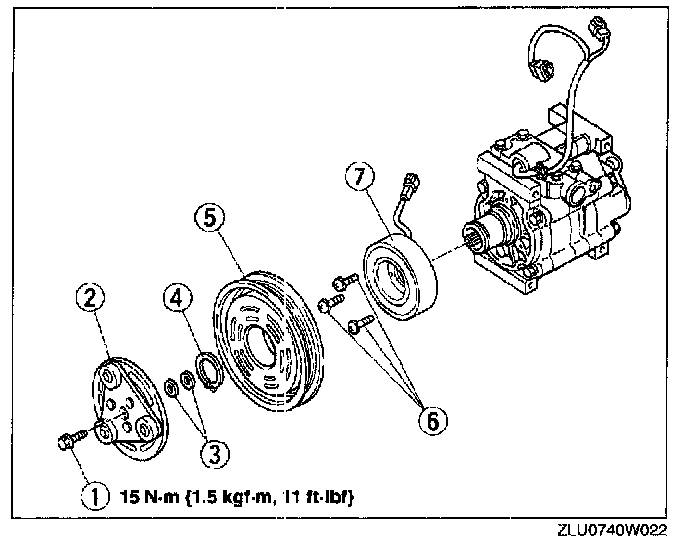

2. Disassemble in the order as indicated below.




1. Bolt
2. Pressure plate
3. Shim
4. Snap ring
5. A/C compressor pulley
6. Screw
7. Stator

3. Assemble in the reverse order of disassembly.
4. Adjust the magnetic clutch.

Bolt Disassembly Note

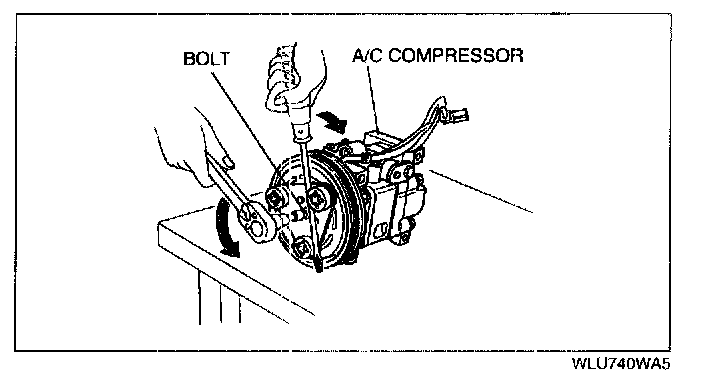

1. When removing the bolt, hold the pressure plate in place as shown in the figure.
