Compressor Clutch: Testing and Inspection
MAGNETIC CLUTCH INSPECTIONStator
1. Disconnect the magnetic clutch connector.

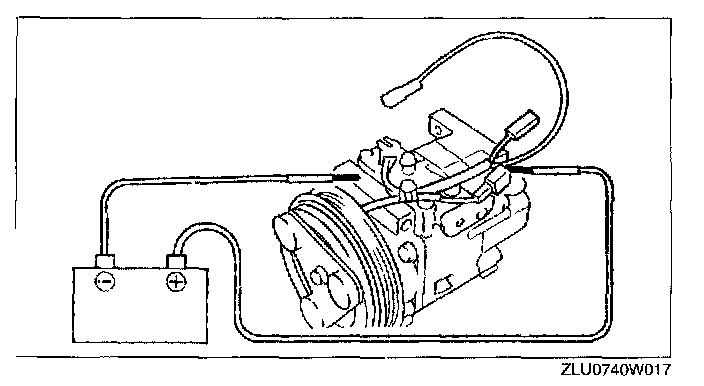

2. Connect battery positive voltage to terminal A of magnetic clutch and ground to A/C compressor body.
3. Verify that the magnetic clutch operates.
- If not as specified, replace the stator.
