Power Transistor HVAC: Testing and Inspection

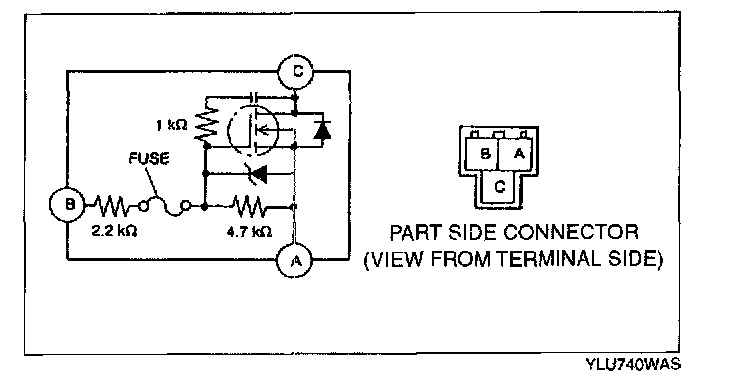

POWER MOS FET INSPECTION

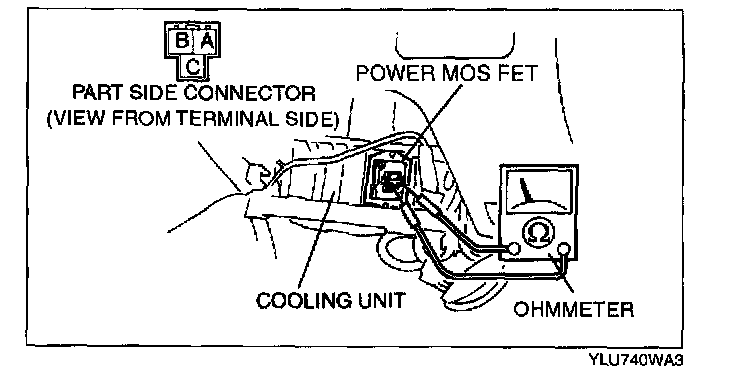

1. Disconnect the power MOS FET connector.

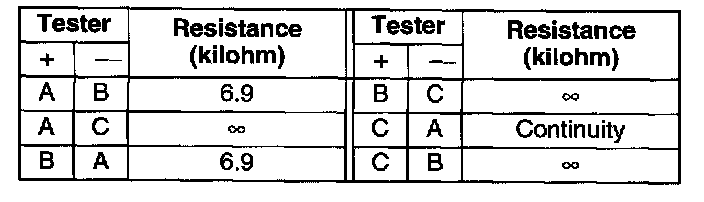

2. Verify that the resistance between the terminals of the power MOS FET connector (male) is as shown.
- If not as specified, replace the power MOS FET.
