EGR Boost Control Solenoid: Testing and Inspection

SOLENOID VALVE INSPECTION

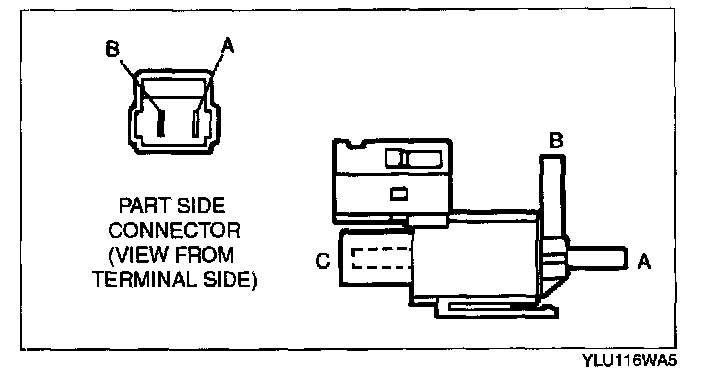

EGR Boost Sensor Solenoid Valve

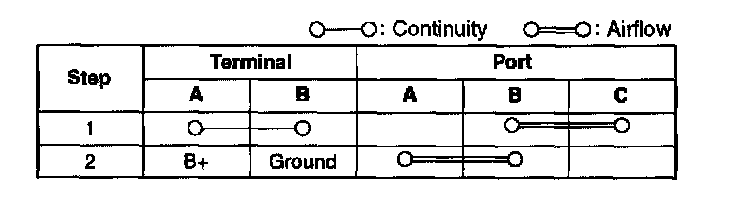

1. Inspect airflow between ports of the solenoid valve under the following condition/Manifold absolute pressure (MAP) sensor solenoid valve.
- If not as specified replace the manifold absolute pressure sensor solenoid valve.
