Rear

CALIPER (REAR) DISASSEMBLY/ASSEMBLY

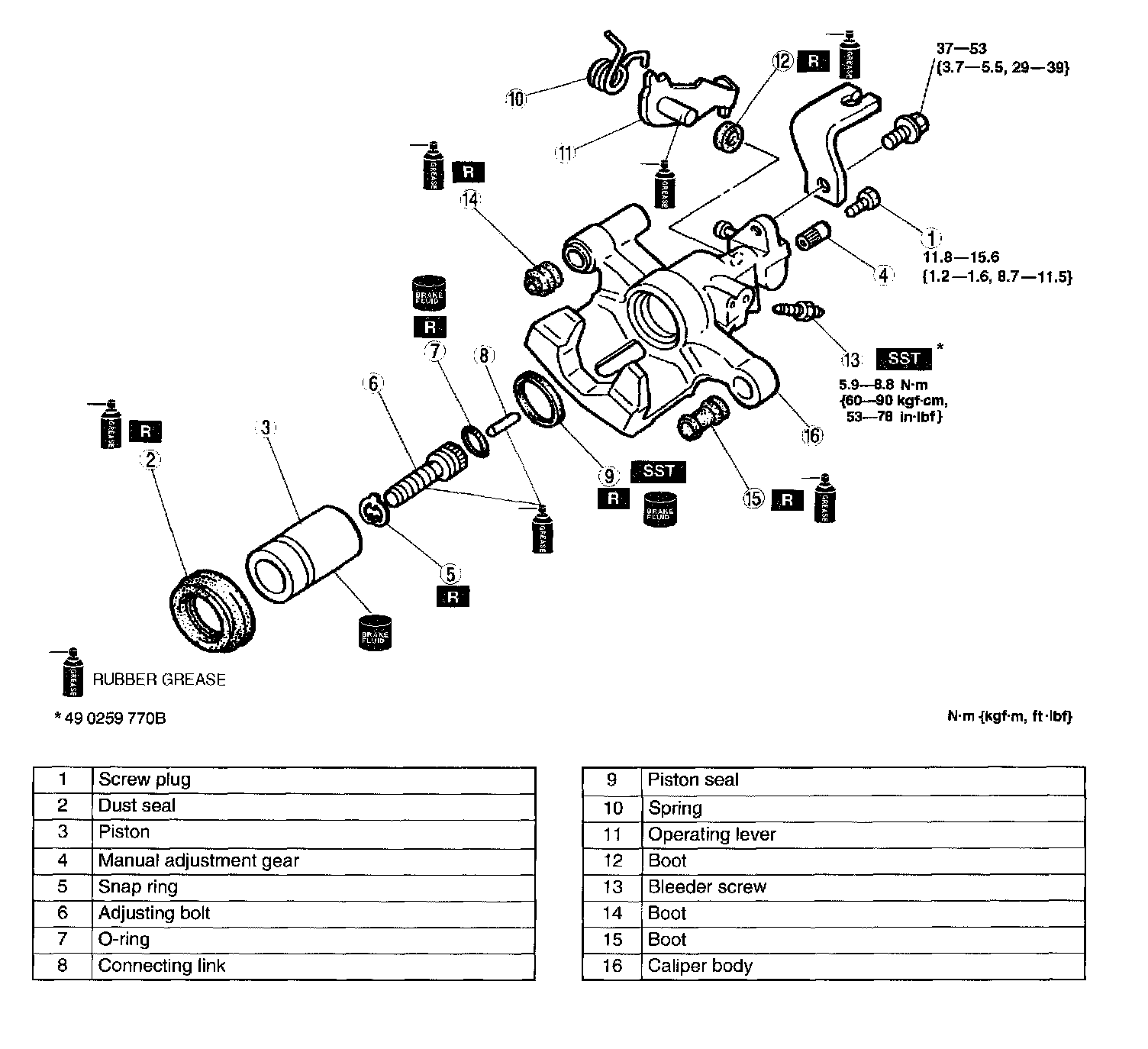

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.





Piston Disassembly Note

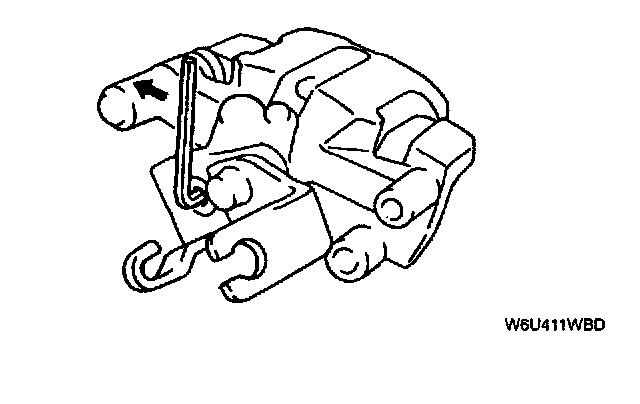

^ Turn the adjustment gear clockwise with an Allen wrench to remove the piston from the adjustment gear. (Turn the adjustment gear until it becomes easy to turn.)





Piston Assembly Note

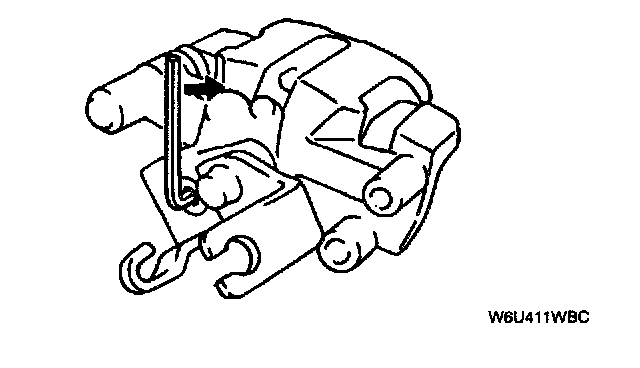

^ Insert the piston into the caliper and turn the adjustment gear counterclockwise with an Allen wrench to pull the piston inward. (Turn until it stops.)
