EGR Valve: Testing and Inspection

EGR VALVE INSPECTION

Resistance Inspection

NOTE: Perform the following test only when directed.

1. Disconnect the negative battery cable.

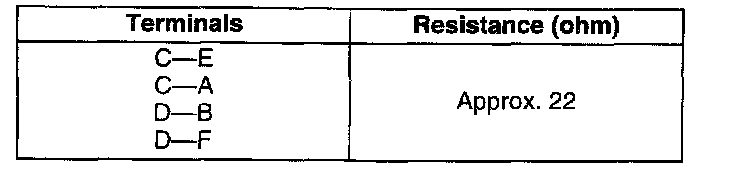

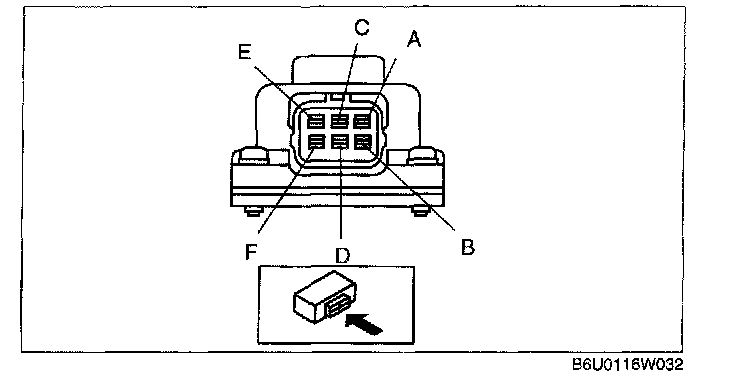

2. Inspect resistance of the EGR valve coils.
- If not as specified, replace the EGR valve.
- If as specified, carry out the "Circuit Open/Short Inspection".

Circuit Open/Short Inspection

1. Disconnect the PCM connector.

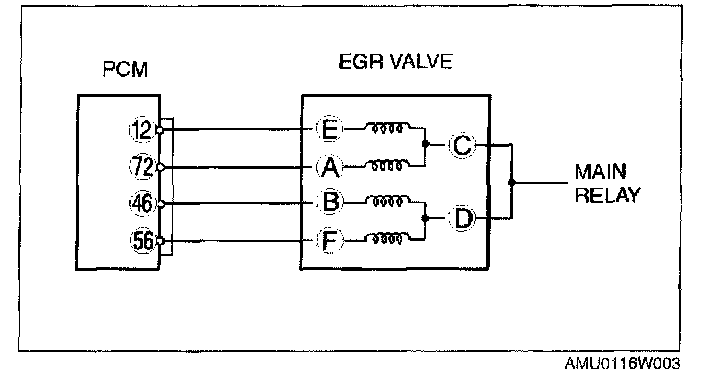

2. Inspect the following wiring harness for open or short (Continuity check).

Open circuit

- If there is no continuity, the circuit is open. Repair or replace the harness.

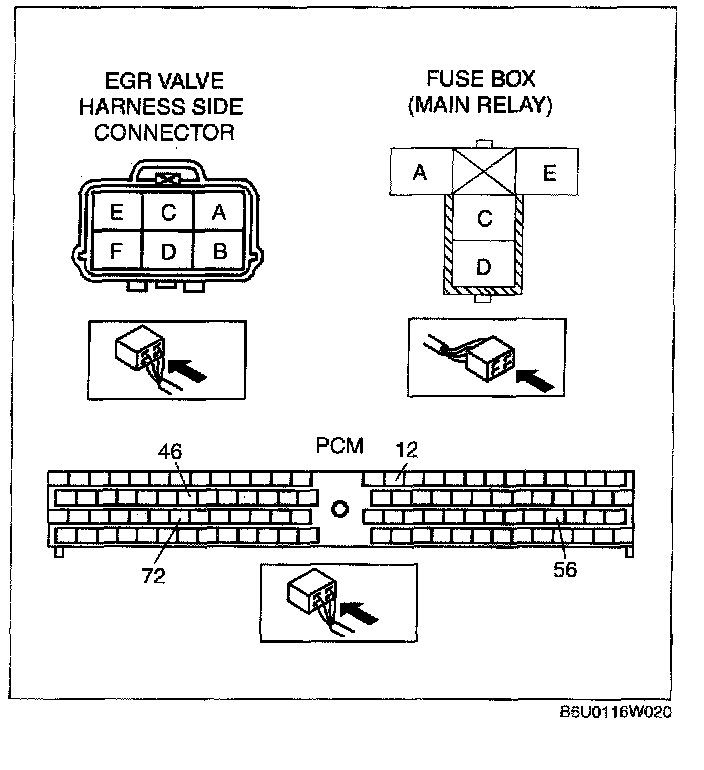

- EGR valve terminal E (harness-side) and PCM terminal 12
- EGR valve terminal A (harness-side) and PCM terminal 72
- EGR valve terminal B (harness-side) and PCM terminal 46
- EGR valve terminal F (harness-side) and PCM terminal 56
- EGR valve terminal C or D (harness-side) and main relay terminal C (harness-side)

Short circuit

- If there is continuity, the circuit is shorted. Repair or replace the harness.
- EGR valve terminal E (harness-side) and GND
- EGR valve terminal A (harness-side) and GND
- EGR valve terminal B (harness-side) and GND
- EGR valve terminal F (harness-side) and GND
- EGR valve terminal C or D (harness-side) and power supply

3. Remove the EGR valve, and inspect for any damage or clogging.
- If there is no damage or no clogging, replace the EGR valve.
