Starter Removal/Installation
STARTER REMOVAL/INSTALLATIONWARNING: When the battery cables are connected, touching the vehicle body with starter terminal B generates sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.
1. Remove the battery and the battery tray.
2. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
3. Disconnect the selector cable and the selector cable bracket. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

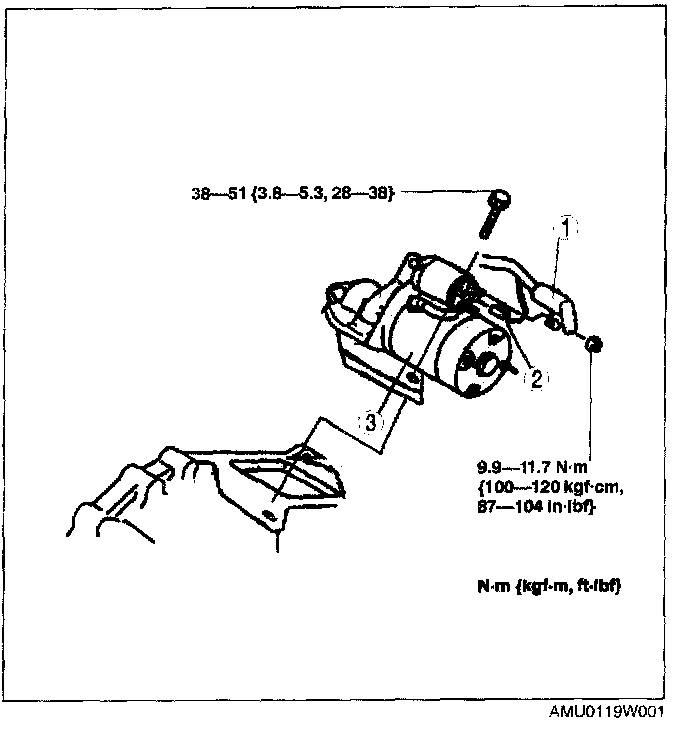

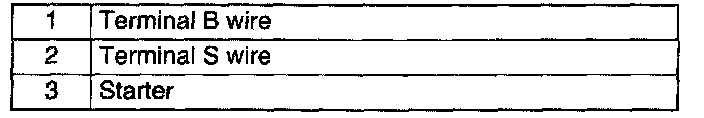

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
