Starter Motor: Service and Repair
STARTER REMOVAL/INSTALLATIONWARNING: When the battery cable are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.
1. Disconnect the negative battery cable.
2. Remove the intake manifold bracket.
3. Remove the oil filler tube. (AT)

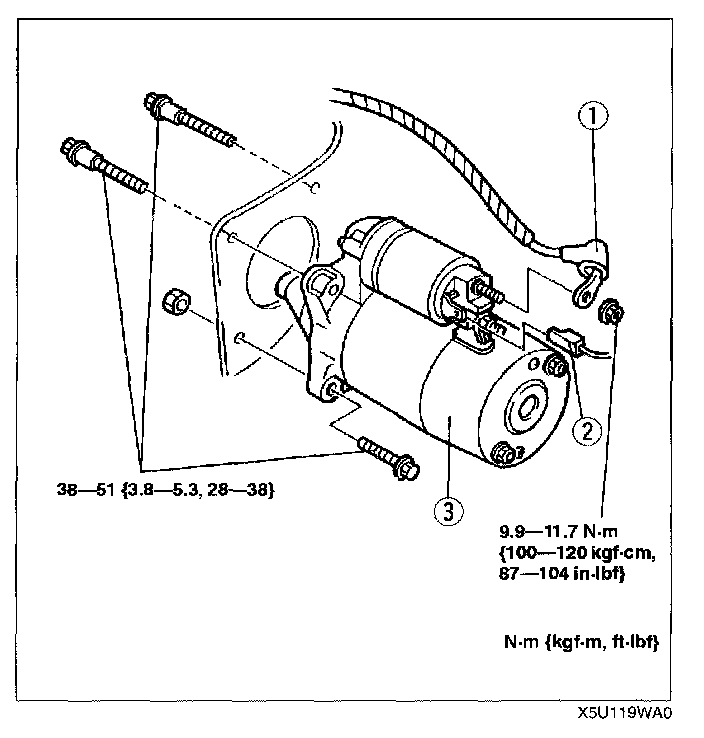

4. Remove in the order indicated below.
1. Terminal B wire
2. Terminal S wire
3. Starter (See Starter Installation Note)
5. Install in the reverse order of removal.

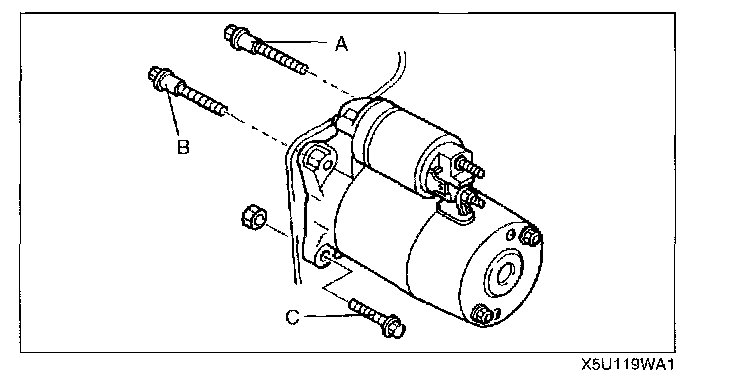

Starter Installation Note
1. Temporarily tighten the starter fitting bolt A.
2. Tighten the starter fitting bolts B and C.
Tightening torque: 44 - 60 N.m {4.4 - 6.2 kgf.m, 32 - 44 ft.lbf}
3. Tighten the starter fitting bolt A.
Tightening torque: 44 - 60 N.m {4.4 - 6.2 kgf.m, 32 - 44 ft.lbf}

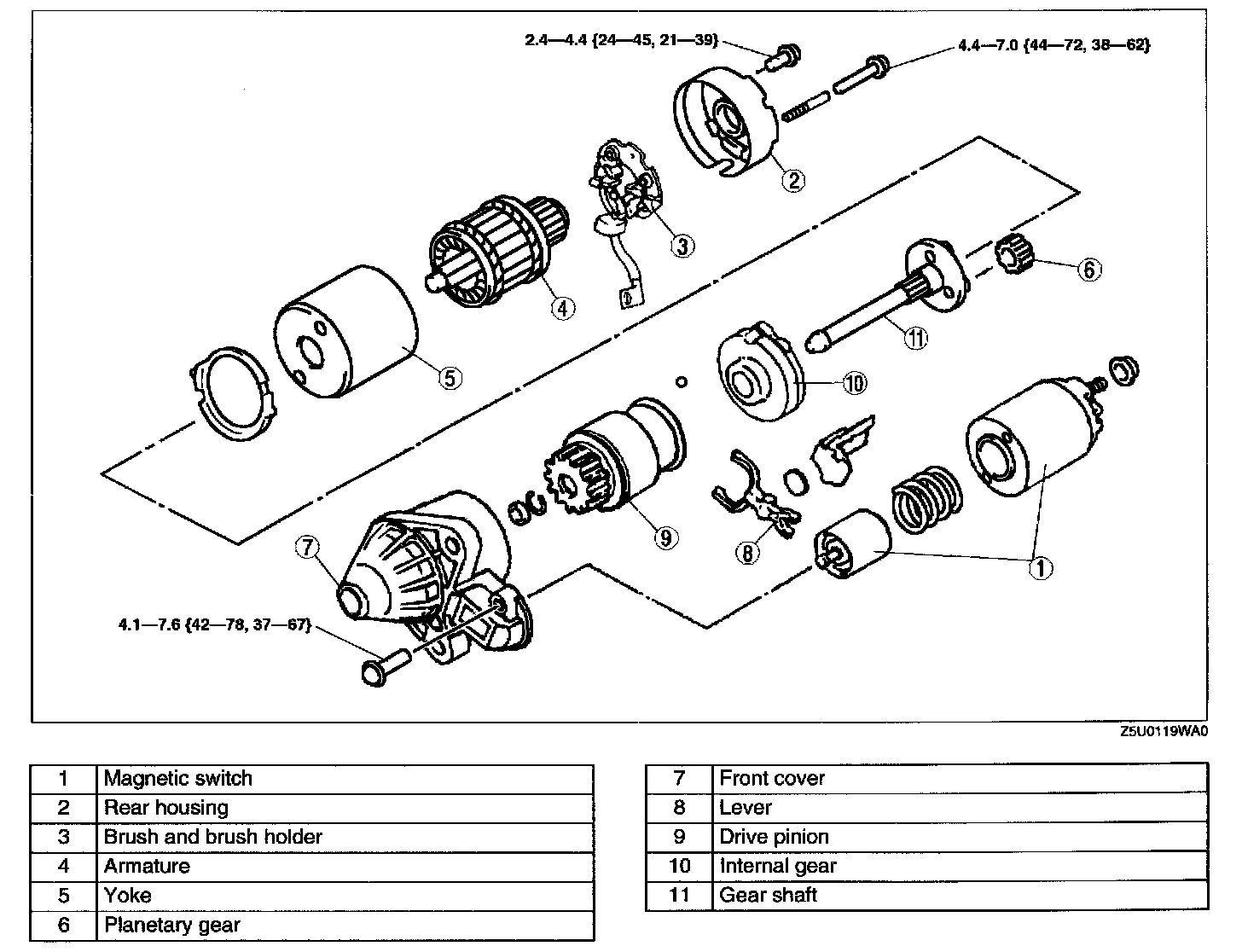

STARTER DISASSEMBLY/ASSEMBLY
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly
