Drive Belt: Adjustments

DRIVE BELT ADJUSTMENT [FS]





Generator

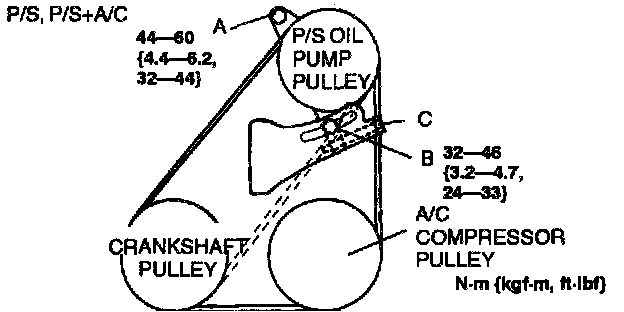

P/S, P/S + A/C

1. Loosen mounting bolt A and B.





Generator





P/S, P/S + A/C

2. Adjust the belt deflection or tension by turning the adjusting bolt C.

Caution:
- If the belt is replaced with a new one or the belt has been on a running engine for less than 5 minutes, adjust deflection or tension to "New" specification.
- If the belt has been on a running engine for more than 5 minutes, adjust deflection or tension to "Used" specification.





Deflection

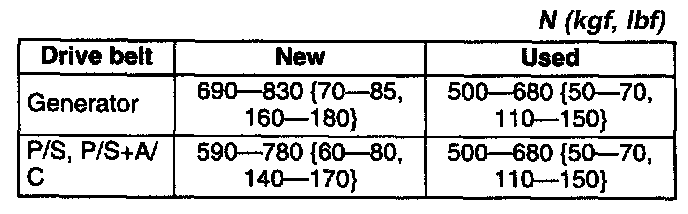

Tension





3. Tighten mounting bolt A and B.
4. Inspect the belt deflection or tension.
- If not as specified, repeat from Step 1.
