Washer Fluid Level Indicator: Service and Repair

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the washer tank.

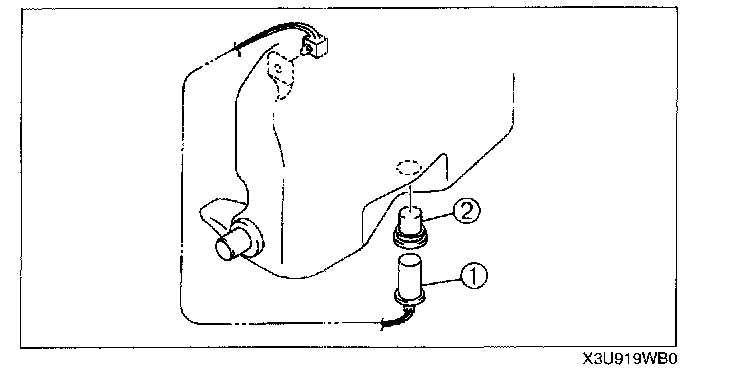

3. Remove in the order indicated below.
1. Washer fluid-level sensor
2. Grommet

4. Install in the reverse order of removal.
