Front Door Window Glass: Service and Repair

DOOR GLASS AND GUIDE REMOVAL/INSTALLATION

1. Lower or raise the front door glass so that the distance from the top of the front door glass at the molding is 225 mm {8.86 in}.
2. Disconnect the negative battery cable.
3. Remove the door screen. (See DISASSEMBLY/ASSEMBLY.)

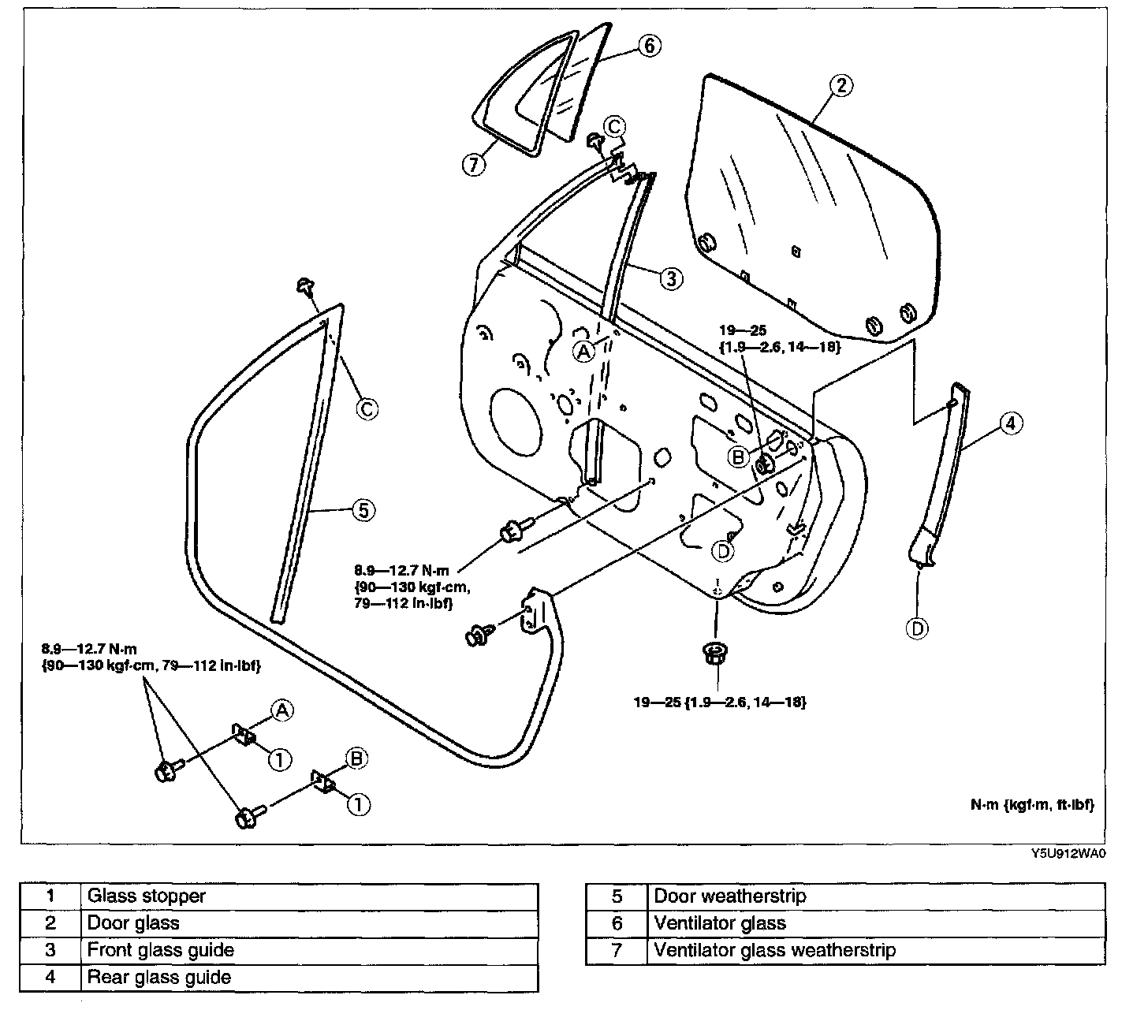

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Adjust the door glass.
