Windshield Washer Motor: Service and Repair

WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the windshield washer tank.

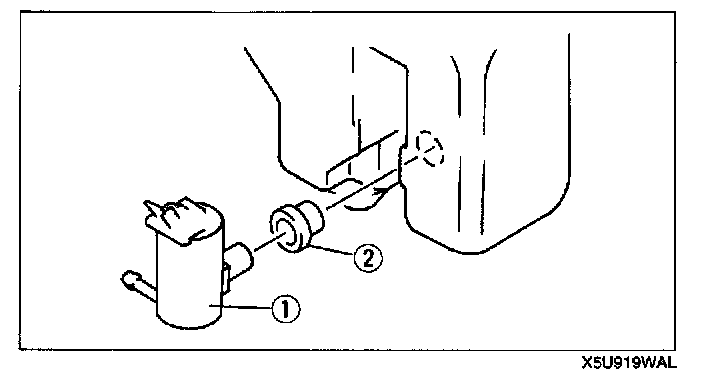

3. Remove in the order indicated below.
1. Windshield washer motor
2. Grommet

4. Install in the reverse order of removal.
