Front

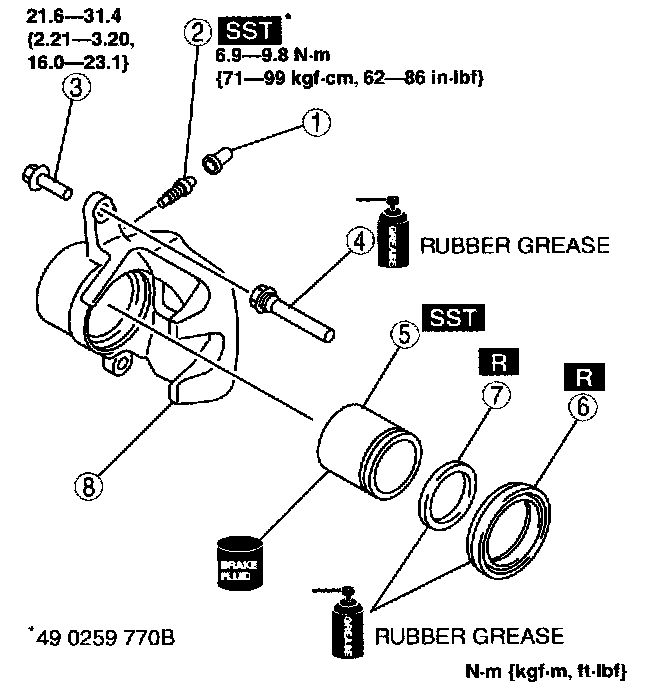

CALIPER (FRONT) DISASSEMBLY/ASSEMBLY

Part 1:

Part 2:

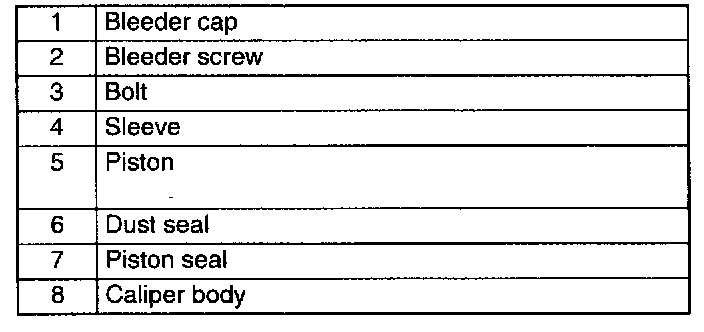

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Piston Disassembly Note

Caution:
^ The piston could be damaged if blown out with great force. Blow the compressed air slowly to prevent the piston from suddenly popping out.

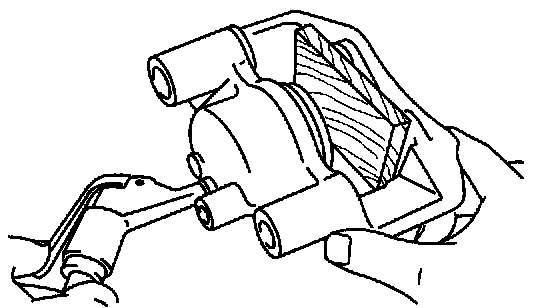

1. Insert a piece of wood in the caliper as shown in the figure, and then blow compressed air through the bleeder screw hole to remove the piston from the caliper body.
