Pulsair Valve Solenoid: Service and Repair

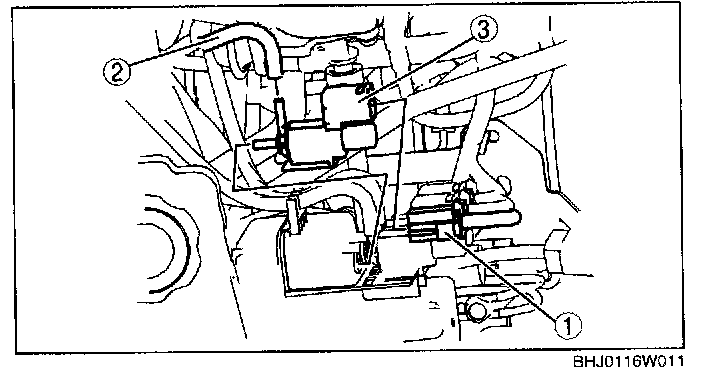

SECONDARY AIR INJECTION (AIR) SOLENOID VALVE REMOVAL/INSTALLATION

1. Remove the extension manifold (upper). (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION).

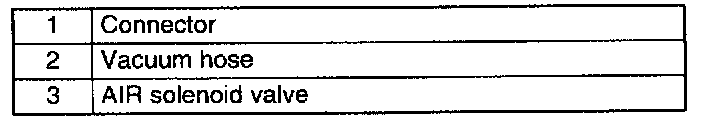

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
