Glove Compartment: Service and Repair

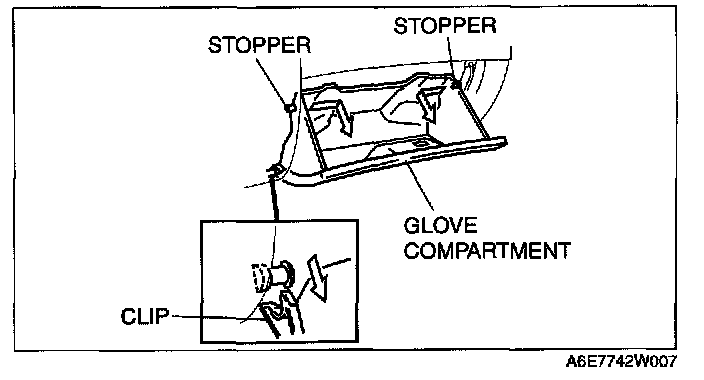

GLOVE COMPARTMENT REMOVAL/INSTALLATION

1. Remove the dumper clip.




2. Bend the stoppers inward to remove.
3. Turn the glove compartment downward and pull the clips to remove it.
4. Install in the reverse order of removal.
