Brake Proportioning/Combination Valve: Service and Repair

DUAL PROPORTIONING VALVE (WITHOUT ABS/TCS) AND BRAKE PIPE JOINT (WITH ABS/TCS) REPLACEMENT

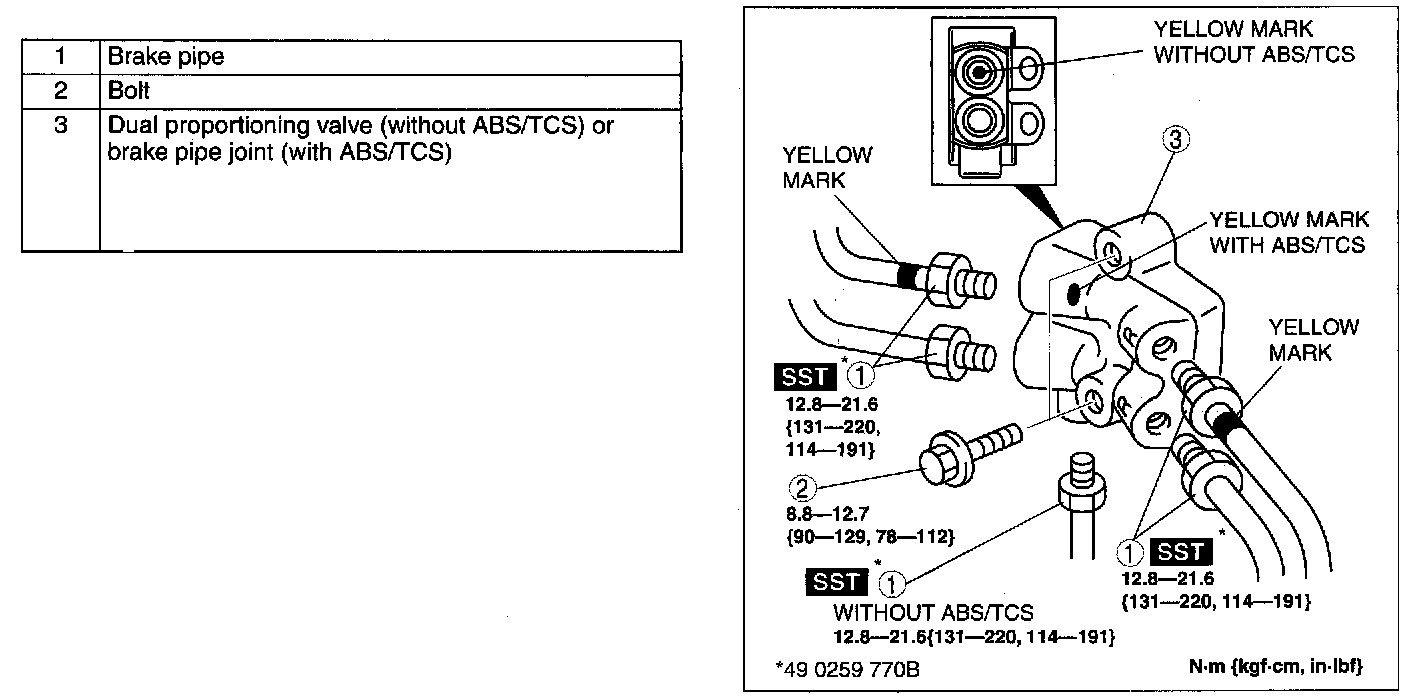

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

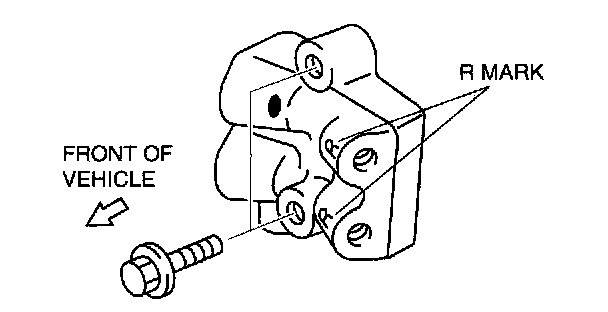

Dual Proportioning Valve (Without ABS/TCS) or Brake Pipe Joint (With ABS/TCS) Installation Note





1. Install the dual proportioning valve (without ABS/ TCS) or brake pipe joint (with ABS/TCS) so that the R mark faces the, left side of the vehicle.
