Voltage Signal: Testing and Inspection

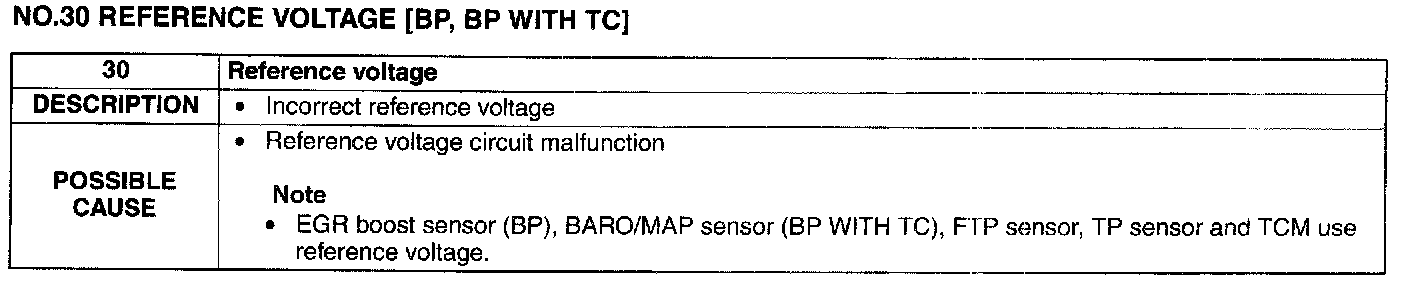

Description/Possible Cause:

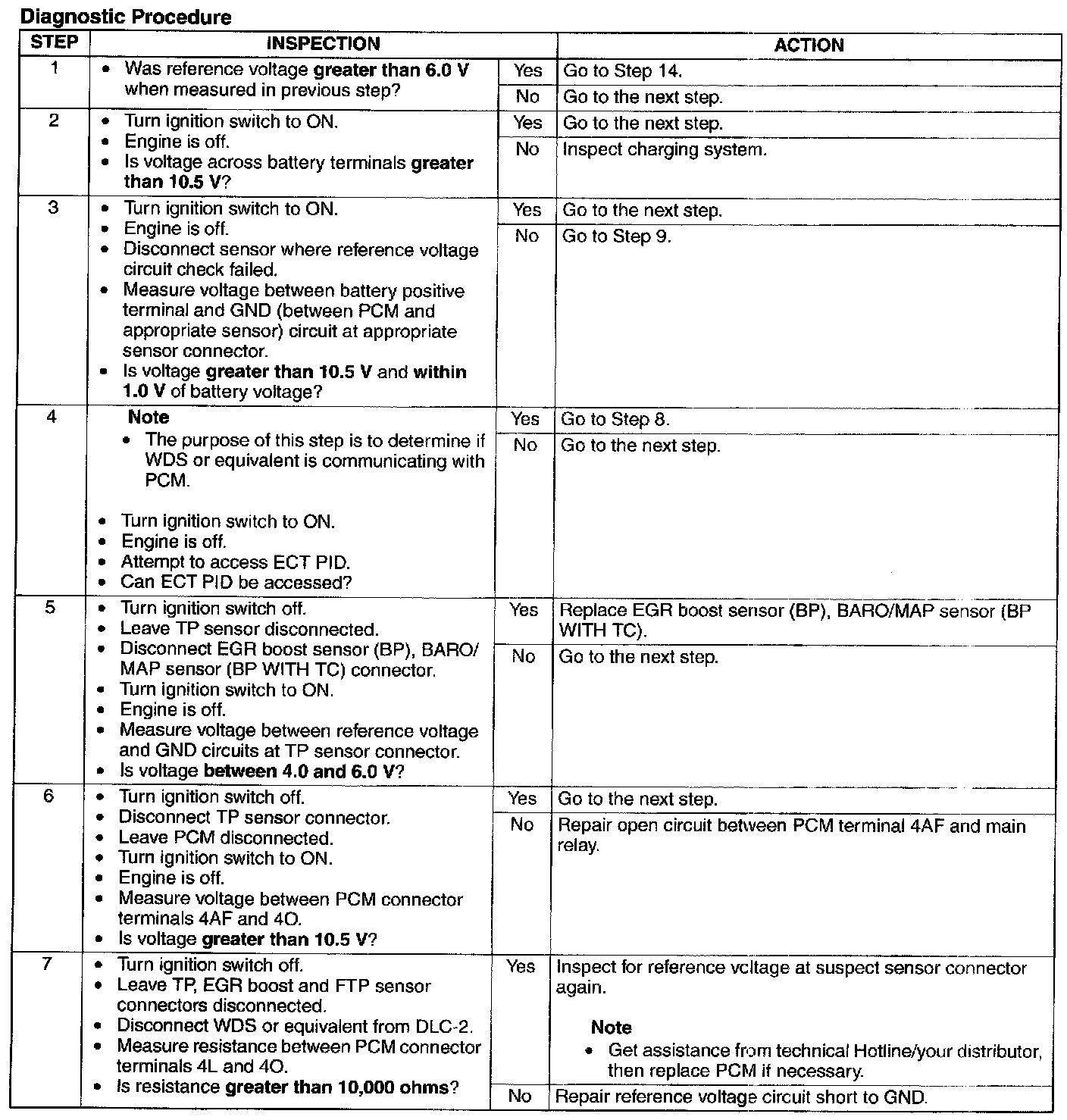

Step 1 - 7:

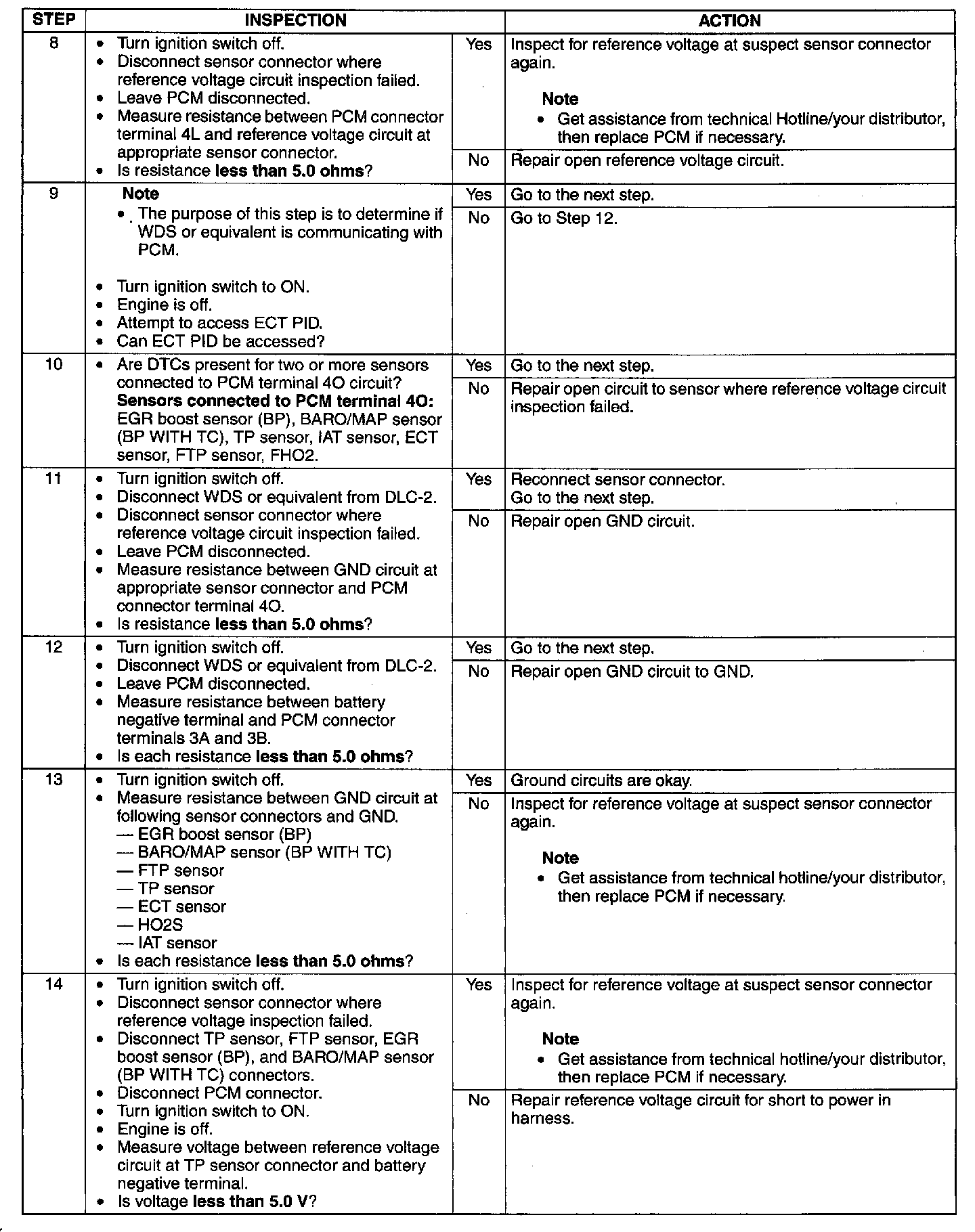

Step 8 - 14:

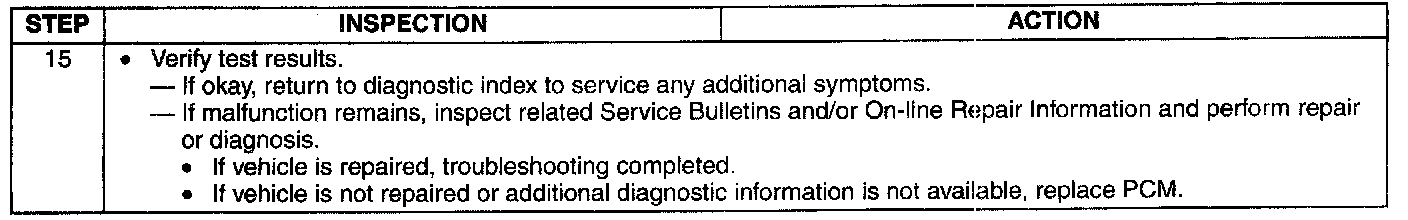

Step 15:
