Leak Detection Pump: Service and Repair

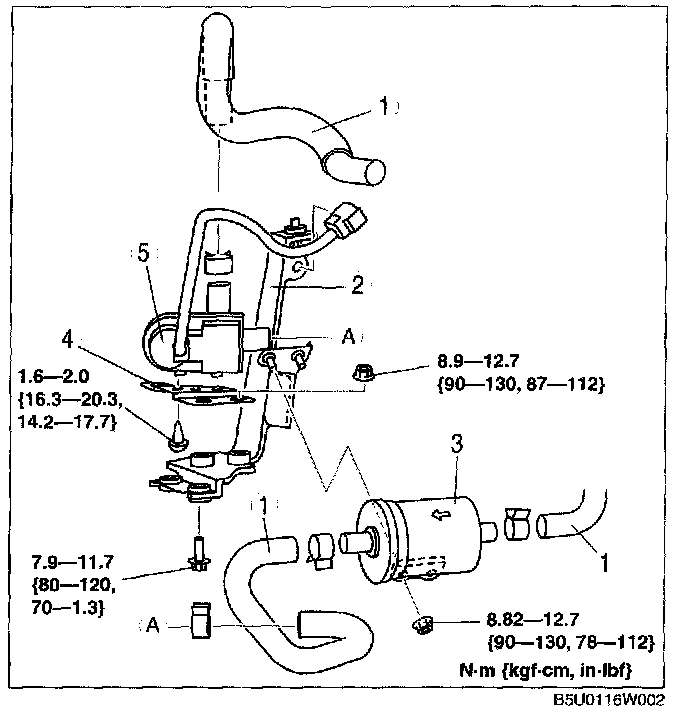

EVAPORATIVE EMISSION (EVAP) SYSTEM LEAK DETECTION PUMP REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Raise the rear of the vehicle and support it with safety stands.

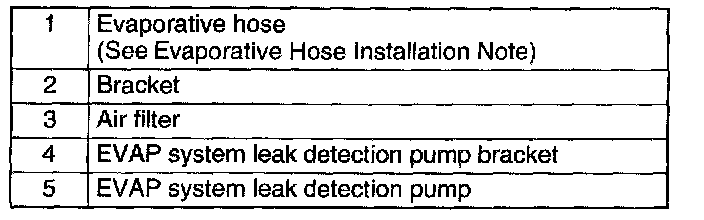

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Evaporative Hose Installation Note
1. Completely insert the evaporative nose into the EVAP system leak detection pump.
