Parking Brake Lever: Service and Repair

PARKING BRAKE LEVER REMOVAL/INSTALLATION
1. To remove the front and rear parking brake cables, perform the following and remove the heat insulator.

LF, L3
1. Remove the main silencer.
2. Remove the heat insulator.

L3 WITH TC
1. Remove the member.
2. Remove the silencer installation nuts.

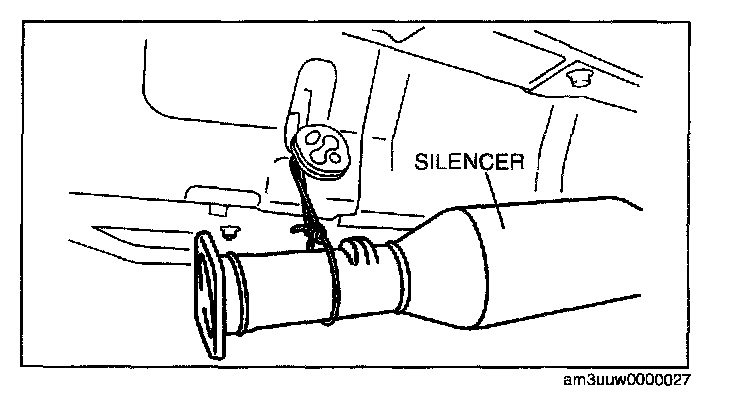

3. Disconnect the hanger rubber except for the one installed to the rear end of the vehicle from the silencer, and suspend the silencer using rope.
4. Remove the heat insulator.

2. To remove the parking brake lever and front parking brake cable, remove the console.

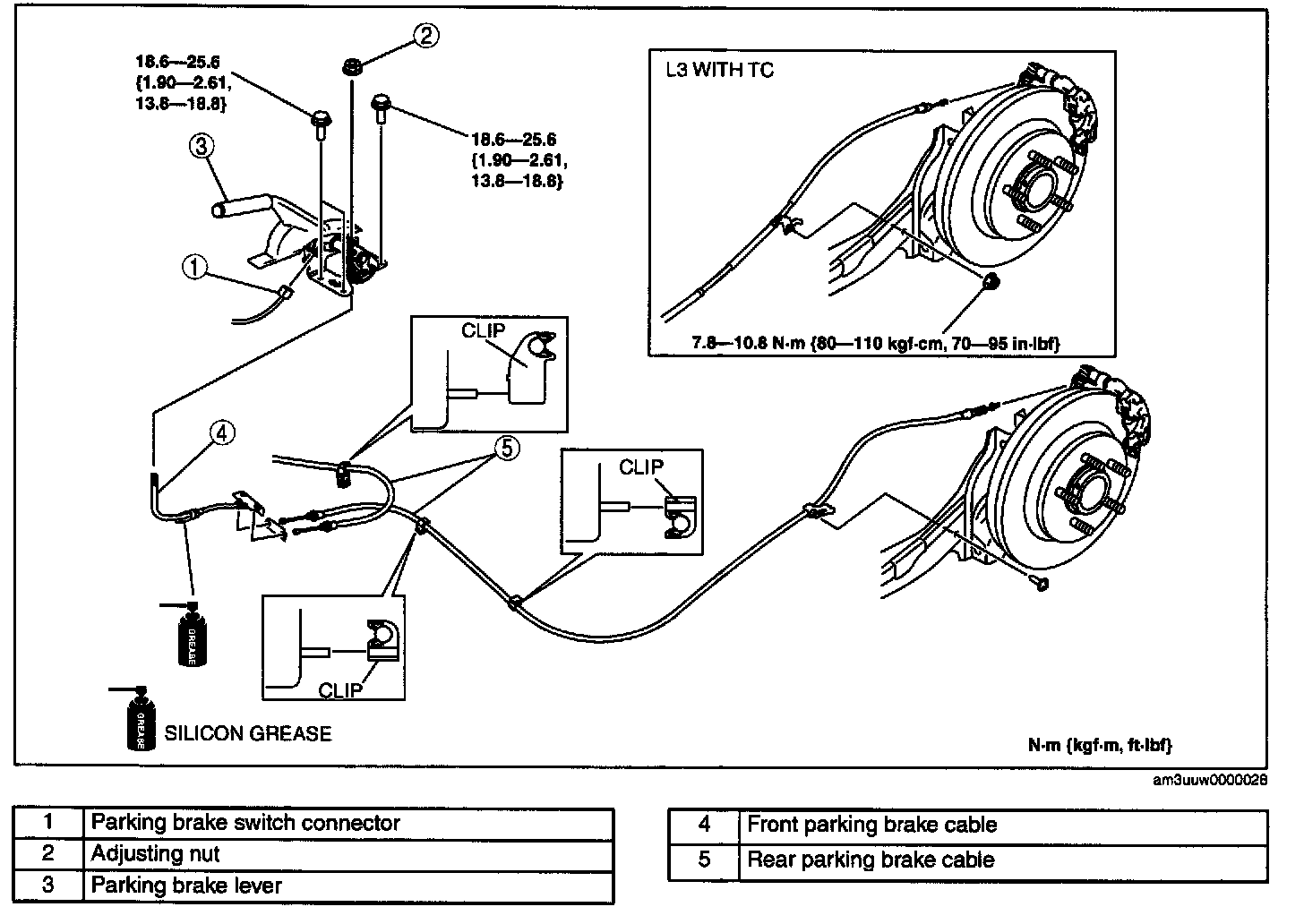

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION.) Testing and Inspection





Rear Parking Brake Cable Installation Note





1. Pass the rear parking brake cable inside the rear ABS wheel-speed sensor wiring harness as shown in the figure.
2. Install the rear parking brake cable.

Front Parking Brake Cable Installation Note

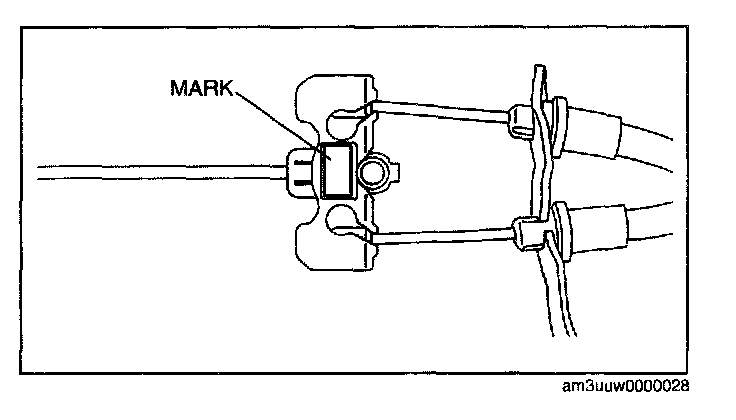

1. Install the front parking brake cable with the mark on the equalizer facing toward the vehicle downside.
