Driver/Vehicle Information Display: Service and Repair

INFORMATION DISPLAY REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts:
1. Side wall
2. Front console
3. Center panel unit
4. LCD unit (with car-navigation system)
5. Dashboard center panel (without car-navigation system)

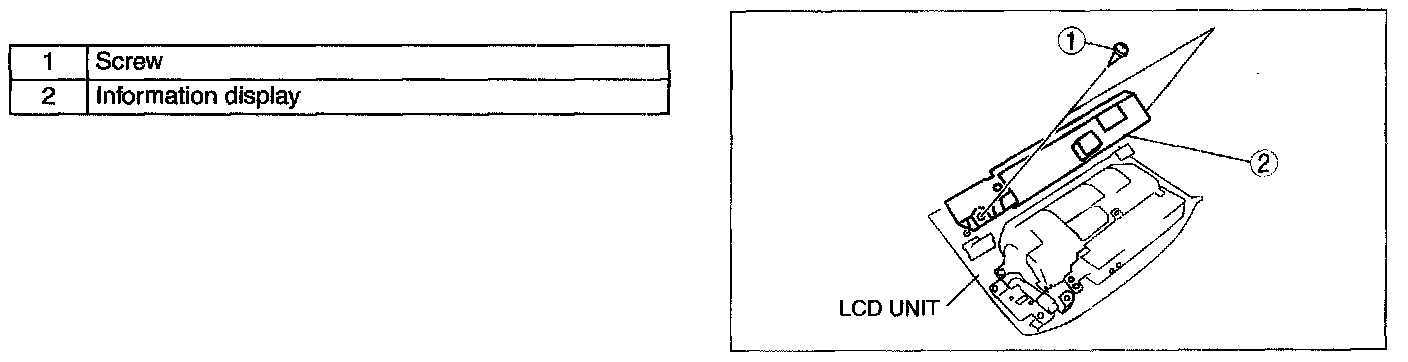

4. Remove in the order indicated in the above table.
5. Install in the reverse order of removal.
