Without Scan Tool

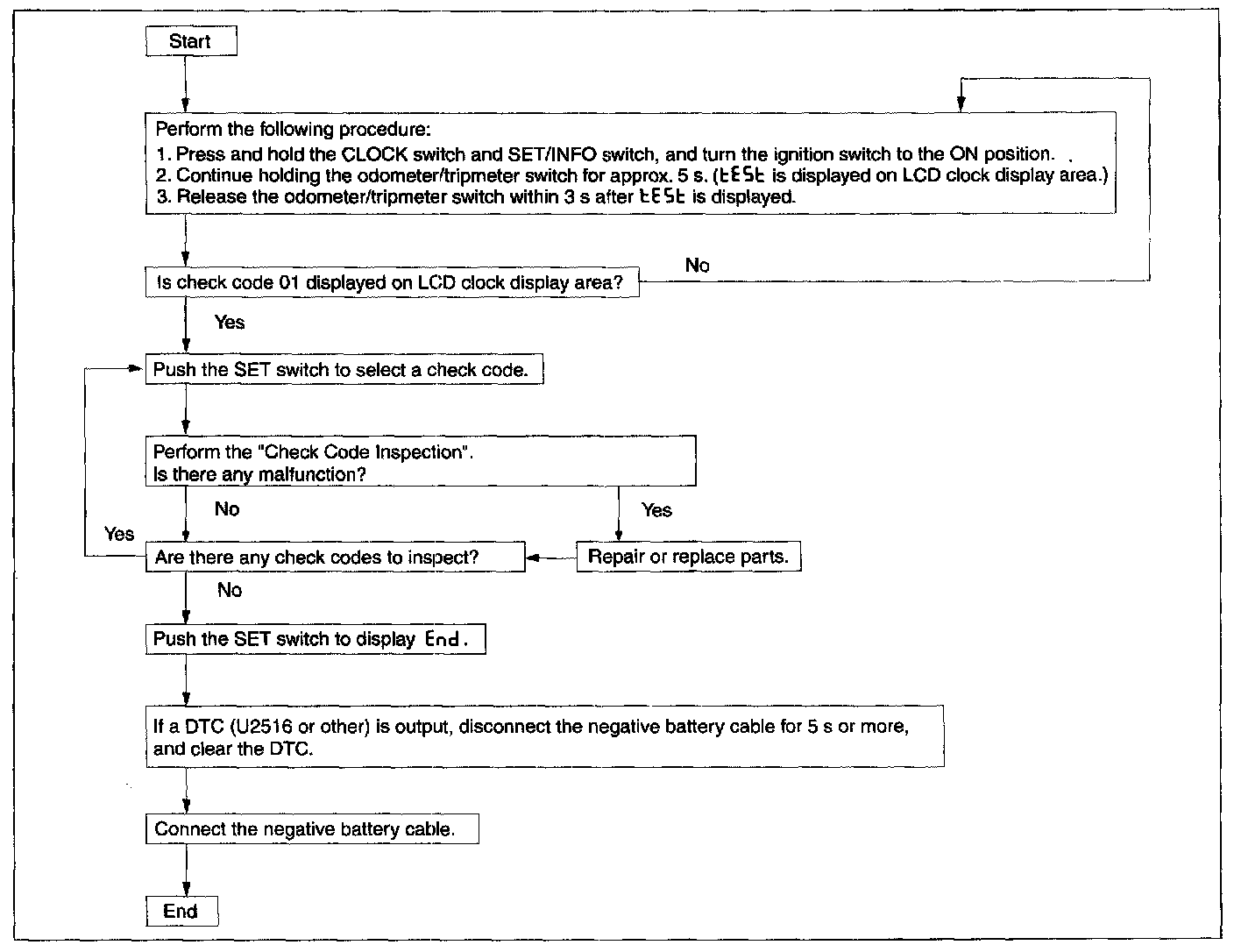

INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE

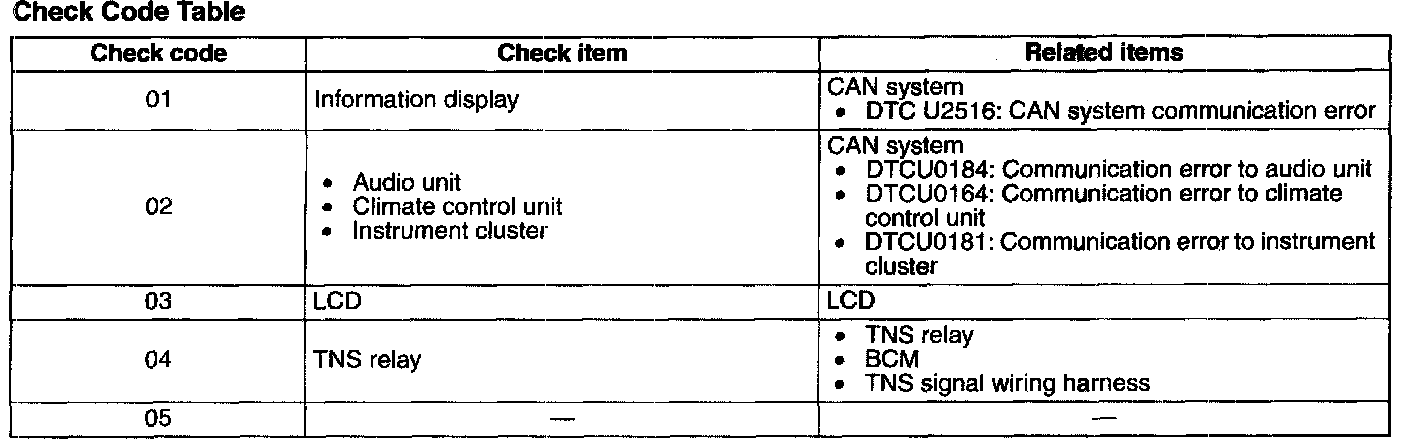

Check Code Table:









NOTE: In this mode, it is possible to verify the items in the chart.

NOTE: The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)
