Home >> Mazda >> 2006 >> 5 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C01 - C04

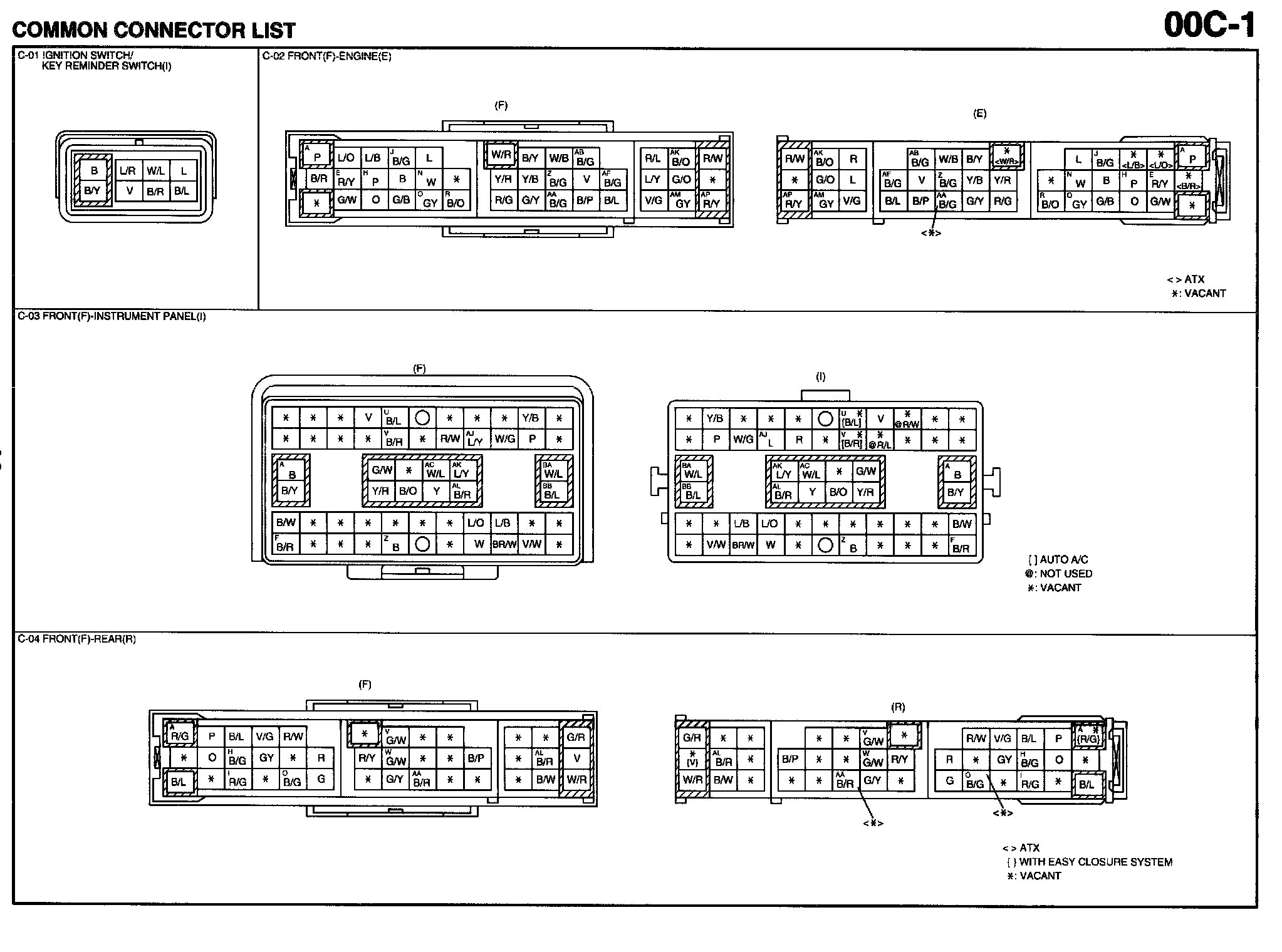

C01 - C04

C01 - C04:
