Home >> Mazda >> 2006 >> 5 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C18 - C22

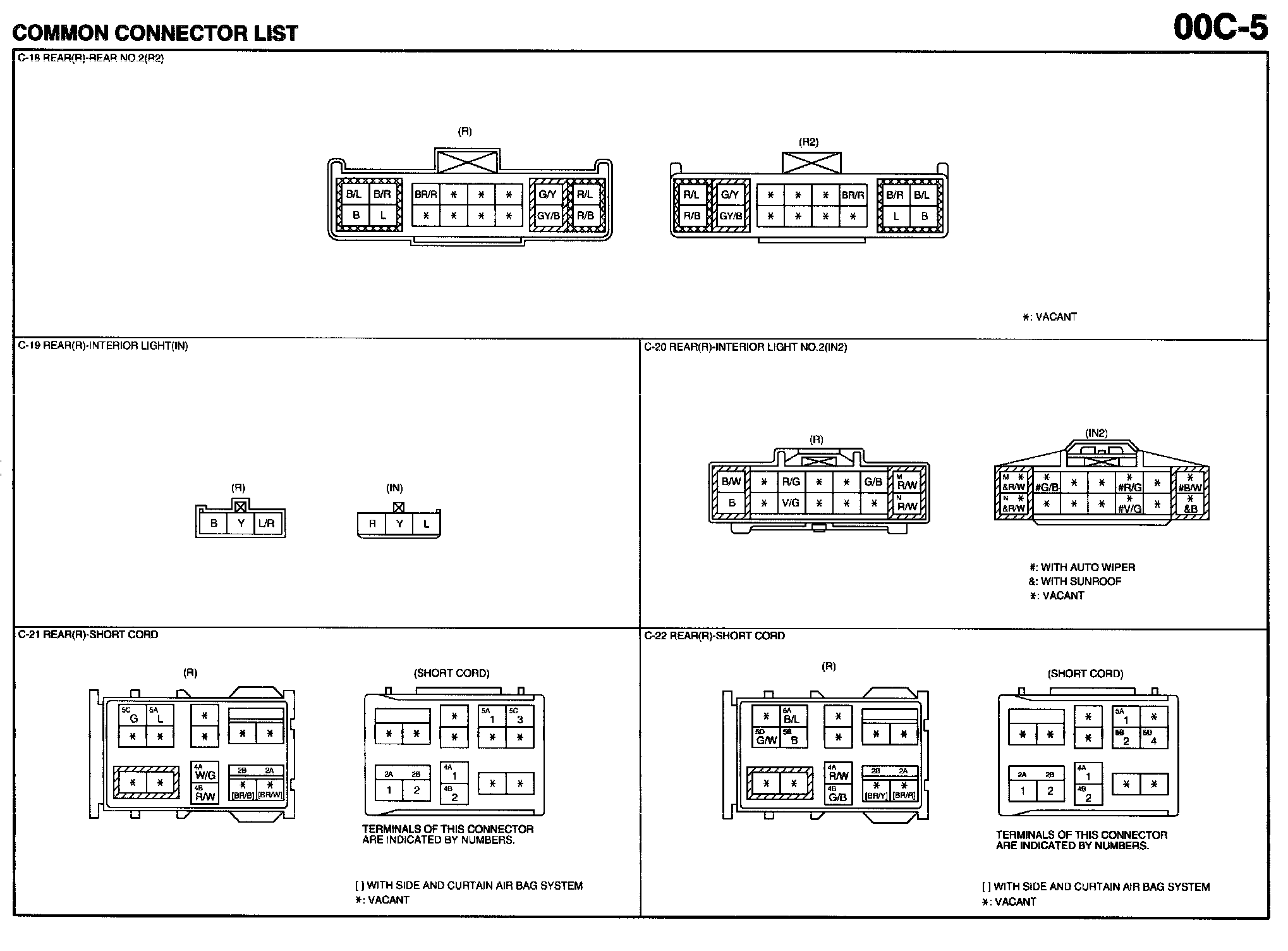

C18 - C22

C18 - C22:
