Heater Core Case: Service and Repair
AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts.
1. Side wall
2. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
3. Selector lever component (ATX)
4. Front console
4. Detach the hood release lever from the lower panel.
5. Remove the front scuff plate. (LH)
6. Remove the front side trim. (LH)
7. Remove the lower panel.
8. Remove the column cover.
9. Remove the shower duct (LH).
10. Remove the airflow mode rod (1).
11. Remove the airflow mode actuator. (Full-auto air conditioner)

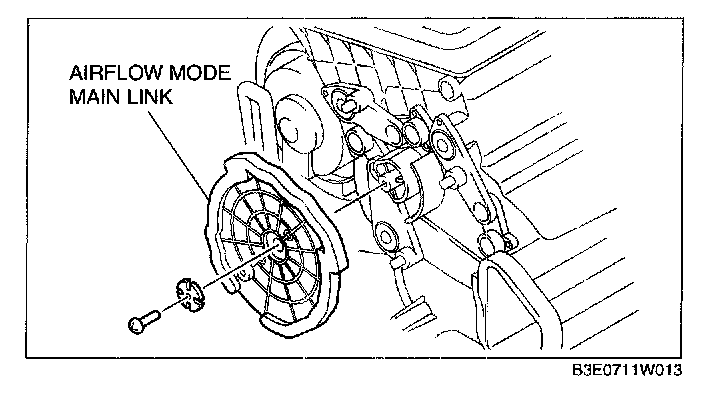

12. Remove the airflow mode main link.
13. Install in the reverse order of removal.
Airflow Mode Main Link Installation Note
CAUTION: Apply only the specified grease to links. Otherwise abnormal noise or improper operation may result.

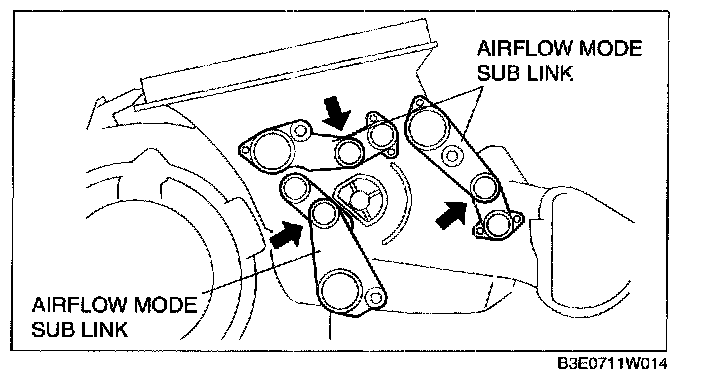

1. Push and hold each airflow mode sub link in the direction of the arrow.
2. Set the airflow mode main link to the A/C unit as shown in the figure.
3. Press the airflow mode main link lightly to the A/C unit it in the direction shown by the arrow, then set the projections of each airflow mode sub link into the grooves of the airflow mode main link.

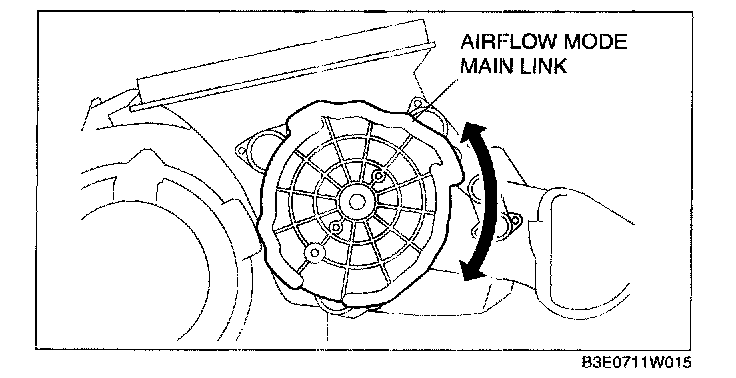

4. Rotate airflow mode main link and verify that each mode is accessed properly.
